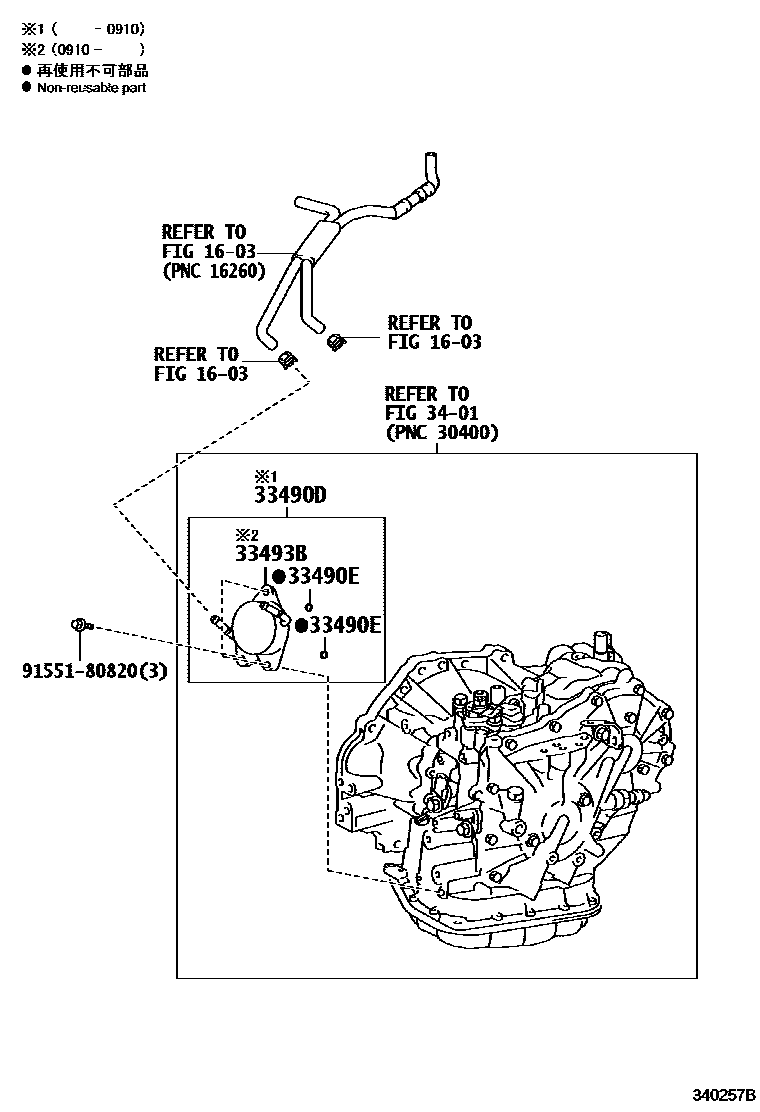

OIL COOLER & TUBE(CVT)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

33490DCOOLER ASSY, TRANSMISSION OIL

main33490-20160iZGR21..CVT200902-200910

33490ERING, O (FOR TRANSMISSION OIL COOLER)

main90301-19020iZGR21..CVT200902-200910

main90301-20012iZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY200910-201710

33493BCOOLER, OIL

main33493-20100iZGR21..CVT200910-201106

main33493-20100iZGR21..RHD..CVT..ENTRY201106-201503

MARK TOYOTA

main33493-52030iZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY201106-201710

MARK DENSO

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

9155180820

main91551-80820

6 parts on this diagram · 1 diagram in section
