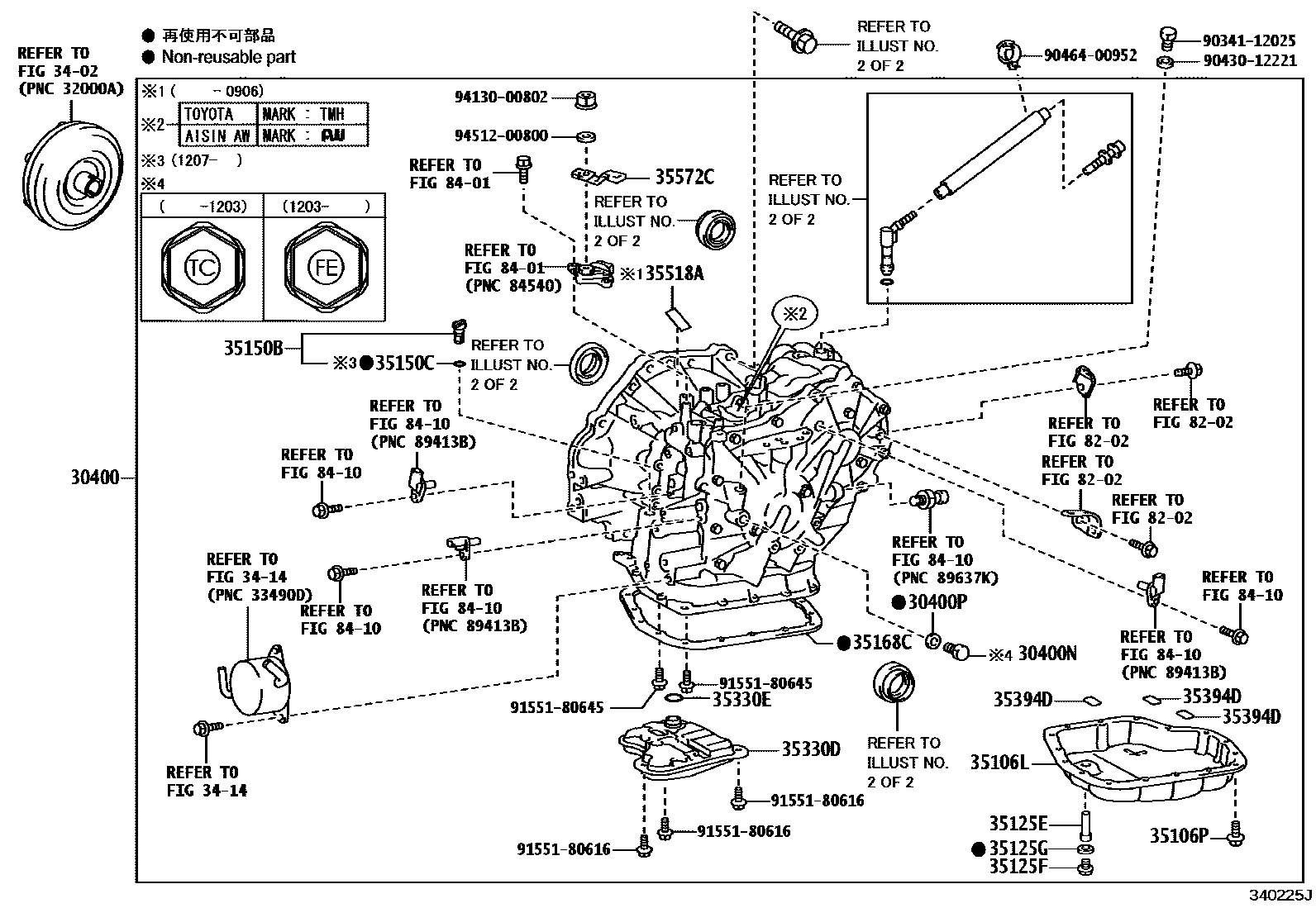

TRANSAXLE ASSY(CVT)

0001 1K311 0002 1K313 0003 1K311 0004 1K313

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-20020iZGR21..RHD..CVT..ENTRY201007-201111

K311,TOYOTA:REFER TO ILL.

main30400-20080iZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY201106-201211

K311,AISIN AW:REF.ILLUST

main30400-20110iZGR21..CVT201503

K313

30400NPLUG, REFILL(CVT)

main90341-18061iZGR21..CVT200902-201007

main90341-18077iZGR21..CVT201211-201503

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iZGR21..CVT200902-201007

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12160iZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY201106-201211

AISIN AW:REF.ILLUST

main35106-12210iZGR21..CVT201503

main35106-20040iZGR21..RHD..CVT..ENTRY201007-201111

TOYOTA:REFER TO ILL.

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173×16iZGR21..RHD..CVT..ENTRY201007-201111

35125ETUBE, OVERFLOW(CVT)

main35125-12420iZGR21..CVT..E;ZGR21..LHD..CVT..ENTRY201106-201211

AISIN AW:REF.ILLUST

main35125-12480iZGR21..CVT201503-201710

main35125-20490iZGR21..CVT201007-201211

TOYOTA:REFER TO ILL.

35125FPLUG, OVERFLOW(CVT)

main90341-12034iZGR21..CVT201007-201211

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iZGR21..CVT200902-201007

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iZGR21..CVT200902-201007

main35150-48010iZGR21..CVT201503

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iZGR21..CVT201211-201503

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12090iZGR21..CVT200902-201007

main35168-12091iZGR21..CVT201402-201404

AISIN AW

35330DSTRAINER ASSY, OIL

main35330-0W080iZGR21..CVT200902-201007

main35330-12050iZGR21..CVT201503-201710

35330ERING, O (FOR OIL STRAINER)

main90301-22014iZGR21..CVT201211-201503

main90301-22019iZGR21..CVT201605-201710

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011×3iZGR21..RHD..CVT..ENTRY201007-201111

35518ALABEL, AUTOMATIC TRANSAXLE INFORMATION, NO.2

main35518-63010iZGR21..CVT200902-200906

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iZGR21..CVT201211-201503

TOYOTA:REFER TO ILL.

main35572-12170iZGR21..CVT201211-201404

AISIN AW:REF.ILLUST

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9034112025

main90341-12025

9043012221

main90430-12221

9046400952

main90464-00952

9155180616

main91551-80616

9155180645

main91551-80645

9413000802

main94130-00802

9451200800

main94512-00800

28 parts on this diagram · 4 diagrams in section
