SPEAKER

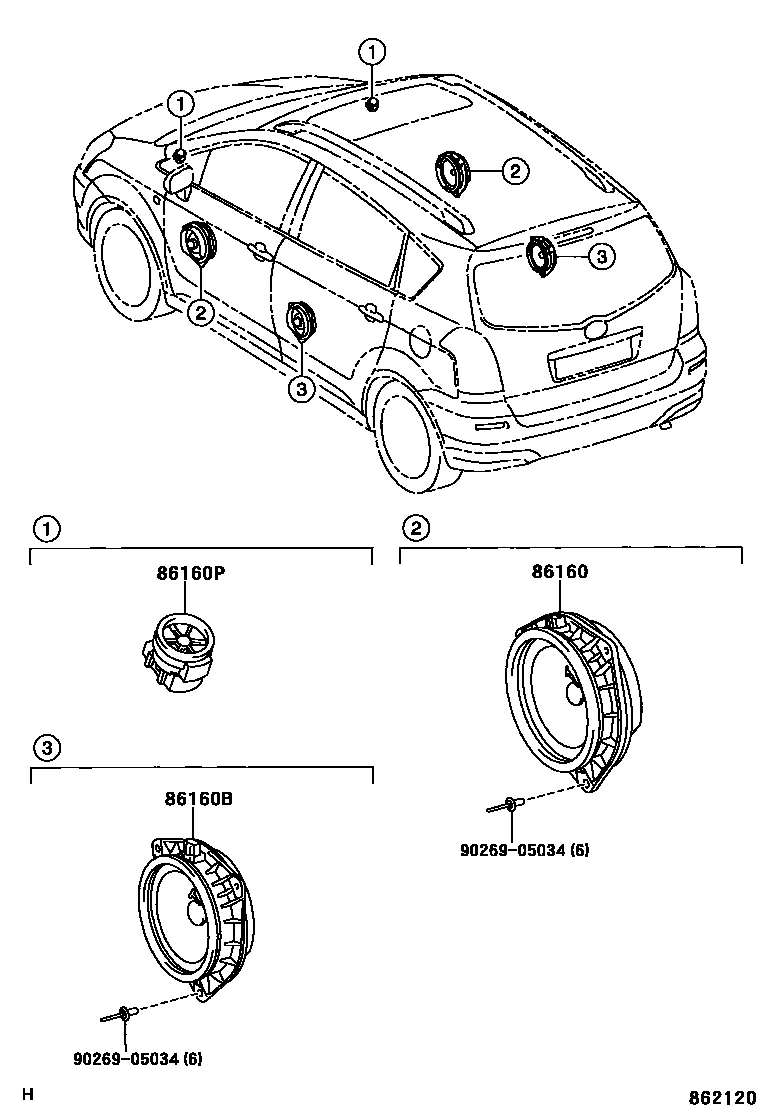

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-0D180×2i200705

main86160-0F020×2i200402-200508

86160BSPEAKER ASSY, REAR

main86160-0D190×2i200705

main86160-0F030×2i200402-200705

86160PSPEAKER ASSY, FRONT NO.2

main86160-02700×2i200705

main86160-0F010×2i200402-200508

9026905034

main90269-05034

4 parts on this diagram · 1 diagram in section
