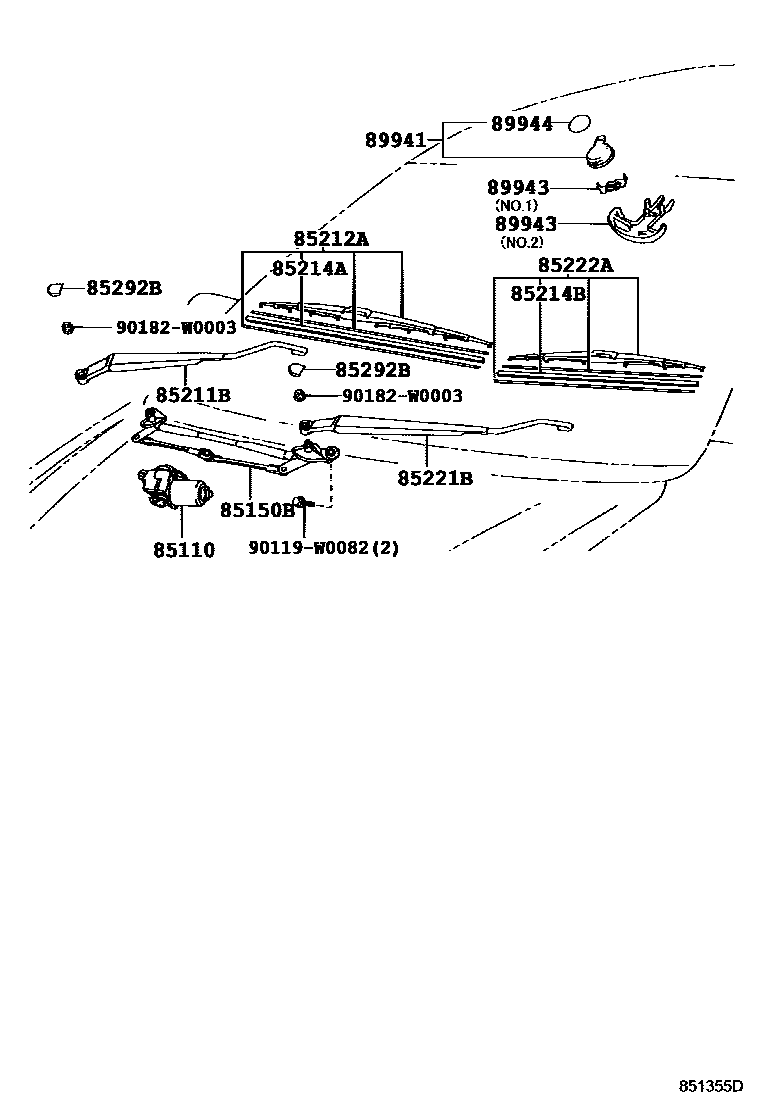

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0F010iAUR10,ZNR1#..RHD200705-200902

main85110-0F020iAUR10,CUR10,ZNR1#..LHD200402-200705

85150BLINK ASSY, WIPER

main85150-0F010iAUR10,ZNR1#..RHD200705-200902

main85150-0F020iAUR10,ZNR1#..LHD200705-200902

85211BARM, FRONT WIPER, RH

main85211-0F010iCUR10..RHD200402-200508

main85211-0F020iAUR10,ZNR1#..LHD200402-200705

85212ABLADE, FR WIPER, RH

main85212-05080iAUR10,CUR10,ZNR1#..LHD..(DCR,DCRL,HTWC)200402-200610

main85212-05081iAUR10,ZNR1#..LHD200611-200705

main85212-0F010iCUR10..RHD200402-200508

85214ARUBBER, WIPER, RH

main85214-02210iAUR10,CUR10,ZNR1#..LHD..(DCR,DCRL,HTWC)200402-200610

main85214-02211iAUR10,ZNR1#..LHD200611-200705

main85214-0F020iCUR10..RHD200402-200508

85214BRUBBER, WIPER, LH

main85214-02210iAUR10,CUR10,ZNR1#..RHD200402-200610

main85214-02211iAUR10,ZNR1#..RHD200705

main85214-0F020iAUR10,ZNR1#..LHD200705

85221BARM, FRONT WIPER, LH

main85221-0F010iCUR10..RHD200402-200508

main85221-0F020iAUR10,ZNR1#..LHD200402-200705

85222ABLADE, FR WIPER, LH

main85222-0F010iCUR10..LHD200402-200508

main85222-0F020iAUR10,CUR10,ZNR1#..RHD200402-200610

main85222-0F021iAUR10,ZNR1#..RHD200611-200705

85292BCAP, FRONT WIPER ARM HEAD

main85292-0F010×2iAUR10,ZNR1#200705

89941SENSOR, RAIN

main89941-05010iAUR10,ZNR1#..SOL; AUR10,ZNR1#..SOL..(DCR,DCRE,HTWC); AUR10..DCRL200705

LUNA PACKAGE; SPORT MID PACKAGE

89943COVER, RAIN SENSOR

main89943-05010iAUR10,ZNR1#..SOL; AUR10,ZNR1#..SOL..(DCR,DCRE,HTWC); AUR10..DCRL200705

LUNA PACKAGE,NO.1; NO.1; SPORT MID PACKAGE,NO.1

main89943-05020iAUR10,ZNR1#..SOL; AUR10,ZNR1#..SOL..(DCR,DCRE,HTWC); AUR10..DCRL200705

LUNA PACKAGE,NO.2; NO.2; SPORT MID PACKAGE,NO.2

89944TAPE, RAIN SENSOR

main89944-05010iAUR10,ZNR1#..SOL200402-200705

90119W0082

main90119-W0082

90182W0003

main90182-W0003

14 parts on this diagram · 1 diagram in section
