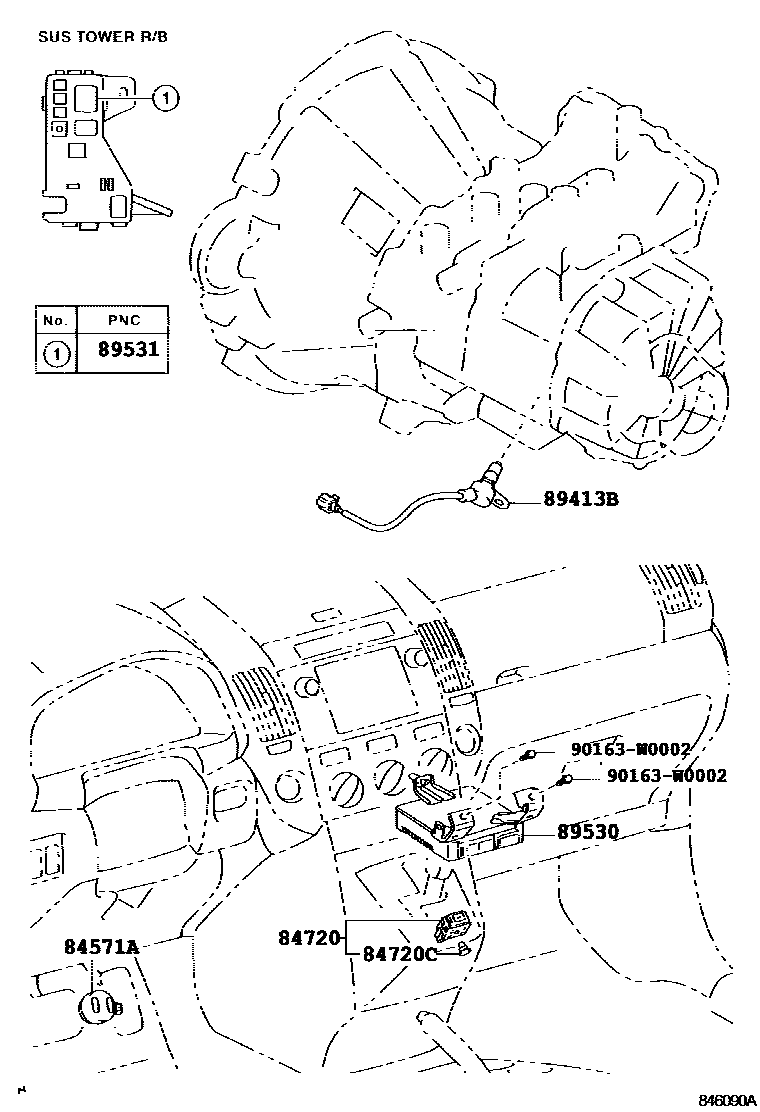

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

84571ASWITCH, KICK DOWN

main84571-12010iZNR11..LHD..5FS200402-200705

84720SWITCH ASSY, PATTERN SELECT

main84720-0F010iZNR11..5FS200402-200705

84720CBULB(FOR PATTERN SELECT SWITCH)

main90010-01079iZNR11..5FS200402-200705

14V 0.06W

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-64010iZNR11..5FS200402-200705

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-64010iZNR11..LHD..5FS200402-200705

main89530-64020iZNR11..RHD..5FS200402-200705

main89530-64030iZNR11..LHD..5FS200705

main89530-64040iZNR11..RHD..5FS200705

89531RELAY, TRANSMISSION CONTROL

main90080-87030iZNR11..5FS200402-200705

90163W0002

main90163-W0002

7 parts on this diagram · 2 diagrams in section
