INTERIOR LAMP

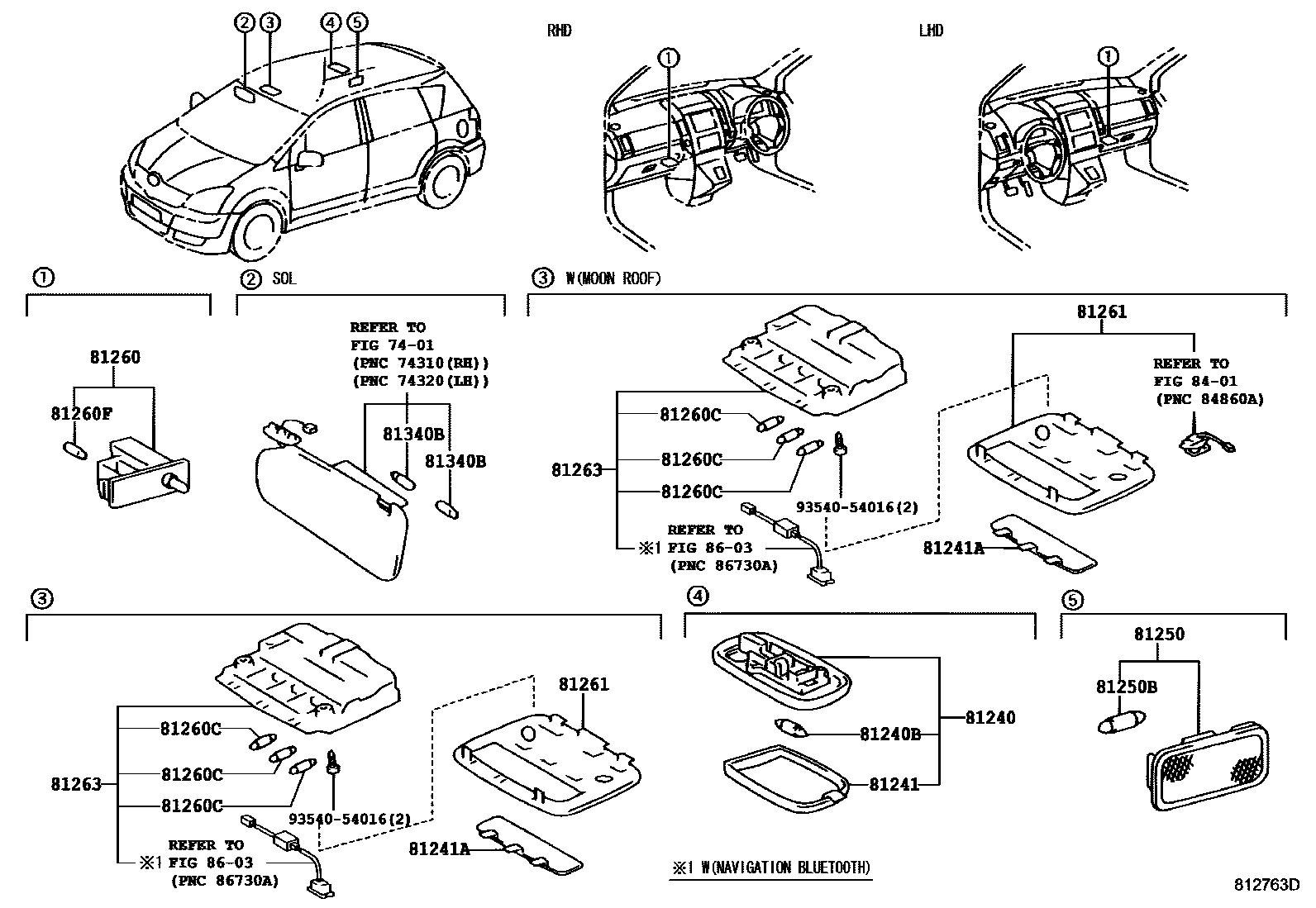

Parts diagram

7401ARMREST & VISOR

→ Go to FIG 74-01

81240LAMP ASSY, ROOM, NO.1

main81240-12070-B0i200705-200902

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011i200402-200508

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12070i200402-200508

81241ALENS, ROOM LAMP, NO.2

main81363-05010i200402-200508

81250LAMP ASSY, ROOM, NO.2

main81330-05020i200402-200408

main81330-05021i200409-200508

81250BBULB, ROOM LAMP, NO.2

main90080-81049i200402-200409

12V 5W

main90981-WE002i200409-200508

12V 5W

81260LAMP ASSY, GLOVE BOX

main81260-13040i200402-200705

81260CBULB(FOR MAP LAMP)

main90080-81049×3i200402-200408

12V 5W

main90981-WE002×3i200409-200508

12V 5W

81260FBULB(FOR GLOVE BOX LAMP)

main90981-11018i200402-200508

12V 1.2W W/O SOCKET

81261LENS AND COVER, MAP LAMP

main81261-05060-B0i200402-200507

LT.GRAY,TRIM1#

main81261-05220-B0i200705-200902

LT.GRAY,TRIM1#

main81261-0F020-B0i200402-200705

SUN ROOF & MOON ROOF-WITH,LT.GRAY,TRIM1#

81263BODY, MAP LAMP

main81263-05230-B0i200705-200902

LT.GRAY,TRIM1#

main81263-0F010-B0i200402-200408

LT.GRAY,TRIM1#

main81263-0F011-B0i200409-200507

LT.GRAY,TRIM1#

main81263-0F020-B0i200402-200408

SUN ROOF & MOON ROOF-WITH,LT.GRAY,TRIM1#

main81263-0F021-B0i200409-200705

SUN ROOF & MOON ROOF-WITH,LT.GRAY,TRIM1#

main81263-0F030-B0i200705-200803

AUDIO-NAVIGATION BLUETOOTH,LT.GRAY,TRIM1#

main81263-0F040-B0i200705-200803

AUDIO-NAVIGATION BLUETOOTH,LT.GRAY,TRIM1#

main81263-0F050-B0i200705-200803

MOON ROOF-WITH&AUDIO-NAVIGATION BLUETOOTH,LT.GRAY,TRIM1#

main81263-0F060-B0i200705-200803

MOON ROOF-WITH&AUDIO-NAVIGATION BLUETOOTH,LT.GRAY,TRIM1#

81340BBULB (FOR VANITY LAMP)

main90080-81112×2i200402-200407

main90981-WB012×4i200408-200705

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

9354054016

main93540-54016

16 parts on this diagram · 1 diagram in section
