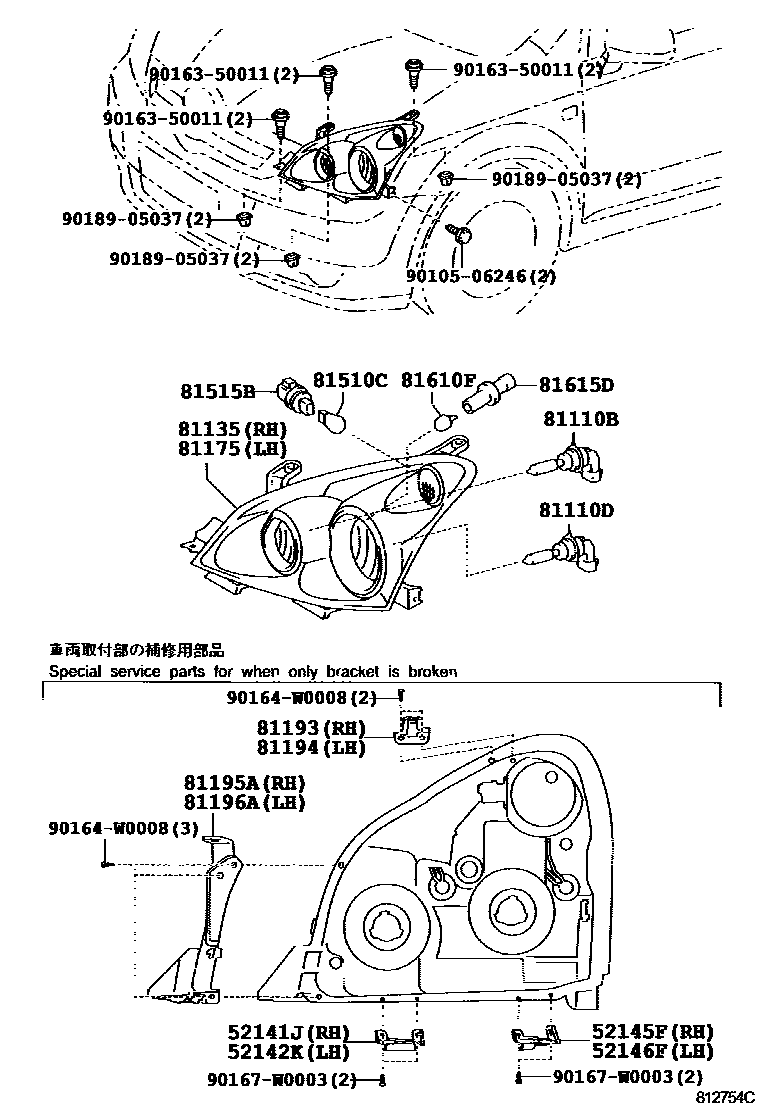

HEADLAMP

0001 1 0002 1

52141JSTAY, FRONT BUMPER, RH

main52141-0F010iAUR10,CUR10,ZNR1#200402-200705

main52141-0F030iAUR10,ZNR1#200705

52142KSTAY, FRONT BUMPER, LH

main52142-0F010iAUR10,CUR10,ZNR1#200402-200705

main52142-0F030iAUR10,ZNR1#200705

52145FSTAY, FRONT BUMPER, NO.2 RH

main52145-0F010iAUR10,CUR10,ZNR1#200402-200705

main52145-0F020iAUR10,ZNR1#200705

52146FSTAY, FRONT BUMPER, NO.2 LH

main52146-0F010iAUR10,CUR10,ZNR1#200402-200705

main52146-0F020iAUR10,ZNR1#200705

81110BBULB(FOR HEADLAMP, NO.1)

main90981-WD008×2iAUR10,CUR10,ZNR1#200402-200705

12V 60W

81110DBULB(FOR HEADLAMP, NO.2)

main90981-WD007×2iAUR10,CUR10,ZNR1#200402-200705

12V 51W

81135UNIT ASSY, HEADLAMP, RH

main81130-0F010supersedes 81130-0F020iCUR10..LHD; CUR10..RHD200402-200508

HEADLAMP AIMING-RH AIMING

main81130-0F060supersedes 81130-0F050iAUR10,ZNR1#..LHD..(DCR,DCRE,HTWC); AUR10,ZNR1#..RHD..(DCR,HTWC)200705

HEADLAMP AIMING-RH AIMING(FOR LHD CAR)

main81130-0F080supersedes 81130-0F070iAUR10..LHD..DCRL; AUR10..RHD..DCRL200705

HEADLAMP AIMING-RH AIMING(FOR LHD CAR)

81175UNIT ASSY, HEADLAMP, LH

main81170-0F010supersedes 81170-0F020iCUR10..LHD; CUR10..RHD200402-200508

HEADLAMP AIMING-RH AIMING

main81170-0F060supersedes 81170-0F050iAUR10,ZNR1#..LHD..(DCR,DCRE,HTWC); AUR10,ZNR1#..RHD..(DCR,HTWC)200705

HEADLAMP AIMING-RH AIMING(FOR LHD CAR)

main81170-0F080supersedes 81170-0F070iAUR10..LHD..DCRL; AUR10..RHD..DCRL200705

HEADLAMP AIMING-RH AIMING(FOR LHD CAR)

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-0F010iAUR10,CUR10,ZNR1#200402-200705

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-0F010iAUR10,CUR10,ZNR1#200402-200705

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-0F010iAUR10,CUR10,ZNR1#200402-200705

main81195-0F020iAUR10,ZNR1#200705

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-0F010iAUR10,CUR10,ZNR1#200402-200705

main81196-0F020iAUR10,ZNR1#200705

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-WF002×2iCUR10200402-200508

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-16280×2iCUR10200402-200508

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iAUR10,ZNR1#200402-200705

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81138-22680×2iAUR10,CUR10,ZNR1#200402-200705

9010506246

main90105-06246

9016350011

main90163-50011

90164W0008

main90164-W0008

90167W0003

main90167-W0003

9018905037

main90189-05037

21 parts on this diagram · 2 diagrams in section
