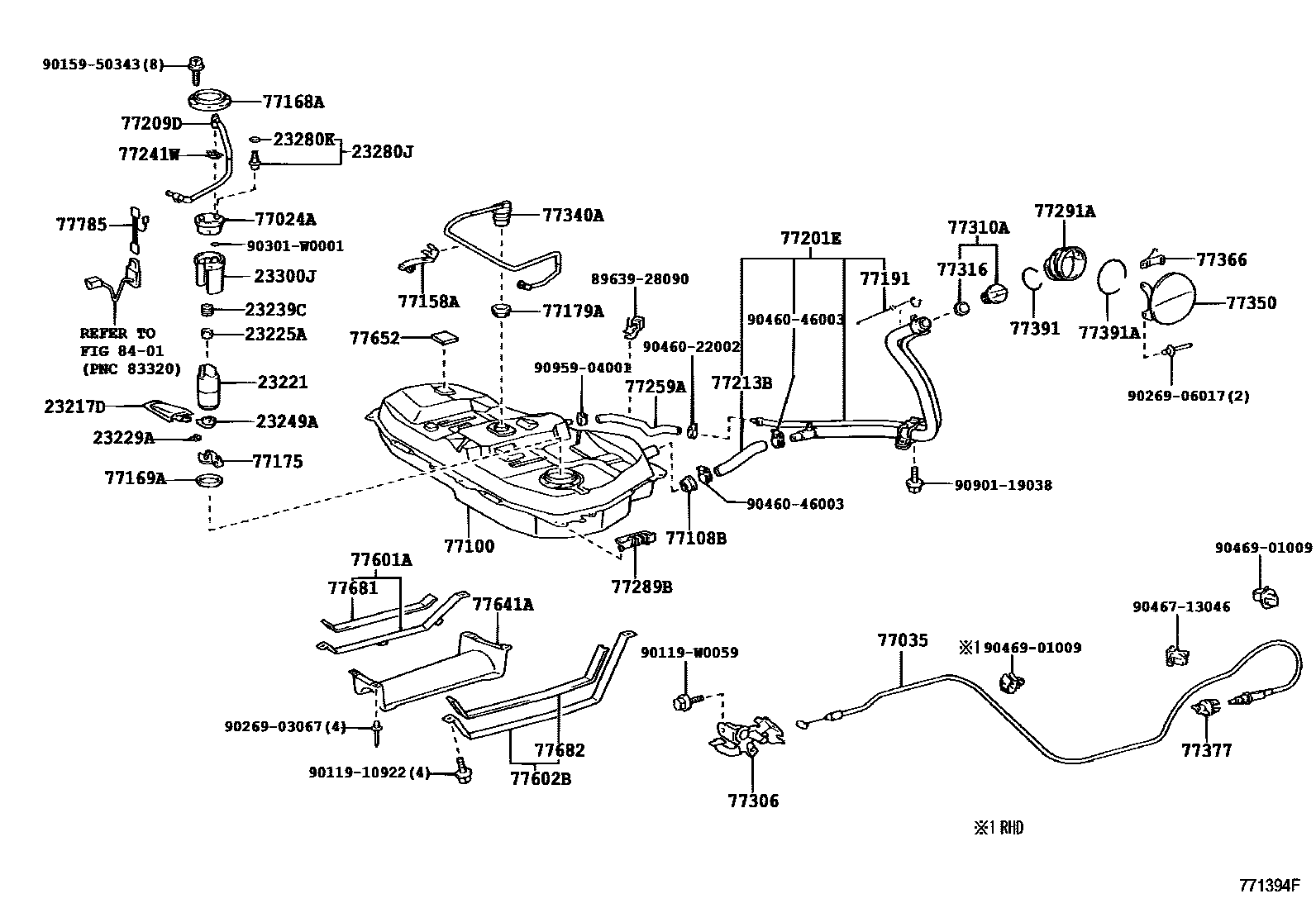

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE

23217DFILTER, FUEL PUMP

main23217-0D070i1ZZFE,3ZZFE..ZNR1#200705

23221PUMP, FUEL

main23221-0D070i1ZZFE..ZNR11200705

main23221-0D080i3ZZFE..ZNR10200402-200705

23225ASPACER, FUEL PUMP

main23225-0D020i1ZZFE,3ZZFE..ZNR1#200402-200409

main23225-21010i1ZZFE,3ZZFE..ZNR1#200705-200902

(J)

23229ACLIP(FOR FUEL PUMP FILTER)

main23229-16010i1ZZFE,3ZZFE..ZNR1#200402-200705

23239CSEAL, FUEL PUMP FILTER

main23239-0D020i1ZZFE,3ZZFE..ZNR1#200705-200902

(L)

main23239-21010i1ZZFE,3ZZFE..ZNR1#200705-200902

(J)

23249ARUBBER, CUSHION(FOR FUEL PUMP)

main23249-74610i1ZZFE,3ZZFE..ZNR1#200402-200705

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-22010i1ZZFE,3ZZFE..ZNR1#200402-200705

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i1ZZFE,3ZZFE..ZNR1#200705

23300JFILTER ASSY, FUEL

main23300-28040i1ZZFE,3ZZFE..ZNR1#200402-200705

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0F010iZNR1#200705

main77024-0F020iAUR10200705

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-0F010iAUR10,ZNR1#..RHD200705

main77035-0F020iAUR10,ZNR1#..LHD200705

77100TANK ASSY, FUEL

main77001-0F010iZNR1#200705

main77001-0F020iAUR10200402-200705

77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK

main77108-12040iAUR10,ZNR1#200402-200705

77158ASUPPORT, TANK SUCTION TUBE

main77158-12030iAUR10200402-200705

NO.1

main77158-68010iAUR10; ZNR1#200402-200705

NO.2

77168APLATE, FUEL TANK VENT TUBE SET

main77168-02010iCUR10200402-200508

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33020iCUR10200402-200508

77175SUPPORT, FUEL SUCTION, NO.2

main77175-0F010iZNR1#200408-200705

(L)

main77175-52020iZNR1#200705

(J)

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010iAUR10,ZNR1#200402-200705

77191WIRE, FUEL TANK EARTH

main77191-02020iZNR1#200402-200705

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77210-0F010iZNR1#200402-200705

main77210-0F011iZNR1#200709-200807

main77210-0F012iZNR1#200808

main77210-0F020iAUR10200705-200709

main77210-0F021iAUR10200709-200807

main77210-0F022iAUR10200808

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0F010iCUR10200402-200508

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-64010iAUR10,CUR10,ZNR1#200402-200705

77241WCLIP, TUBE JOINT

main77241-0F010×2iAUR10; ZNR1#200705

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-64010iZNR1#200402-200705

main77259-64020iAUR10200402-200705

77289BCLAMP, FUEL TUBE, NO.3

main77289-68010iCUR10200402-200508

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0F010iAUR10,ZNR1#200705

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-0F010iCUR10..RHD200402-200508

main77306-0F020iAUR10,ZNR1#..LHD200705

77310ACAP ASSY, FUEL TANK

main77300-28010iZNR1#200402-200705

main77300-60010iCUR10200402-200508

77316GASKET, FUEL TANK CAP

main77316-16010iAUR10,ZNR1#200402-200705

77340AVALVE ASSY, FUEL CUT OFF W/TUBE

main77340-0F010iZNR1#200402-200705

77350LID ASSY, FUEL FILLER OPENING

main77350-64010iAUR10,CUR10,ZNR1#200402-200705

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-21010iCUR10200402-200508

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-02020iCUR10200402-200508

77391RING, FUEL INLET BOX

main77391-12020iCUR10200402-200508

77391ARING, FUEL INLET BOX

main77391-63010iCUR10200402-200508

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-0F010iAUR10,ZNR1#200402-200705

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0F010iCUR10200402-200508

77641APROTECTOR, FUEL TANK, NO.1

main77641-0F010iCUR10200402-200508

77652CUSHION, FUEL TANK, NO.1

main77651-20090×9iCUR10200402-200508

77681SEAT, FUEL TANK BAND, RH

main77681-02030iCUR10200402-200508

77682SEAT, FUEL TANK BAND, LH

main77682-0F010iCUR10200402-200508

77785HARNESS, FUEL PUMP

main77785-0F010iZNR1#200402-200705

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8963928090WIRE, BRAKE CONTROL

main89639-28090

9011910922

main90119-10922

90119W0059

main90119-W0059

9015950343

main90159-50343

9026903067

main90269-03067

9026906017

main90269-06017

90301W0001

main90301-W0001

9046022002

main90460-22002

9046046003

main90460-46003

9046713046

main90467-13046

9046901009

main90469-01009

9090119038

main90901-19038

9095904001

main90959-04001

56 parts on this diagram · 4 diagrams in section
