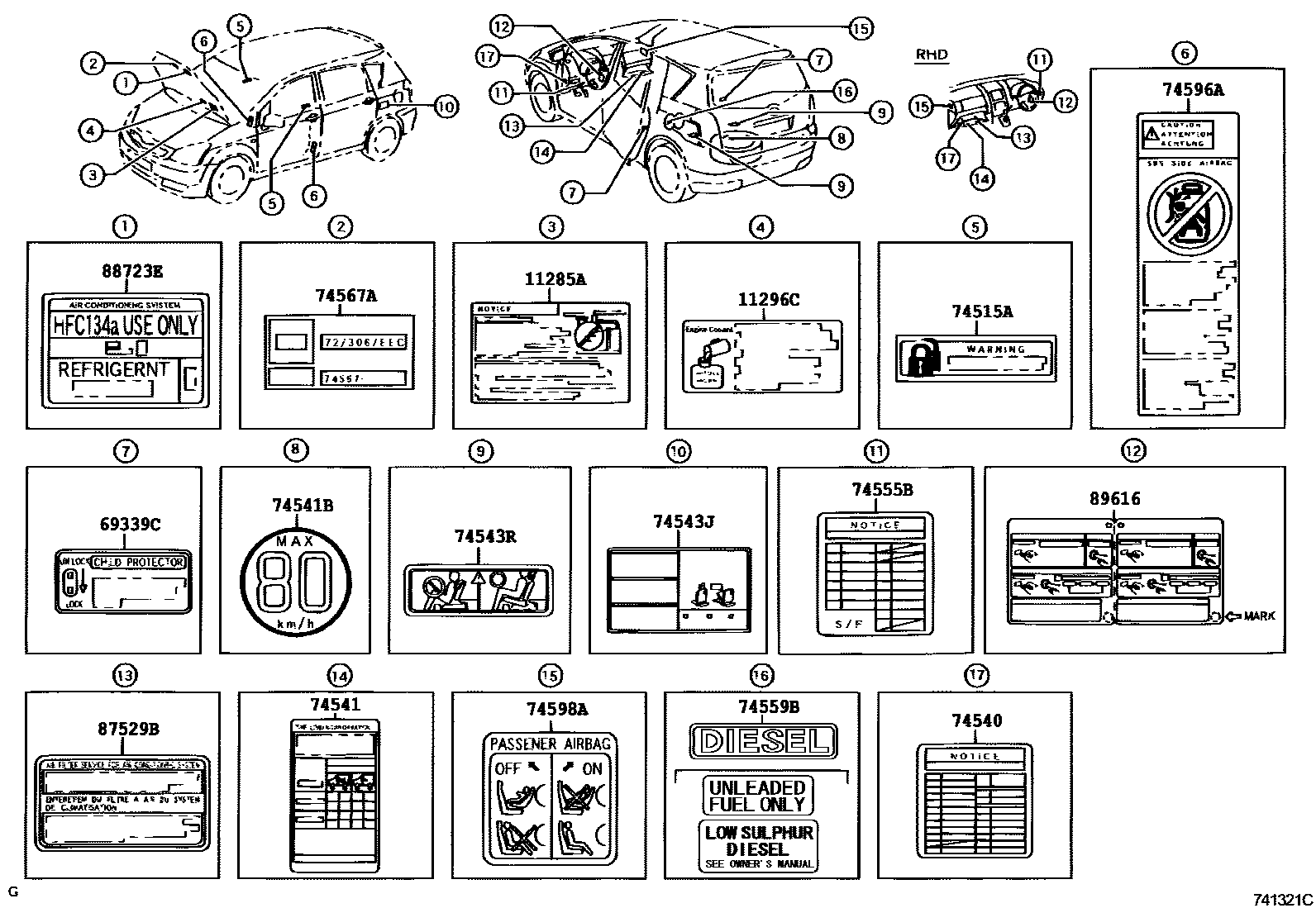

CAUTION PLATE (EXTERIOR & INTERIOR)

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0G010i1CDFTV..CUR10200402-200508

main11285-0R010i2AD#..AUR10200508-200705

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i2AD#,1CDFTV,1ZZFE,3ZZFE..AUR10,CUR10,ZNR1#200402-200703

69339CLABEL, CHILD PROTECTOR INFORMATION

main69339-02030iCUR10200402-200705

74515APLATE, THEFT WARNING

74540PLATE, FUSE BLOCK CAUTION

main82683-0F010iCUR10200402-200705

74541PLATE, TIRE PRESSURE CAUTION

main42661-0F020iZNR1#200402-200705

main42661-0F030iCUR10200402-200508

main42661-0F040iAUR10..DCR200508-200705

main42661-0F050iAUR10..DCRL200508-200705

74541BPLATE, COMPACT SPARE TIRE CAUTION

main42668-0D010iAUR10,CUR10,ZNR1#200402-200705

74543JLABEL, REAR SEAT CAUTION

main74543-0F020iCUR10..07S200402-200705

74543RLABEL, REAR SEAT CAUTION

main74543-0F030iAUR10,CUR10,ZNR1#200402-200902

74555BPLATE, FUSE BLOCK CAUTION

main82683-0F020iCUR10200402-200705

74559BLABEL, FUEL INFORMATION

main74559-02010iCUR10200402-200705

main74559-05010iZNR1#200402-200705

main74559-20120iAUR10..DCRL200508-200705

74567APLATE, E.C.E APPROVED NUMBER

main74567-20261iAUR10..DCR200508-200705

main74567-25041iAUR10..DCRE,DCRL200508-200705

main74567-26250iCUR10200402-200508

74596ALABEL, SIDE AIRBAG CAUTION

main74596-02040iAUR10,ZNR1#200705

main74596-12020iAUR10,CUR10,ZNR1#200402-200705

74598ALABEL, PASSENGER AIRBAG CAUTION

main74598-0F010iCUR10200402-200705

87529BLABEL, A/C FILTER INFORMATION

main87529-0D010iAUR10,ZNR1#200402-200705

88723ELABEL, COOLER SERVICE CAUTION

main88733-20020iCUR10..SOL200402-200705

AIR CONDITIONER-MANUAL AIR CONDITIONER(MAKER OPTION)

main88733-20020iAUR10,ZNR1#..SOL200705

AIR CONDITIONER-MANUAL(MAKER OPTION)

89616LABEL, PUSH START INFORMATION

main89616-64010iCUR10200402-200705

main89616-64020iZNR11..5FS200402-200705

17 parts on this diagram · 1 diagram in section
