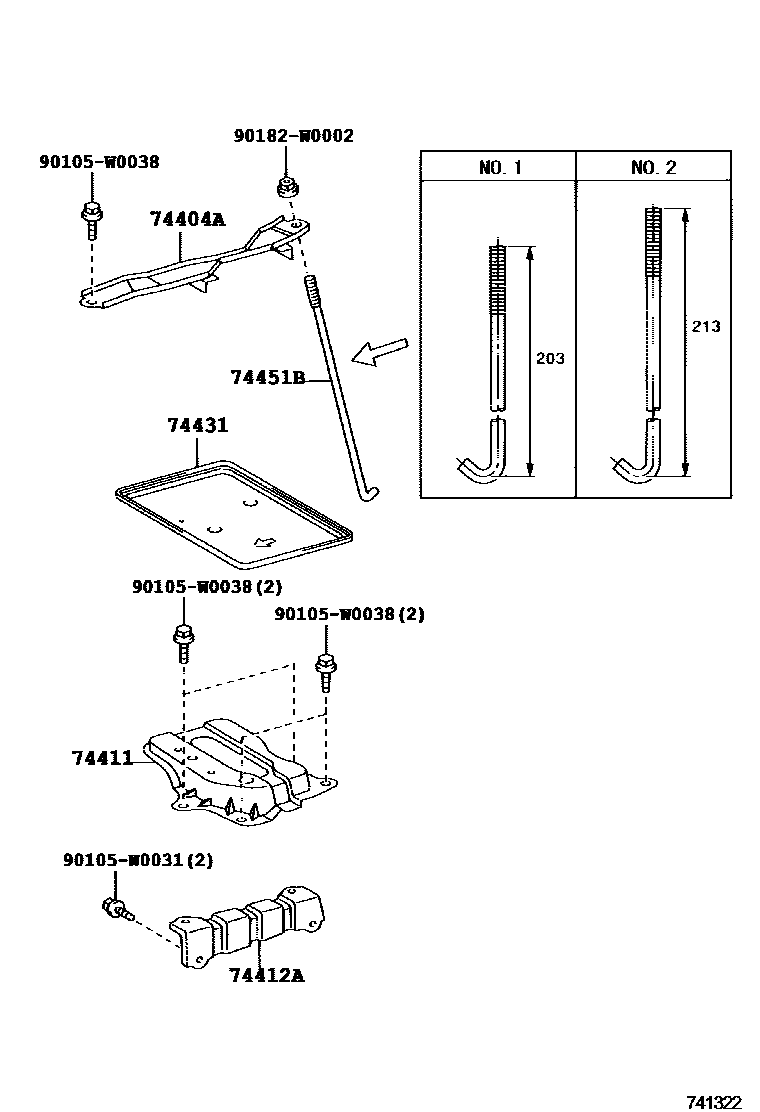

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-0F030iCUR10200402-200508

main74404-0F040iAUR10200705

main74404-0F020iZNR1#; ZNR1#..LHD200402-200705

COLD SPEC; SUB-COLD SPEC

74411CARRIER, BATTERY

main74411-02060iZNR1#200705

(L)

main74411-0F010iAUR10200705

(L)

main74411-12140iZNR1#200402-200705

(J)

74412ACARRIER, BATTERY, NO.2

main74412-02050iCUR10200402-200508

(L)

main74412-12020iAUR10,ZNR1#200402-200705

(J)

74431TRAY, BATTERY

main74431-02070iCUR10200402-200508

main74431-02081iZNR1#200705

main74431-0F010iAUR10200705

74451BBOLT, BATTERY CLAMP

main74451-02010iZNR1#200402-200507

NO.1,(L)

main74451-02012iAUR10,ZNR1#200508-200705

NO.2,(L)

main74451-12130iCUR10200402-200508

NO.2,(J)

main74451-12140iAUR10,ZNR1#200508-200705

NO.2,(J)

90105W0031

main90105-W0031

90105W0038

main90105-W0038

90182W0002

main90182-W0002

8 parts on this diagram · 1 diagram in section
