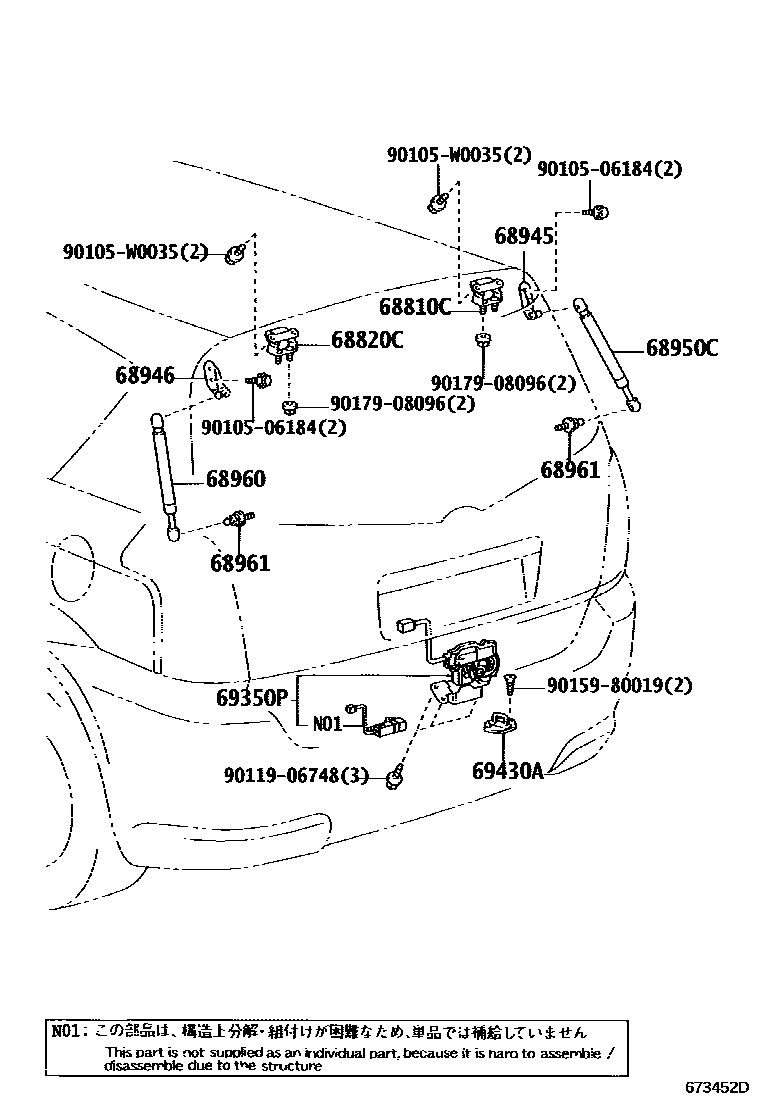

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-02020iAUR10,CUR10,ZNR1#200402-200705

(L)

main68810-21050iAUR10,CUR10,ZNR1#200402-200705

(J)

68820CHINGE ASSY, BACK DOOR, LH

main68810-02020iAUR10,CUR10,ZNR1#200402-200705

(L)

main68810-21050iAUR10,ZNR1#200705-200902

(J)

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-64010iCUR10200402-200508

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-64010iCUR10200402-200508

68950CSTAY ASSY, BACK DOOR, RH

main68950-0F010iCUR10,ZNR1#200402-200411

main68950-0F011iAUR10,CUR10,ZNR1#200412-200704

main68950-0F012iAUR10,ZNR1#200705

68960STAY ASSY, BACK DOOR, LH

main68960-0F010iCUR10,ZNR1#200402-200411

main68960-0F011iAUR10,CUR10,ZNR1#200412-200704

main68960-0F012iAUR10,ZNR1#200705

68961BOLT, BACK DOOR STAY

main68961-05010×2iCUR10200402-200508

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-05050iCUR10,ZNR1#200402-200408

main69350-05051iAUR10,CUR10,ZNR1#200409-200705

main69350-05030iCUR10,ZNR1#..RHD200402-200408

POWER DOOR LOCK-WITH

main69350-05031iAUR10,CUR10,ZNR1#..RHD200409-200705

POWER DOOR LOCK-WITH

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-20160iCUR10200402-200508

9010506184

main90105-06184

90105W0035

main90105-W0035

9011906748

main90119-06748

9015980019

main90159-80019

9017908096

main90179-08096

14 parts on this diagram · 1 diagram in section
