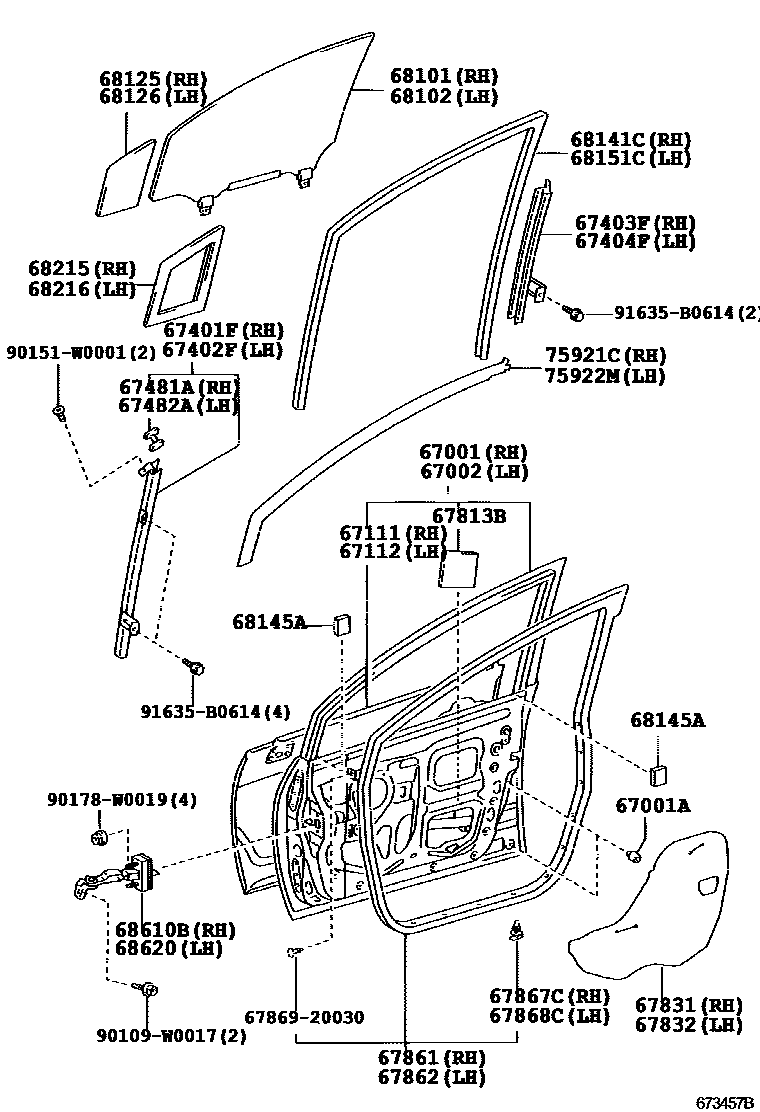

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0F010iAUR10,CUR10,ZNR1#200402-200610

main67001-0F011iAUR10,ZNR1#200611-200705

67001ACUSHION, FRONT DOOR PANEL

main90541-09116×4iAUR10,CUR10,ZNR1#200402-200705

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0F010iAUR10,CUR10,ZNR1#200402-200610

main67002-0F011iAUR10,ZNR1#200611-200705

67111PANEL, FRONT DOOR, OUTER RH

main67111-0F010iAUR10,CUR10,ZNR1#200402-200705

67112PANEL, FRONT DOOR, OUTER LH

main67112-0F010iAUR10,ZNR1#200705

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-64011iCUR10200402-200508

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-64011iCUR10200402-200508

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0F010iCUR10200402-200508

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0F010iCUR10200402-200508

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-64011iAUR10,ZNR1#200402-200705

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-64011iCUR10200402-200508

67813BPACKING, DOOR PROTECTOR

main67817-47010×2iAUR10,ZNR1#200705

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0F010iCUR10200402-200508

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0F010iAUR10,ZNR1#200705

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0F010iCUR10200402-200508

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0F010iCUR10200402-200508

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-02020×16iCUR10200402-200508

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-02020×16iCUR10200402-200508

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0F010iAUR10,CUR10,ZNR1#200402-200705

*TEM,T=3.5,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0F010iAUR10,CUR10,ZNR1#200402-200705

*TEM,T=3.5,GREEN

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0F010iCUR10200402-200508

*TEM,T=3.5,GREEN

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0F010iCUR10200402-200508

*TEM,T=3.5,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-0F010iCUR10200402-200508

68145ACUSHION, FRONT DOOR WINDOW

main69759-12110×4iCUR10200402-200508

68151CRUN, FRONT DOOR GLASS, LH

main68151-0F010iCUR10200402-200508

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-0F010iCUR10200402-200508

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-0F010iCUR10200402-200508

68610BCHECK ASSY, FRONT DOOR, RH

main68610-64010iCUR10200402-200508

68620CHECK ASSY, FRONT DOOR, LH

main68620-64010iCUR10200402-200508

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0F010iCUR10200402-200508

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0F010iCUR10200402-200508

6786920030PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-20030

90109W0017

main90109-W0017

90151W0001

main90151-W0001

90178W0019

main90178-W0019

91635B0614

main91635-B0614

36 parts on this diagram · 2 diagrams in section
