MAT & CARPET

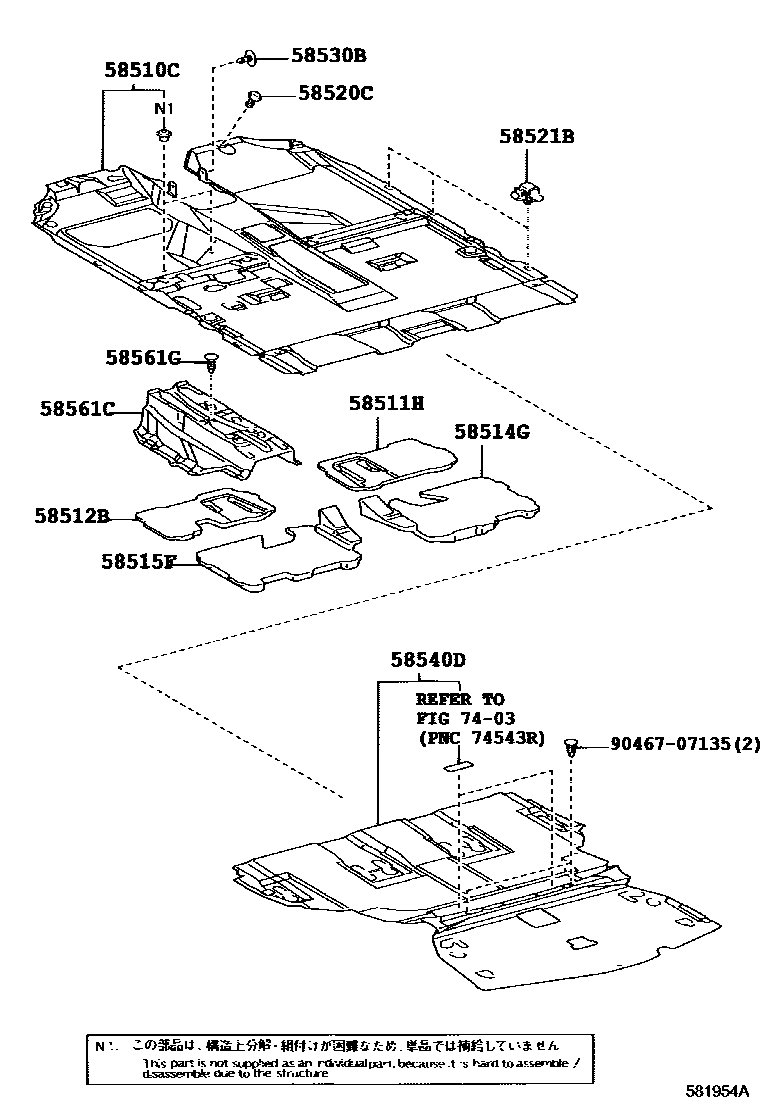

Parts diagram

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-0F010-B0i200402-200405

DK.GRAY,TRIM1#

main58510-0F011-B0i200705-200902

DK.GRAY,TRIM1#

main58510-0F020-B0i200402-200405

DK.GRAY,TRIM1#

main58510-0F021-B0i200705-200902

DK.GRAY,TRIM1#

main58510-0F030-B0i200402-200405

DK.GRAY,TRIM1#

main58510-0F031-B0i200705-200902

DK.GRAY,TRIM1#

58511HMAT, FLOOR, FRONT RH

main58511-0F010i200402-200508

58512BMAT, FLOOR, FRONT LH

main58512-0F010i200402-200705

58514GMAT, FLOOR, REAR RH

main58514-0F010i200402-200508

main58514-0F020i200402-200508

COLD SPEC

58515FMAT, FLOOR, REAR LH

main58515-0F010i200402-200508

main58515-0F020i200402-200705

COLD SPEC

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06001-B3i200705-200902

DK.GRAY,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-0F010×6i200402-200508

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06020-B6×2i200402-200705

DK.GRAY,TRIM1#

58540DCARPET ASSY, FLOOR, REAR

main58581-0F010-B0i200705-200902

DK.GRAY,TRIM1#; WITHOUT(REAR SEAT)&COLD AREA SPEC,DK.GRAY,TRIM1#

main58581-0F020-B0i200402-200705

COLD SPEC,DK.GRAY,TRIM1#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0F010i200402-200508

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-06020-B6i200705-200902

DK.GRAY,TRIM1#

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9046707135

main90467-07135

13 parts on this diagram · 1 diagram in section
