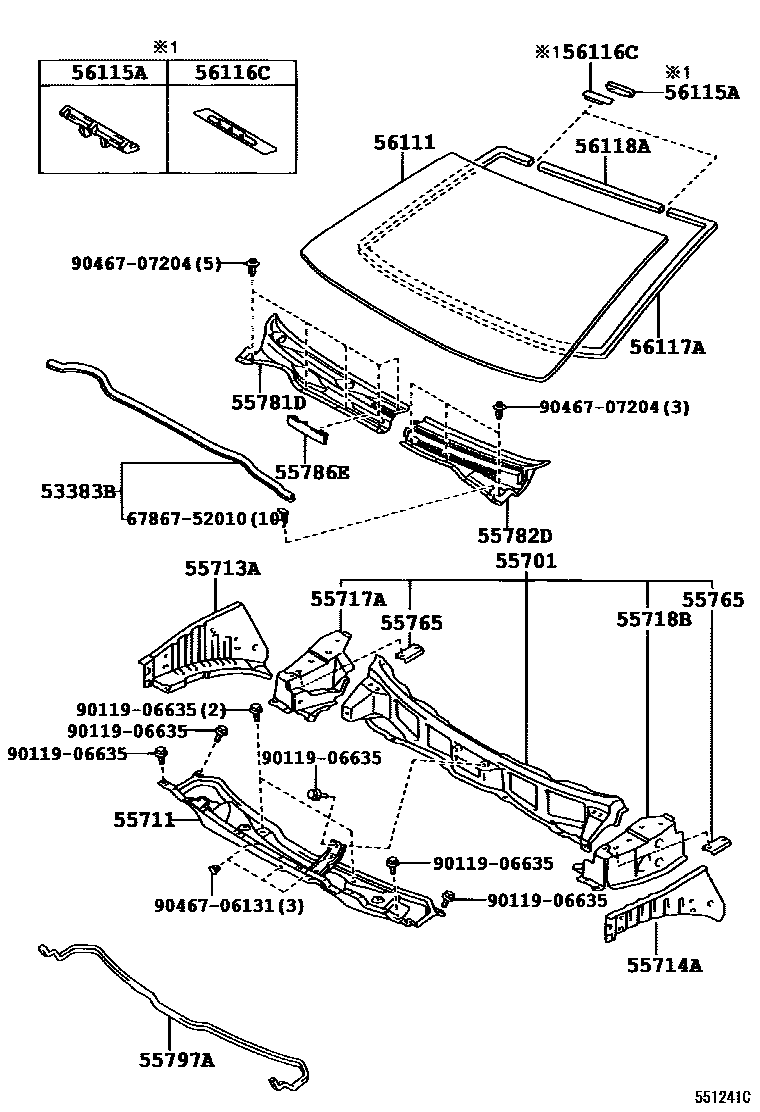

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-0F010iAUR10,ZNR1#200402-200705

55701PANEL SUB-ASSY, COWL

main55700-0F010iAUR10,CUR10,ZNR1#..LHD200402-200705

main55700-0F020iAUR10,ZNR1#..RHD200705-200902

55711PANEL, COWL TOP, OUTER

main55701-0F010iCUR10,ZNR1#..LHD200402-200507

main55701-0F011iAUR10,ZNR1#..LHD200705

main55701-0F020iCUR10,ZNR1#..RHD200402-200507

main55701-0F021iAUR10,ZNR1#..RHD200508-200705

55713APANEL, COWL TOP SIDE, RH

main55713-0F010iAUR10,CUR10,ZNR1#200402-200705

55714APANEL, COWL TOP SIDE, LH

main55714-0F010iAUR10,ZNR1#200705-200902

55717APANEL, COWL TOP SIDE, INNER RH

main55717-0F010iAUR10,ZNR1#200402-200705

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-0F010iCUR10200402-200508

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010×2iAUR10,ZNR1#200402-200705

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-0F030iAUR10,ZNR1#..RHD200402-200705

main55708-0F020supersedes 55708-0F010iCUR10..LHD200402-200508

COLD SPEC

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0F030iCUR10..RHD200402-200508

main55709-0F020supersedes 55709-0F010iCUR10..LHD200402-200508

COLD SPEC

55786EPLATE, COWL TOP VENTILATOR LOUVER

main55786-0F010iAUR10,ZNR1#200705

55797ASEAL, COWL WATER EXTRACT

main55797-0F010iAUR10,ZNR1#200705

56111GLASS, WINDSHIELD

main56101-0F030iAUR10,ZNR1#..TERRA200402-200705

*LAM,T=4.96,GREEN

main56101-0F040iCUR10..SOL200402-200508

*LAM,T=4.96,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2iCUR10200402-200508

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iCUR10200402-200508

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iAUR10,ZNR1#; AUR10,ZNR1#..SOL..(DCR,DCRE,HTWC)200705

L=3500; L=3500,LUNA PACKAGE

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56118-64010iCUR10200402-200508

L=720

6786752010CLIP, DOOR WEATHERSTRIP

main67867-52010

9011906635

main90119-06635

9046706131

main90467-06131

9046707204

main90467-07204

21 parts on this diagram · 2 diagrams in section
