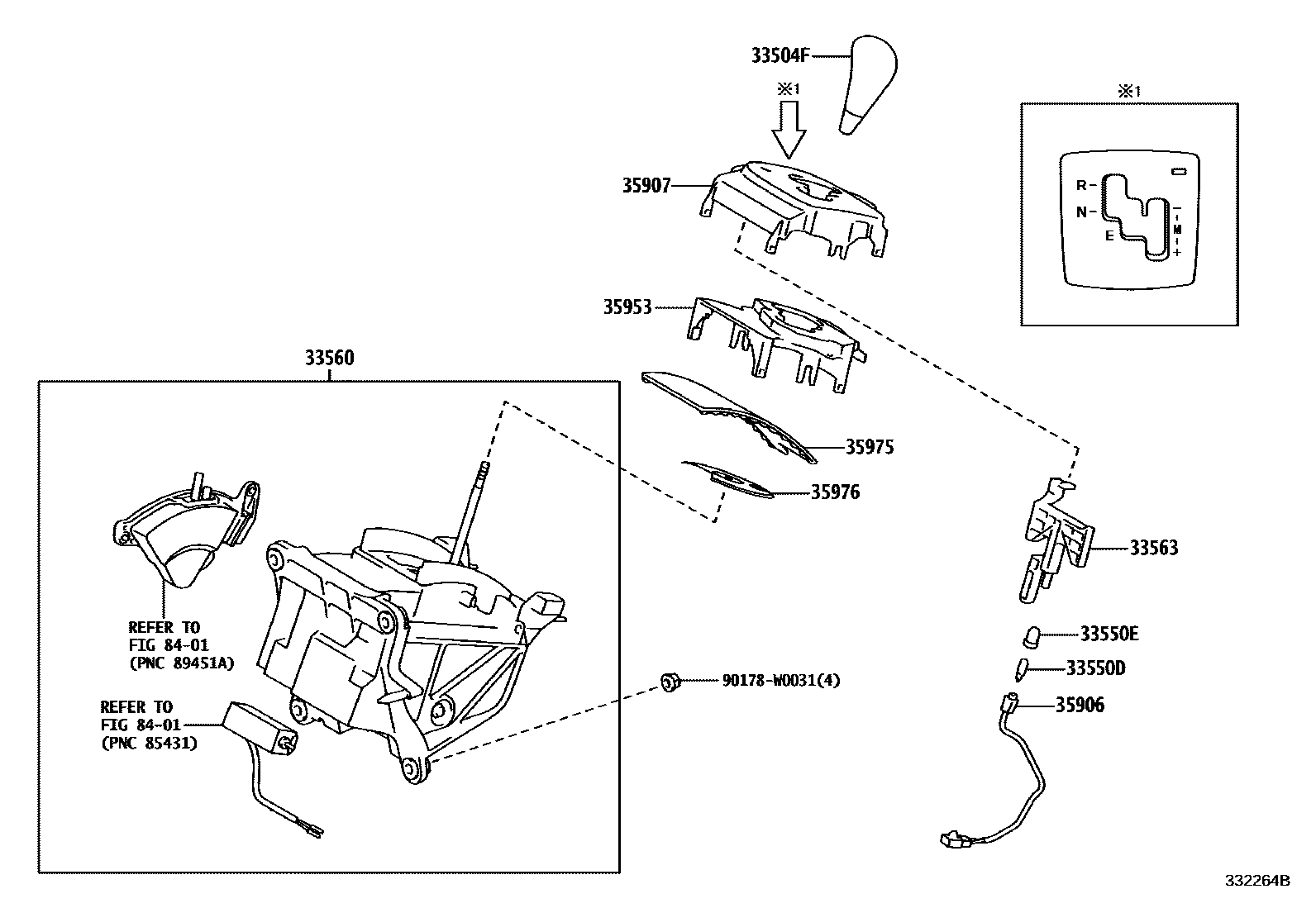

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02030-B0iZNR1#..5F..TERRA200705-200902

DK.GRAY,TRIM1#

main33504-02090-B0iCUR10,ZNR1#..5F..SOL200402-200705

DK.GRAY,TRIM1#

main33504-02100-B0iAUR10..SOL..DCR200508-200705

DK.GRAY,TRIM1#

main33504-02110-B0iAUR10..DCRL200705-200902

DK.GRAY,TRIM1#

main33504-05030-B0iZNR11..5FS..SOL200402-200705

DK.GRAY,TRIM1#

main33504-0F010-B0iAUR10..TERRA200705-200902

DK.GRAY,TRIM1#

main33504-22170-B1iZNR11..5FS..TERRA200402-200705

DK.GRAY,TRIM1#

33550DBULB, POSITION INDICATOR LAMP

main90981-11040iZNR11..5FS200402-200705

12V 2W

33550ECAP, POSITION INDICATOR LAMP

main35956-64010iZNR11..5FS200402-200705

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-64010iZNR11..LHD..5FS200402-200705

main33560-64020iZNR11..RHD..5FS200402-200705

33563BUTTON, SHIFT LOCK RELEASE

main33563-64010iZNR11..LHD..5FS200705

main33563-64020iZNR11..RHD..5FS200402-200705

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-64010iZNR11..5FS200402-200705

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-64010iZNR11..LHD..5FS200402-200705

main35907-64020iZNR11..RHD..5FS200705

35953GUIDE, POSITION INDICATOR LIGHT

main35953-64010iZNR11..LHD..5FS200705

main35953-64020iZNR11..RHD..5FS200402-200705

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-64010iZNR11..LHD..5FS200705

main35975-64040iZNR11..RHD..5FS200402-200705

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35975-64020iZNR11..5FS200402-200705

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178W0031

main90178-W0031

12 parts on this diagram · 3 diagrams in section
