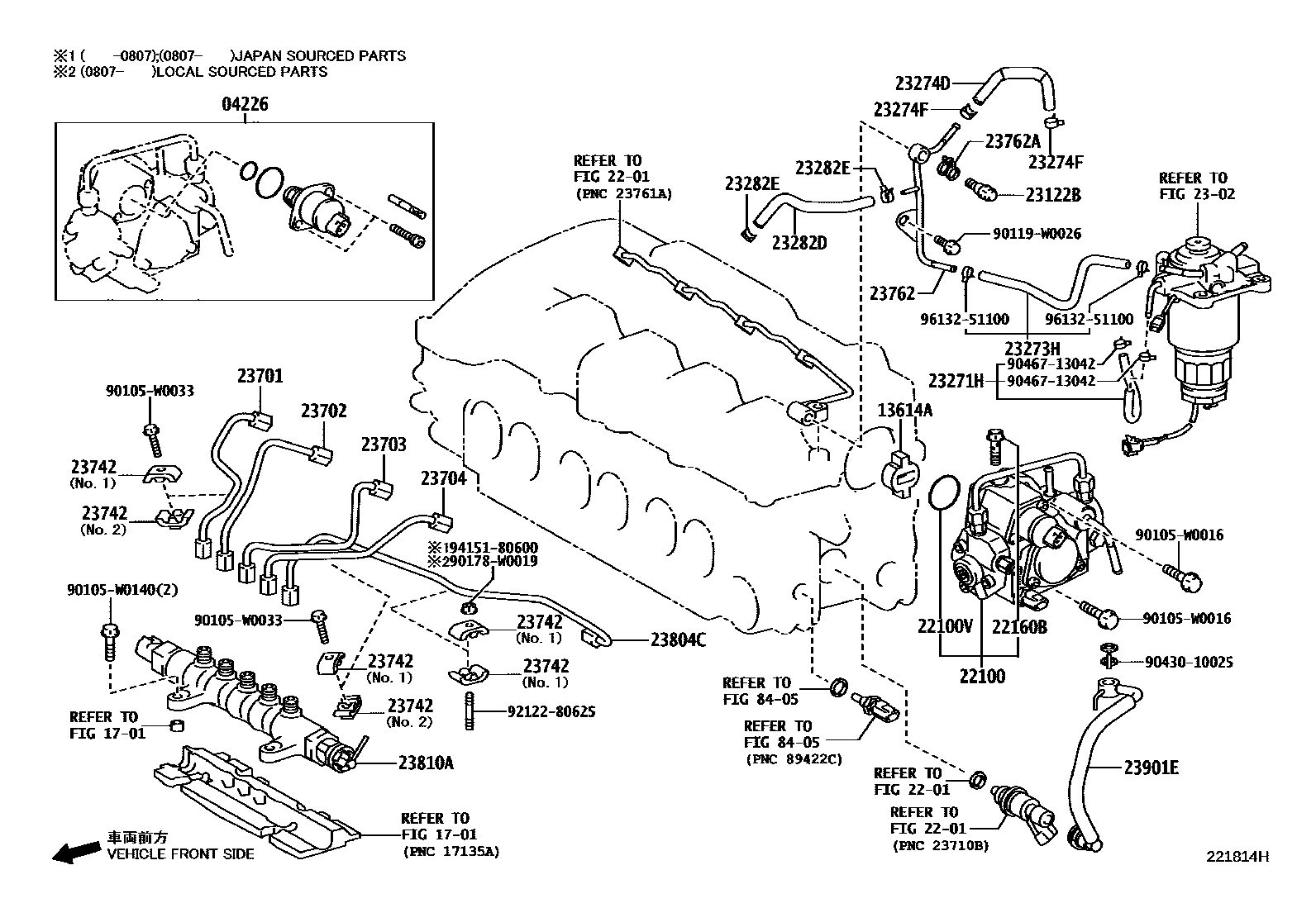

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1

04226VALVE KIT, SUCTION CONTROL

main04226-0L030i2AD#..AUR10200508-200705

13614ACOUPLING, SUPPLY PUMP DRIVE, NO.1

main13614-26010i2AD#..AUR10200508-200705

1701MANIFOLD

→ Go to FIG 17-01

2201INJECTION NOZZLE

→ Go to FIG 22-01

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-0G010i1CDFTV..CUR10200402-200508

main22100-0R010i2ADFTV..AUR10200508-200705

main22100-0R011i2ADFTV..AUR10..DCR200710

main22100-0R020i2AD#..AUR10..DCRE,DCRL200705-200710

main22100-0R021i2AD#..AUR10..DCRE,DCRL200710

22100VRING, O(FOR INJECTION PUMP)

main22193-0R020i2AD#..AUR10200508-200705

22160BSCREW

main22569-0R020i2ADFHV..AUR10200508-200705

2302FUEL FILTER

→ Go to FIG 23-02

23122BVALVE, CHECK

main23769-26010i2ADFHV..AUR10200508-200510

main23769-26020i2ADFHV..AUR10200510-200705

main23769-30010i1CDFTV..CUR10200402-200508

23271HHOSE, FUEL, NO.1

main23271-26040i2AD#..AUR10200508-200705

main23271-27100i1CDFTV..CUR10200402-200508

23273HHOSE, FUEL, NO.2

main23273-26020i2AD#..AUR10200508-200705

main23273-27070i1CDFTV..CUR10200402-200508

23274DHOSE, FUEL, NO.3

main23274-26020i2AD#..AUR10200508-200705

23274FCLIP(FOR FUEL HOSE NO.3)

main96135-51100×2i2AD#..AUR10200508-200705

23282DHOSE, FUEL, NO.4

main23282-26030i2ADFTV..AUR10200705

main23282-26040i2ADFHV..AUR10200508-200705

main23282-27020i1CDFTV..CUR10200402-200508

23282ECLIP(FOR FUEL HOSE NO.4)

main90467-11076×2i2AD#..AUR10200508-200705

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-0R010i2ADFTV..AUR10200705-200901

main23701-0R020i2ADFHV..AUR10200508-200705

main23701-0R030i2ADFHV..AUR10200810

main23701-26030i2ADFTV..AUR10200901

main23701-27020i1CDFTV..CUR10200402-200508

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-0R010i2ADFTV..AUR10200705-200901

main23702-0R020i2ADFHV..AUR10200705-200810

main23702-0R030i2ADFHV..AUR10200810

main23702-26030i2ADFTV..AUR10200901

main23702-27020i1CDFTV..CUR10200402-200508

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-0R010i2ADFTV..AUR10200705-200901

main23703-0R020i2ADFHV..AUR10200705-200810

main23703-0R030i2ADFHV..AUR10200810

main23703-26030i2ADFTV..AUR10200901

main23703-27020i1CDFTV..CUR10200402-200508

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-0R010i2ADFTV..AUR10200705

main23704-0R020i2ADFHV..AUR10200705-200810

main23704-0R030i2ADFHV..AUR10200810

main23704-27020i1CDFTV..CUR10200402-200508

23742CLAMP, INJECTION PIPE, NO.2

main23742-27010×4i2AD#..AUR10200705

NO.1

main23742-58020×2i2AD#..AUR10200508-200705

NO.2

23762PIPE, NOZZLE LEAKAGE, NO.2

main23762-0R011i2ADFTV..AUR10200705

main23762-0R021i2ADFHV..AUR10200508-200705

main23762-27041i1CDFTV..CUR10200402-200508

23762AGASKET, NOZZLE LEAKAGE PIPE NO.2

main90430-10025i2ADFTV..AUR10200508-200705

main90904-30012i2ADFHV..AUR10200705

23804CPIPE SUB-ASSY, FUEL INLET

main23804-0R010i2AD#..AUR10200508-200705

main23804-0R020i2AD#..AUR10200810

main23804-27020i1CDFTV..CUR10200402-200508

23810ARAIL ASSY, COMMON

main23810-0R010i2ADFTV..AUR10200705

main23810-0R020i2ADFHV..AUR10200508-200705

main23810-27030i1CDFTV..CUR10200402-200508

23901ETUBE SUB-ASSY, FUEL

main23901-26010i2AD#..AUR10..DCRE,DCRL200705

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

90105W0016

main90105-W0016

90105W0033

main90105-W0033

90105W0140

main90105-W0140

90119W0026

main90119-W0026

90178W0019

main90178-W0019

9043010025

main90430-10025

9046713042

main90467-13042

9212280625

main92122-80625

9415180600

main94151-80600

9613251100

main96132-51100

36 parts on this diagram · 4 diagrams in section
