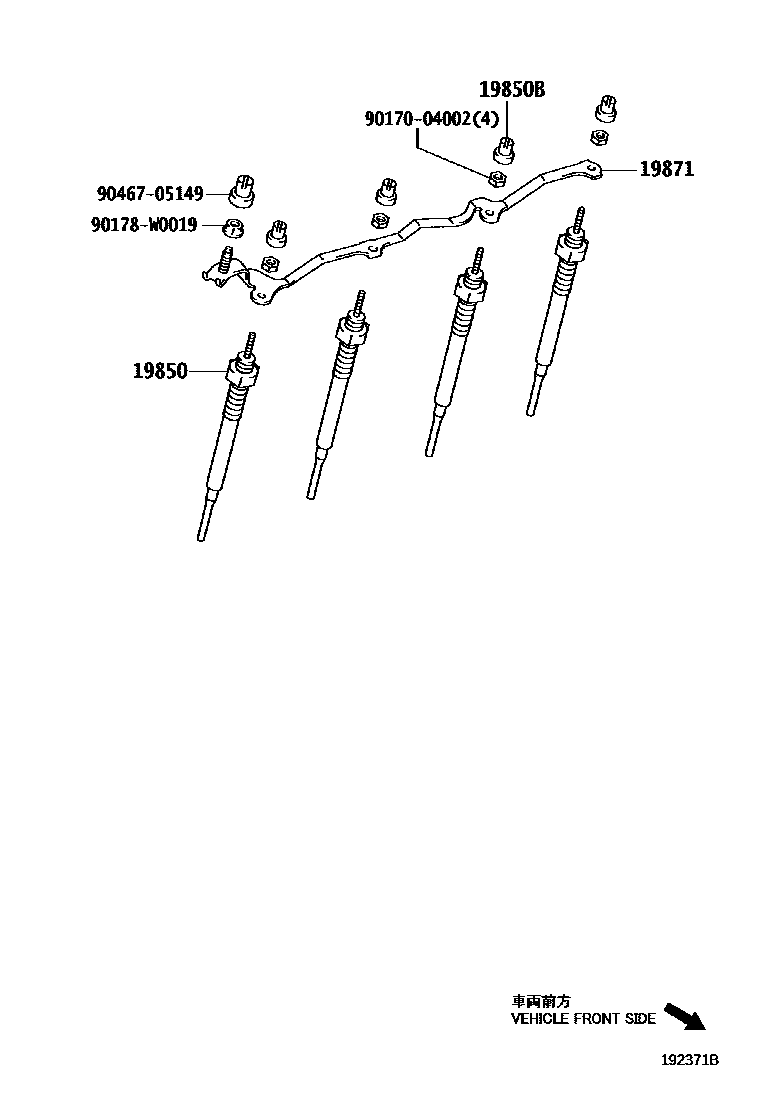

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1

19850PLUG ASSY, GLOW

main19850-0R010×4i2ADFTV..AUR10..DCR200705

*BV-GV=12V-11V

main19850-0R020×4i2ADFHV..AUR10200508-200705

*BV-GV=12V-11V

main19850-0R022×4i2AD#..AUR10..DCRE,DCRL200809

*BV-GV=12V-11V,(L)

main19850-26022×4i2AD#..AUR10..DCRE,DCRL200810

*BV-GV=12V-11V,(J)

main19850-27010×4i1CDFTV..CUR10200402-200508

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i1CDFTV..CUR10200402-200508

19871CONNECTOR, GLOW PLUG NO.1

main19871-26010i2AD#..AUR10200508-200705

main19871-27010i1CDFTV..CUR10200402-200508

9017004002

main90170-04002

90178W0019

main90178-W0019

9046705149

main90467-05149

6 parts on this diagram · 3 diagrams in section
