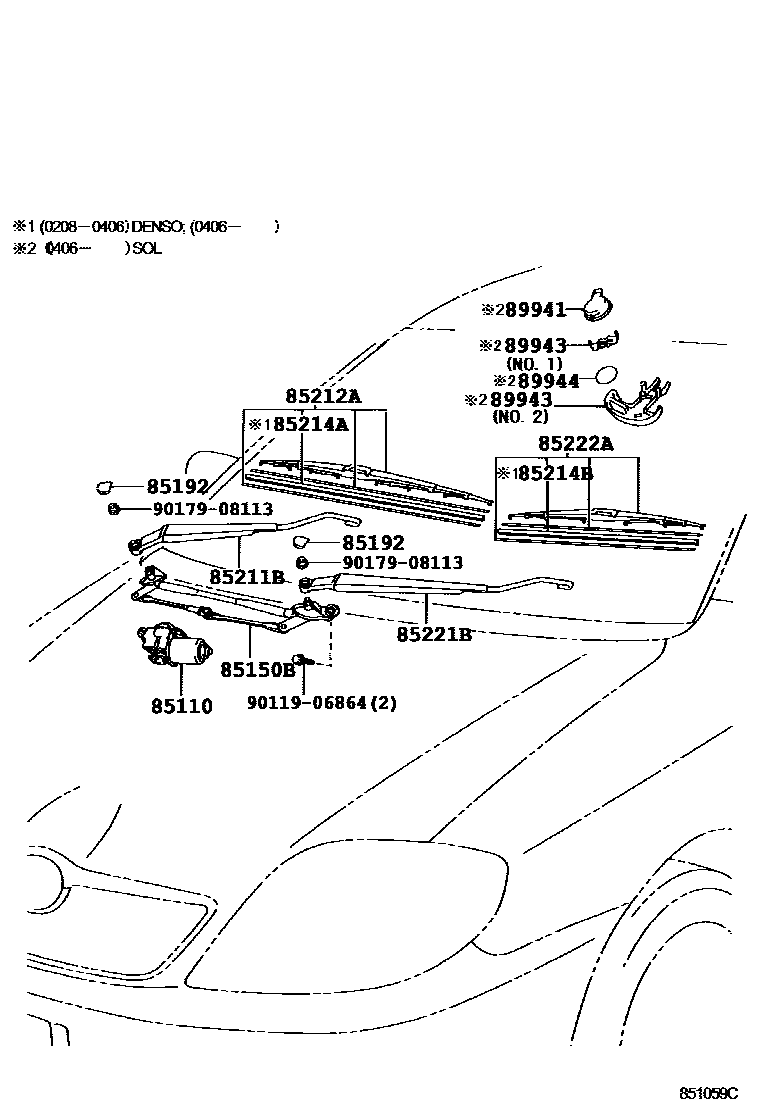

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02090iCDE120,ZZE12#..UKP..RHD200201-200208

main85110-02090iCDE120,ZZE12#..UKP..RHD200208-200406

VALEO

main85110-02100iCDE120,ZZE12#..UKP..LHD200201-200208

main85110-02100iCDE120,ZZE12#..UKP..LHD200208-200406

VALEO

main85110-02140iCDE120,NDE120,ZZE12#..UKP..RHD200406

main85110-02140iCDE120,ZZE12#..UKP..RHD200208-200406

DENSO

main85110-02150iCDE120,ZZE12#..UKP..LHD200208-200406

DENSO

main85110-02150iCDE120,NDE120,ZZE12#..UKP..LHD200406

85150BLINK ASSY, WIPER

main85150-02070iCDE120,ZZE12#..UKP..RHD200201-200208

main85150-02070iCDE120,ZZE12#..UKP..RHD200208-200406

VALEO

main85150-02080iCDE120,ZZE12#..UKP..LHD200201-200208

main85150-02080iCDE120,ZZE12#..UKP..LHD200208-200406

VALEO

main85150-02120iCDE120,NDE120,ZZE12#..UKP..RHD200406

main85150-02120iCDE120,ZZE12#..UKP..RHD200208-200406

DENSO

main85150-02130iCDE120,ZZE12#..UKP..LHD200208-200406

DENSO

main85150-02130iCDE120,NDE120,ZZE12#..UKP..LHD200406

85192COVER, WINDSHIELD WIPER ARM

main85292-02020iCDE120,ZZE12#..UKP200201-200406

85211BARM, FRONT WIPER, RH

main85211-02100iCDE120,ZZE12#..UKP..RHD200208-200406

VALEO

main85211-02100iCDE120,ZZE12#..UKP..RHD200201-200208

main85211-02110iCDE120,ZZE12#..UKP..LHD200208-200406

VALEO

main85211-02110iCDE120,ZZE12#..UKP..LHD200201-200208

main85211-02150iCDE120,ZZE12#..UKP..RHD200208-200406

DENSO

main85211-02150iCDE120,NDE120,ZZE12#..UKP..RHD200406

main85211-02160iCDE120,ZZE12#..UKP..LHD200208-200406

DENSO

main85211-02160iCDE120,NDE120,ZZE12#..UKP..LHD200406

85212ABLADE, FR WIPER, RH

main85212-02100iCDE120,ZZE12#..UKP..RHD200201-200208

main85212-02100iCDE120,ZZE12#..UKP..RHD200208-200406

VALEO

main85212-02150iCDE120,NDE120,ZZE12#..UKP..RHD200406

main85212-02150iCDE120,ZZE12#..UKP..RHD200208-200406

DENSO

main85212-02160iCDE120,ZZE12#..UKP..LHD200208-200406

DENSO

main85212-02160iCDE120,NDE120,ZZE12#..UKP..LHD200406-200610

main85212-02161iCDE120,NDE120,ZZE12#..UKP..LHD200611

main85222-05090iCDE120,ZZE12#..UKP..LHD200208-200406

VALEO

main85222-05090iCDE120,ZZE12#..UKP..LHD200201-200208

85214ARUBBER, WIPER, RH

main85214-02210iCDE120,ZZE12#..UKP..LHD200208-200610

main85214-02211iCDE120,NDE120,ZZE12#..UKP..LHD200611

main85214-05080iCDE120,NDE120,ZZE12#..UKP..RHD200208-200406

85214BRUBBER, WIPER, LH

main85214-02210iCDE120,ZZE12#..UKP..RHD200208-200610

main85214-02211iCDE120,NDE120,ZZE12#..UKP..RHD200611

main85214-05080iCDE120,NDE120,ZZE12#..UKP..LHD200208-200406

85221BARM, FRONT WIPER, LH

main85221-02110iCDE120,ZZE12#..UKP..RHD200201-200208

main85221-02110iCDE120,ZZE12#..UKP..RHD..SED200208-200406

VALEO

main85221-02120iCDE120,ZZE12#..UKP..LHD..SED200208-200406

VALEO

main85221-02120iCDE120,ZZE12#..UKP..LHD200201-200208

main85221-02160iCDE120,ZZE12#..UKP..RHD200208-200406

DENSO

main85221-02160iCDE120,NDE120,ZZE12#..UKP..RHD200406

main85221-02170iCDE120,ZZE12#..UKP..LHD200208-200406

DENSO

main85221-02170iCDE120,NDE120,ZZE12#..UKP..LHD200406

85222ABLADE, FR WIPER, LH

main85222-02120iCDE120,ZZE12#..UKP..LHD200201-200208

main85222-02120iCDE120,ZZE12#..UKP..LHD200208-200406

VALEO

main85222-02160iCDE120,NDE120,ZZE12#..UKP..RHD200406-200610

main85222-02160iCDE120,ZZE12#..UKP..RHD200208-200406

DENSO

main85222-02161iCDE120,NDE120,ZZE12#..UKP..RHD200611

main85222-02170iCDE120,ZZE12#..UKP..LHD200208-200406

DENSO

main85222-02170iCDE120,NDE120,ZZE12#..UKP..LHD200406

main85222-05090iCDE120,ZZE12#..UKP..RHD200201-200208

main85222-05090iCDE120,ZZE12#..UKP..RHD200208-200406

VALEO

89941SENSOR, RAIN

main89941-05010iCDE120,NDE120,ZZE12#..UKP..SOL200406

89943COVER, RAIN SENSOR

main89943-05010iCDE120,NDE120,ZZE12#..UKP..SOL200406

NO.1

main89943-05020iCDE120,NDE120,ZZE12#..UKP..SOL200406

NO.2

89944TAPE, RAIN SENSOR

main89944-05010iCDE120,NDE120,ZZE12#..UKP..SOL200406-200702

9011906864

main90119-06864

9017908113

main90179-08113

14 parts on this diagram · 1 diagram in section
