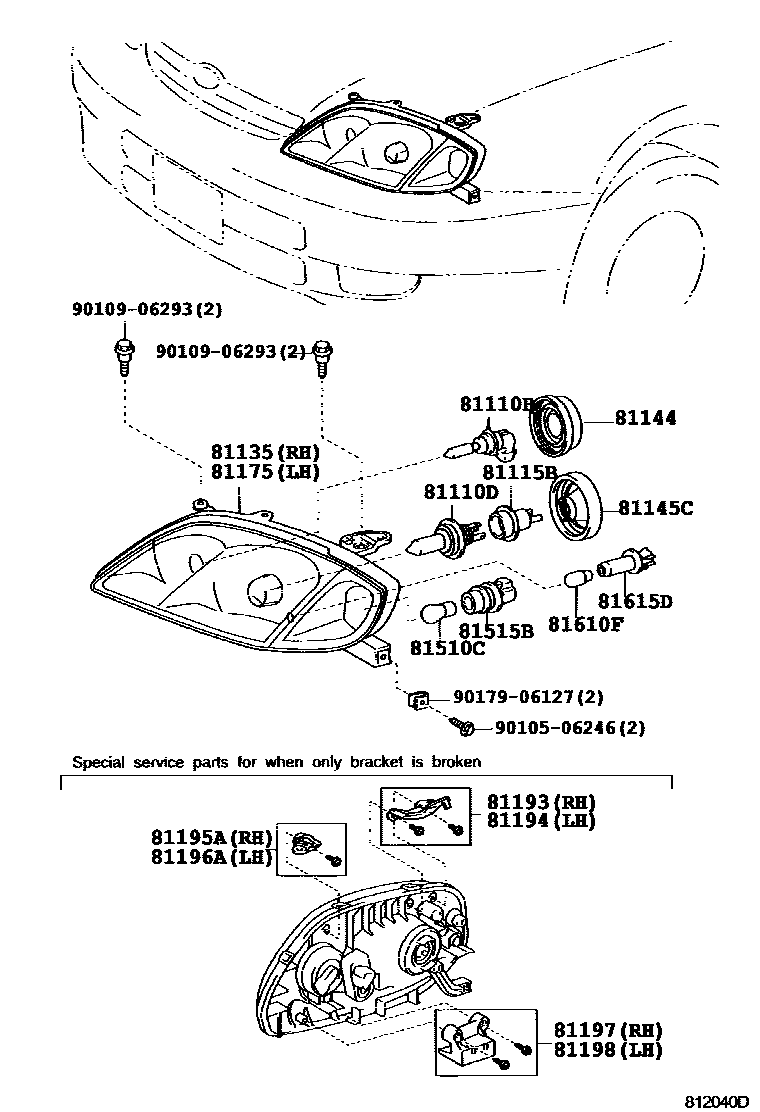

HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81106×2iCDE120,ZZE12#..UKP200405-200406

12V 60W

main90981-WD010×2iCDE120,ZZE12#..UKP200405-200406

12V 55W

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81079×2iCDE120,ZZE12#..UKP200201-200405

12V 55W,OSRAM

main90981-13063×2iCDE120,ZZE12#..UKP200405-200406

12V 55W,HALOGEN,(J)

main90981-WD002×2iCDE120,ZZE12#..UKP200210-200405

12V 55W,GE

main90981-WD010×2iCDE120,ZZE12#..UKP200405-200406

12V 55W,(L)

81115BSOCKET,HEADLAMP, NO.1

main90069-81019×2iCDE120,ZZE12#..UKP200201-200406

81135UNIT ASSY, HEADLAMP, RH

main81130-02170iCDE120,ZZE12#..UKP..RHD200201-200406

main81130-02180iCDE120,NDE120,ZZE12#..UKP..LHD; CDE120,NDE120,ZZE12#..UKP..RHD200406

RH TRAFFIC SPEC

81144COVER, HEADLAMP, NO.1

main90069-81023×2iCDE120,NDE120,ZZE12#..UKP200406

81145CCOVER, HEADLAMP SOCKET, NO.2

main90069-81024×2iCDE120,NDE120,ZZE12#..UKP200406

81175UNIT ASSY, HEADLAMP, LH

main81170-02180iCDE120,NDE120,ZZE12#..UKP..RHD200406

main81170-02190iCDE120,NDE120,ZZE12#..UKP..LHD; CDE120,NDE120,ZZE12#..UKP..RHD200406

RH TRAFFIC SPEC

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12010iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12010iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12010iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12010iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

81197BRACKET, HEADLAMP, LOWER RH

main81197-12020iCDE120,NDE120,ZZE12#..UKP200406

81198BRACKET, HEADLAMP, LWR LH

main81198-12020iCDE120..UKP..DCR;ZZE121..UKP..RHD..SOL;ZZE121..UKP..WG..4FC..TERRA; ZZE120..UKP;ZZE121..UKP..LHD..SOL;ZZE121..UKP..5F..TERRA;ZZE121..UKP..SED..4FC..TERRA200201-200406

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90080-81104×2iCDE120,ZZE12#..UKP200201-200406

12V 21W,AMBER,OSRAM

main90981-WF001×2iCDE120,ZZE12#..UKP200210-200405

12V 21W,AMBER,GE

main90981-WF006×2iCDE120,NDE120,ZZE12#..UKP200409

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81021×2iCDE120,ZZE12#..UKP200201-200406

81610FBULB(FOR CLEARANCE LAMP)

main90080-81105×2iCDE120,NDE120,ZZE12#..UKP200406-200409

12V 5W,OSRAM

main90981-WB014×2iCDE120,NDE120,ZZE12#..UKP200409

12V 5W

main90981-WC001×2iCDE120,ZZE12#..UKP200210-200405

12V 5W,GE

81615DSOCKET, CLEARANCE LAMP

main90069-81020×2iCDE120,ZZE12#..UKP200201-200406

9010506246

main90105-06246

9010906293

main90109-06293

9017906127

main90179-06127

20 parts on this diagram · 1 diagram in section
