ARMREST & VISOR

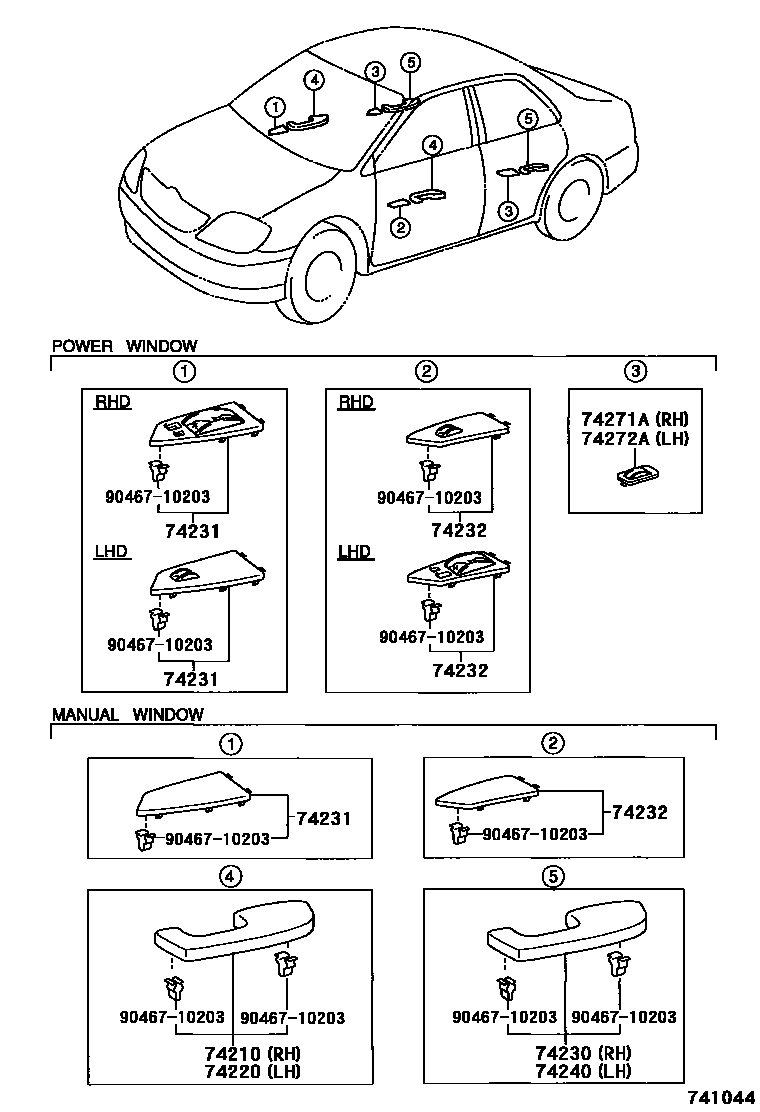

Parts diagram

74210ARMREST ASSY, FRONT, RH

main74210-02110-B0i200406

DK.GRAY,TRIM1#

main74210-12240-B1i200201-200406

DK.GRAY,TRIM1#,(J)

74220ARMREST ASSY, FRONT, LH

main74220-02080-B0i200406

DK.GRAY,TRIM1#

main74220-12180-B1i200201-200406

DK.GRAY,TRIM1#,(J)

74230ARMREST ASSY, REAR, RH

main74210-02110-B0i200406

DK.GRAY,TRIM1#

main74210-12240-B1i200201-200406

DK.GRAY,TRIM1#,(J)

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02270-B0i200201-200406

GRAPHIC CARBON,TRIM1#

main74231-02280-B0i200201-200406

GRAPHIC CARBON,TRIM1#

main74231-02290-B0i200406

W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1#

main74231-02300-B0i200201-200406

W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1#

main74231-02310-B0i200201-200406

DK.GRAY,TRIM1#

main74231-02480-B0i200406

W(POWER WINDOW = FRONT & REAR),DK.GRAY,TRIM1#

main74231-02520-B1i200406

GRAPHIC CARBON,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02270-B0i200201-200406

GRAPHIC CARBON,TRIM1#

main74232-02280-B0i200201-200406

GRAPHIC CARBON,TRIM1#

main74232-02290-B0i200201-200406

W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1#

main74232-02300-B0i200201-200406

W(POWER WINDOW = FRONT ONLY),DK.GRAY,TRIM1#

main74232-02310-B0i200406

DK.GRAY,TRIM1#

main74232-02480-B0i200406

W(POWER WINDOW = FRONT & REAR),DK.GRAY,TRIM1#

74240ARMREST ASSY, REAR, LH

main74220-02080-B0i200201-200406

DK.GRAY,TRIM1#,(L)

main74220-12180-B1i200201-200406

DK.GRAY,TRIM1#,(J)

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main84656-02130-B1i200201-200406

DK.GRAY,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main84656-02130-B1i200201-200406

DK.GRAY,TRIM1#

9046710203

main90467-10203

9 parts on this diagram · 2 diagrams in section
