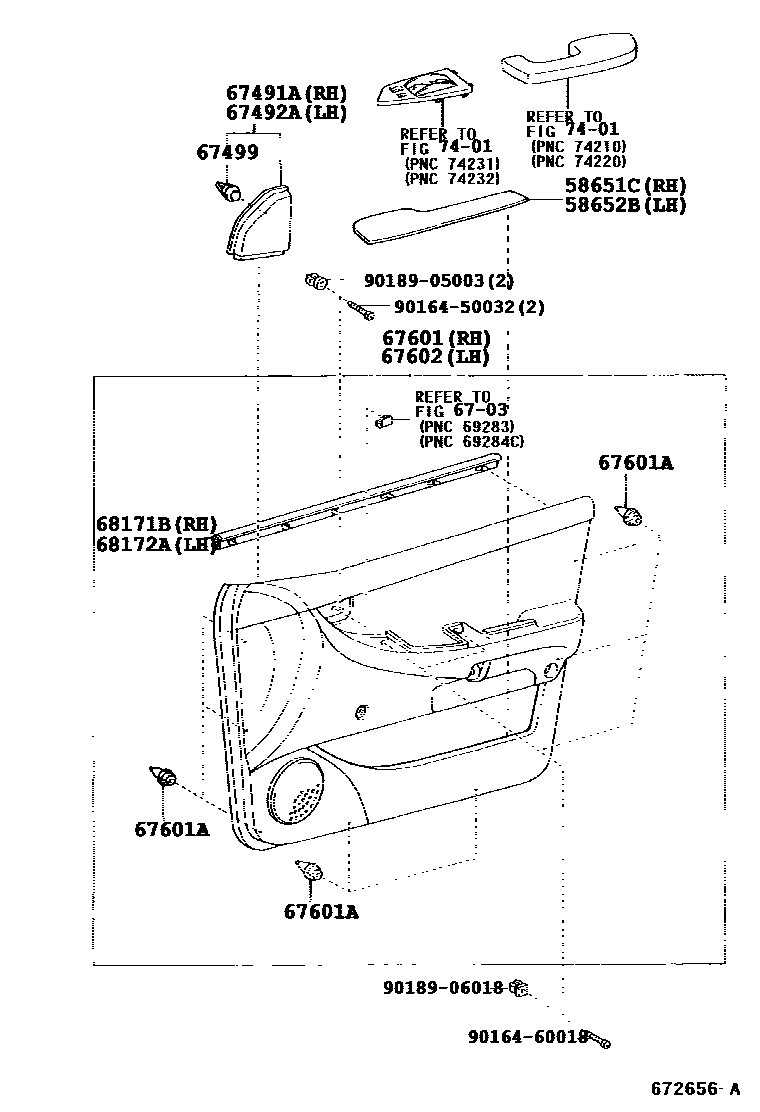

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

58651CPLATE, FRONT DOOR MAT, RH

main58651-02070-B0iCDE120,NDE120,ZZE12#..UKP200406

DK.GRAY,TRIM1#

58652BPLATE, FRONT DOOR MAT, LH

main58652-02050-B0iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12460iNDE120..UKP..TERRA200408

W(ELECTRIC REMOTE CONTROL MIRROR)

main67491-12470iCDE120,ZZE12#..UKP..TERRA200201-200406

W(MANUAL REMOTE CONTOROL MIRROR)

main67491-12480iCDE120,ZZE12#..UKP..SOL200201-200406

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12460iCDE120,ZZE12#..UKP..TERRA200201-200406

W(ELECTRIC REMOTE CONTROL MIRROR)

main67492-12470iCDE120,ZZE12#..UKP..TERRA200201-200406

W(MANUAL REMOTE CONTOROL MIRROR)

main67492-12480iCDE120,NDE120,ZZE12#..UKP..SOL200406

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-12060×2iCDE120,ZZE12#..UKP200201-200406

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-02A00-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

DK.GRAY,TRIM1#

main67650-02310-B1iCDE120,ZZE12#..UKP..TERRA200201-200406

DK.GRAY,TRIM1#

main67650-02320-B1iCDE120,ZZE12#..UKP..TERRA200201-200406

W(POWER WINDOW),DK.GRAY,TRIM1#

main67650-02330-B0iCDE120,ZZE12#..UKP..SOL200201-200406

DK.GRAY,TRIM1#

main67650-02340-B0iNDE120,ZZE12#..UKP..SED..TERRA200406

DK.GRAY,TRIM1#

main67650-02350-B0iCDE120,NDE120,ZZE12#..UKP..TERRA200406

W(POWER WINDOW),DK.GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-10161×16iCDE120,ZZE12#..UKP200201-200306

main90467-W0005×16iCDE120,NDE120,ZZE12#..UKP200406

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-02A00-B0iCDE120,NDE120,ZZE12#..UKP..SOL200406

DK.GRAY,TRIM1#

main67660-02320-B1iCDE120,ZZE12#..UKP..TERRA200201-200406

DK.GRAY,TRIM1#

main67660-02330-B1iCDE120,ZZE12#..UKP..TERRA200201-200406

W(POWER WINDOW),DK.GRAY,TRIM1#

main67660-02340-B0iCDE120,ZZE12#..UKP..SOL200201-200406

DK.GRAY,TRIM1#

main67660-02350-B0iNDE120,ZZE12#..UKP..SED..TERRA200406

DK.GRAY,TRIM1#

main67660-02360-B0iCDE120,NDE120,ZZE12#..UKP..TERRA200406

W(POWER WINDOW),DK.GRAY,TRIM1#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-12290iCDE120,ZZE12#..UKP200201-200301

main68171-12320iCDE120,ZZE12#..UKP200301-200406

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-12210iCDE120,ZZE12#..UKP200201-200301

main68172-12240iCDE120,ZZE12#..UKP200301-200406

7401ARMREST & VISOR

→ Go to FIG 74-01

9016450032

main90164-50032

9016460018

main90164-60018

9018905003

main90189-05003

9018906018

main90189-06018

16 parts on this diagram · 3 diagrams in section
