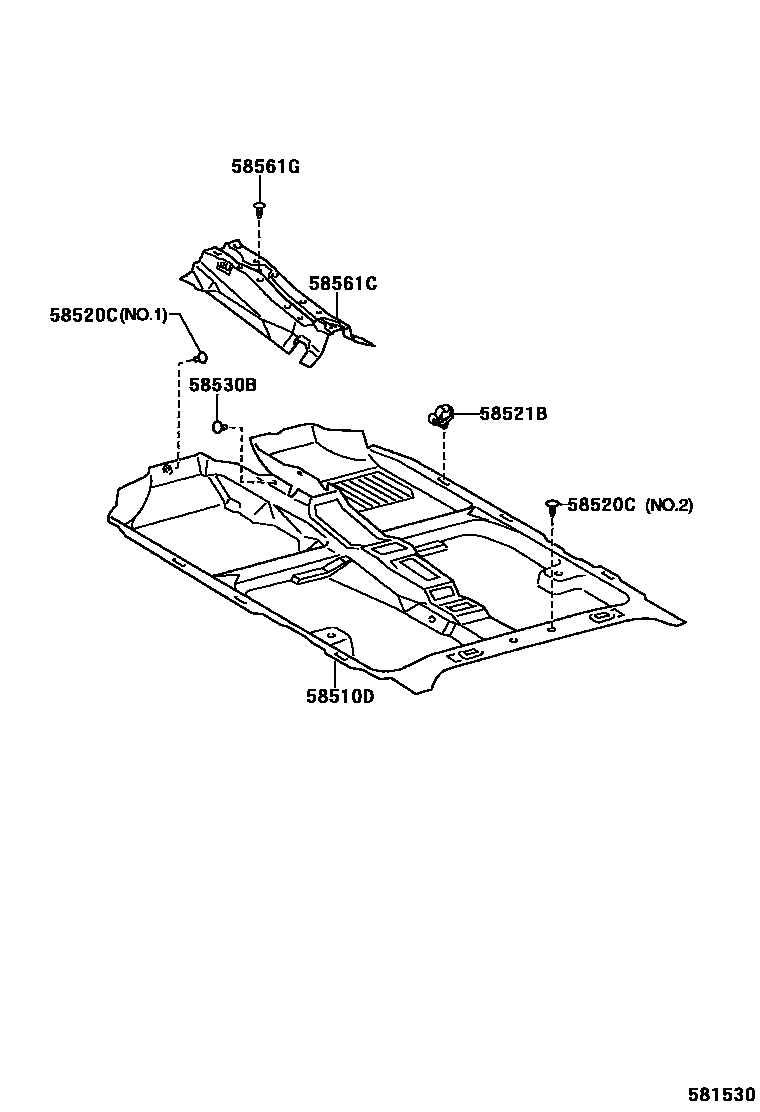

MAT & CARPET

0001 1 0002 1

58510DCARPET ASSY, FLOOR, FRONT

main58510-02460-B0iCDE120,ZZE12#..UKP..RHD..SED200201-200312

DK.GRAY,TRIM1#

main58510-02461-B0iNDE120,ZZE12#..UKP..RHD..SED200406

DK.GRAY,TRIM1#

main58510-02470-B0iCDE120,ZZE12#..UKP..LHD..SED200201-200312

DK.GRAY,TRIM1#

main58510-02471-B0iCDE120,NDE120,ZZE12#..UKP..LHD..SED200406

DK.GRAY,TRIM1#

main58510-02480-B0iCDE120,ZZE12#..UKP..LHD..SED200201-200312

W(REAR HEATER DUCT),DK.GRAY,TRIM1#

main58510-02481-B0iCDE120,NDE120,ZZE12#..UKP..LHD..SED200406

W(REAR HEATER DUCT),DK.GRAY,TRIM1#

main58510-02590-B0iCDE120,ZZE121..UKP..RHD..WG200208-200312

DK.GRAY,TRIM1#

main58510-02591-B0iCDE120,ZZE121..UKP..RHD..WG200406

DK.GRAY,TRIM1#

main58510-02600-B0iCDE120,ZZE12#..UKP..LHD..WG200208-200312

DK.GRAY,TRIM1#

main58510-02601-B0iCDE120,ZZE12#..UKP..LHD..WG200312-200406

DK.GRAY,TRIM1#

main58510-02610-B0iCDE120,ZZE12#..UKP..LHD..WG200208-200312

W(REAR HEATER DUCT),DK.GRAY,TRIM1#

main58510-02611-B0iCDE120,NDE120,ZZE12#..UKP..LHD..WG200406

W(REAR HEATER DUCT),DK.GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06001-B3iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#,NO.1

main90467-07049-B7×2iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#,NO.2

main90467-07049-C0×2iCDE120,NDE120,ZZE12#..UKP200406

BLACK,NO.2

58521BHOOK, FLOOR CARPET

main58521-13020×6iCDE120,ZZE12#..UKP200201-200406

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07207-B0×2iCDE120,ZZE12#..UKP200404-200406

DK.GRAY,TRIM1#

main90467-09050×2iCDE120,ZZE12#..UKP200307-200403

main90467-09118×2iCDE120,ZZE12#..UKP200201-200307

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02030iCDE120,ZZE12#..UKP200201-200307

main58561-02080iCDE120,ZZE12#..UKP200307-200309

main58561-02081iCDE120,ZZE12#..UKP200309-200406

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-06020-B6iCDE120,ZZE12#..UKP200201-200406

DK.GRAY,TRIM1#

6 parts on this diagram · 2 diagrams in section
