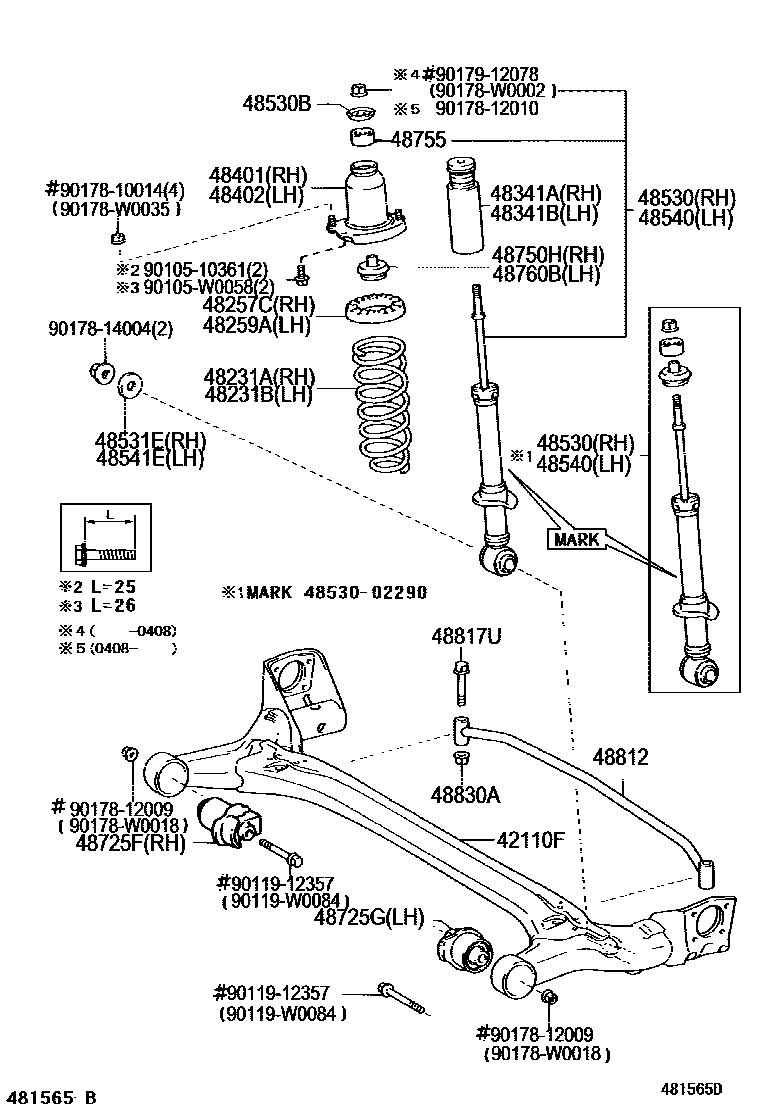

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
(L)
(J)
48231ASPRING, COIL, REAR RH
IDENTIFICATION MARK=PINK & BLUE
IDENTIFICATION MARK=YELLOW & YELLOW
IDENTIFICATION MARK=BLUE & WHITE
IDENTIFICATION MARK=YELLOW & GREEN
IDENTIFICATION MARK=PINK & BLUE
IDENTIFICATION MARK=BLUE & WHITE
IDENTIFICATION MARK=YELLOW & YELLOW
IDENTIFICATION MARK=YELLOW & GREEN
48231BSPRING, COIL, REAR LH
IDENTIFICATION MARK=PINK & BLUE
IDENTIFICATION MARK=YELLOW & YELLOW
IDENTIFICATION MARK=BLUE & WHITE
IDENTIFICATION MARK=YELLOW & GREEN
IDENTIFICATION MARK=PINK & BLUE
IDENTIFICATION MARK=BLUE & WHITE
IDENTIFICATION MARK=YELLOW & YELLOW
IDENTIFICATION MARK=YELLOW & GREEN
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-02240
MARK 48530-02250
MARK 48530-02290
MARK 48530-02241
MARK 48530-02291
MARK 48530-02251
MARK 48530-02241
MARK 48530-02291
MARK 48530-02251
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-02240
MARK 48530-02250
MARK 48530-02290
MARK 48530-02241
MARK 48530-02291
MARK 48530-02251
MARK 48530-02241
MARK 48530-02291
MARK 48530-02251
48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)
48725FBUSH, REAR AXLE CARRIER, RH
(L)
(J)
48725GBUSH, REAR AXLE CARRIER, LH
(L)
(J)
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48812BAR, STABILIZER, REAR
FRAME NO.=RXXXXXX
FRAME NO.=RXXXXXX
48817UBOLT(FOR REAR STABILIZER)
48830ANUT(FOR REAR STABILIZER LINK)
(J)
9010510361
main90105-10361
90105W0058
main90105-W0058
9011912357
main90119-12357
90119W0084
main90119-W0084
9017810014
main90178-10014
9017812009
main90178-12009
9017812010
main90178-12010
9017814004
main90178-14004
90178W0002
main90178-W0002
90178W0018
main90178-W0018
90178W0035
main90178-W0035
9017912078
main90179-12078
34 parts on this diagram · 1 diagram in section
