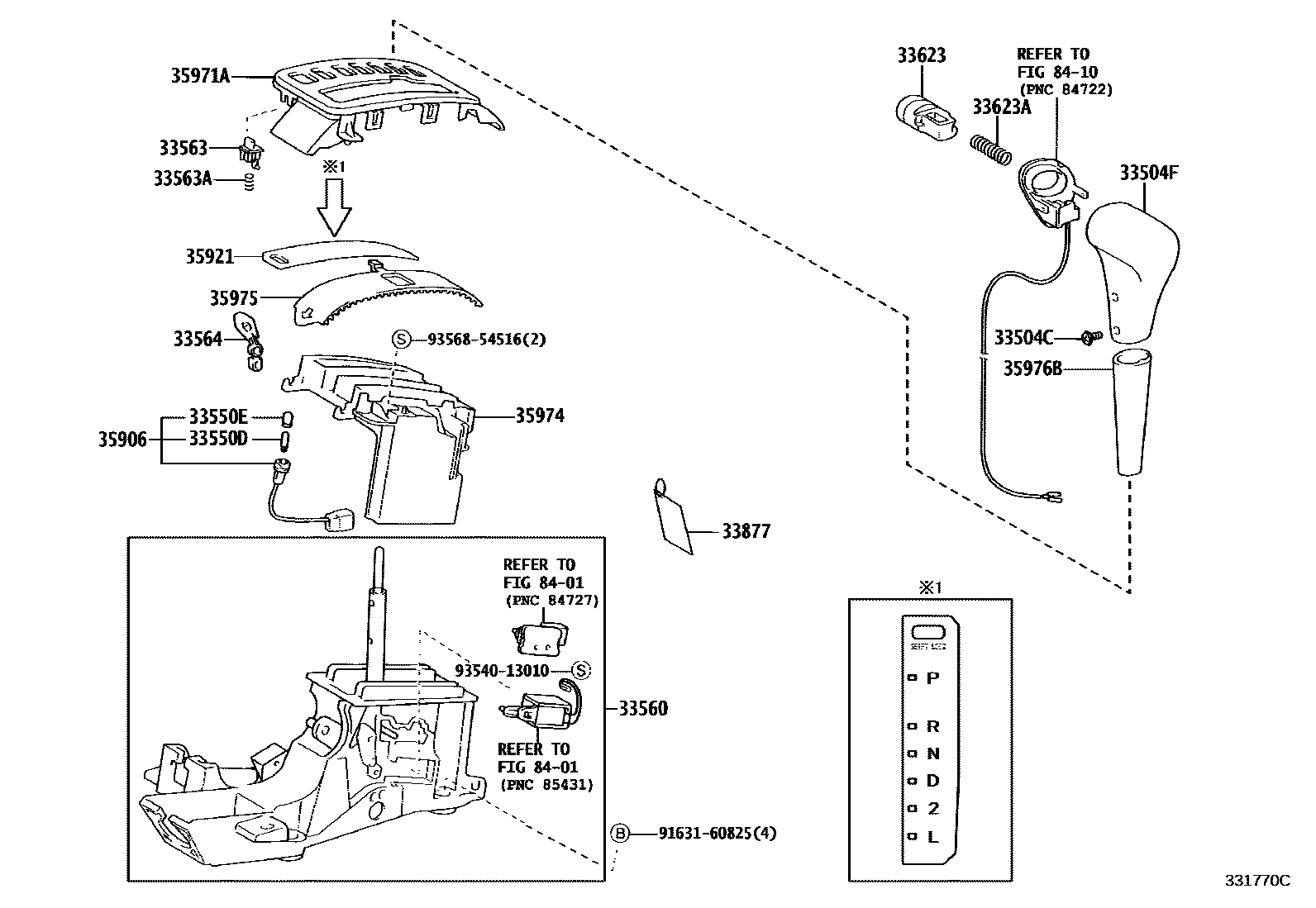

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40221×2iZZE121..UKP..4FC200201-200406

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02030-B0iCDE120,ZZE12#..UKP..5F..TERRA200201-200406

DK.GRAY,TRIM1#,(L)

main33504-02040-B0iCDE120,ZZE12#..UKP..5F..SOL200201-200406

WOOD GRAIN,DK.GRAY,TRIM1#,(L)

main33504-02090-B0iCDE120,NDE120,ZZE12#..UKP..5F..TERRA200510

LEATHER,DK.GRAY,TRIM1#

main33504-05030-B0iNDE120..UKP..5FS200510

LEATHER,DK.GRAY,TRIM1#

main33504-13010-B0iCDE120,ZZE12#..UKP..5F..TERRA200201-200406

DK.GRAY,TRIM1#

main33504-13050-B2iCDE120,ZZE12#..UKP..5F..SOL200201-200310

WOOD GRAIN,DK.GRAY,TRIM1#,(J)

main33504-13051-B2iCDE120,ZZE12#..UKP..5F..SOL200310-200311

WOOD GRAIN,DK.GRAY,TRIM1#,(J)

main33504-13060-B2iCDE120,ZZE12#..UKP..5F..SOL200201-200310

CHROME PLATED,DK.GRAY,TRIM1#,(J)

main33504-13061-B2iCDE120,ZZE12#..UKP..5F..SOL200310-200311

CHROME PLATED,DK.GRAY,TRIM1#,(J)

main33504-22170-B1iNDE120..UKP..5FS200408

DK.GRAY,TRIM1#

main33542-12320-B0iZZE121..UKP..4FC..TERRA200406

DK.GRAY,TRIM1#

main33542-12330-B0iZZE121..UKP..RHD..SOL200201-200406

DK.GRAY,TRIM1#

main33542-12340-B0iZZE121..UKP..LHD..4FC..SOL200201-200406

DK.GRAY,TRIM1#

33550DBULB, POSITION INDICATOR LAMP

main35955-74010iZZE121..UKP..4FC200201-200406

12V 1.4W

main90981-11018iNDE120..UKP..5FS200408-200702

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main35956-52030iZZE121..UKP..4FC200406-200702

main35956-64010iNDE120..UKP..5FS200408-200702

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-12050iZZE121..UKP..RHD..SOL200201-200308

main33560-12051iZZE121..UKP..RHD..SOL200308-200406

main33560-12060iZZE121..UKP..LHD..4FC200201-200308

main33560-12061iZZE121..UKP..LHD..4FC200308-200406

main33560-52120iNDE120..UKP..5FS200408

33563BUTTON, SHIFT LOCK RELEASE

main33563-12150iNDE120..UKP..5FS200408

main33563-12190iZZE121..UKP..RHD..SOL200201-200406

main33563-12210iZZE121..UKP..LHD..4FC200201-200406

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-05055iZZE121..UKP..4FC200201-200406

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-12130iZZE121..UKP..RHD..SOL200201-200406

main33564-12140iZZE121..UKP..LHD..4FC200201-200406

33623BUTTON, SHIFT LEVER KNOB

main33623-12160iZZE121..UKP..LHD..4FC200201-200406

main33623-12190iZZE121..UKP..RHD..SOL200201-200406

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-06082iZZE121..UKP..4FC200201-200406

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-50030iZZE121..UKP..4FC200201-200406

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12180iNDE120..UKP..5FS200408

main35906-12200iZZE121..UKP..RHD..SOL200201-200406

main35906-12210iZZE121..UKP..4FC200406

35921PLATE, CONTROL POSITION INDICATOR

main35921-12470iZZE121..UKP..4FC200406

main35921-12480iZZE121..UKP..RHD..SOL200201-200406

main35921-12510iNDE120..UKP..5FS200408

NO.1

main35921-12590iNDE120..UKP..5FS200408

NO.2

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-12400iZZE121..UKP..LHD..4FC200201-200406

main35971-12410iZZE121..UKP..RHD..SOL200201-200406

main35971-12440iNDE120..UKP..5FS200408

35974HOUSING, POSITION INDICATOR, LOWER

main35974-12190iNDE120..UKP..5FS200408

main35974-12240iZZE121..UKP..RHD..SOL200201-200406

main35974-12250iZZE121..UKP..LHD..4FC200201-200406

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-12290iZZE121..UKP..RHD..SOL200201-200406

main35975-12300iZZE121..UKP..LHD..4FC200201-200406

main35975-52050iNDE120..UKP..5FS200408

NO.1

main35975-52060iNDE120..UKP..5FS200408

NO.2

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-12100iZZE121..UKP..LHD..4FC200201-200406

main35976-12110iZZE121..UKP..RHD..SOL200201-200406
