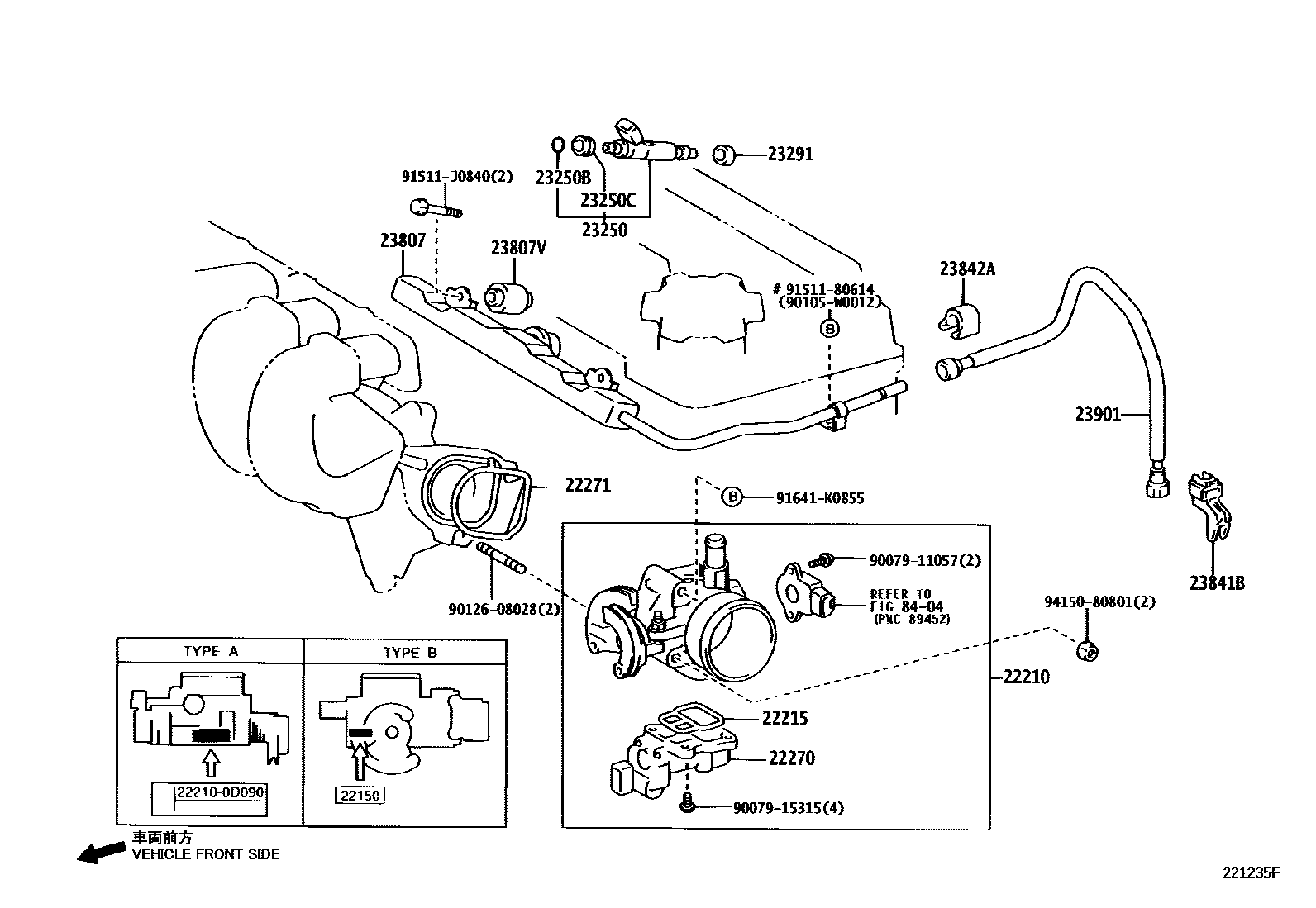

FUEL INJECTION SYSTEM
22210BODY ASSY, THROTTLE
(L)
(L)
(J)
(J)
TYPE A:REFER TO ILLUSTRATION,(L)
TYPE B:REFER TO ILLUSTRATION,(J)
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
(L)
(J)
23250INJECTOR ASSY, FUEL
BOSCH
DENSO
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23291INSULATOR, INJECTOR VIBRATION
(L)
(J)
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
(L)
(J)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23901TUBE SUB-ASSY, FUEL
8404ELECTRONIC FUEL INJECTION SYSTEM
9007911057
main90079-11057
9007915315
main90079-15315
90105W0012
main90105-W0012
9012608028
main90126-08028
9151180614
main91511-80614
91511J0840
main91511-J0840
91641K0855
main91641-K0855
9415080801
main94150-80801
22 parts on this diagram · 3 diagrams in section
