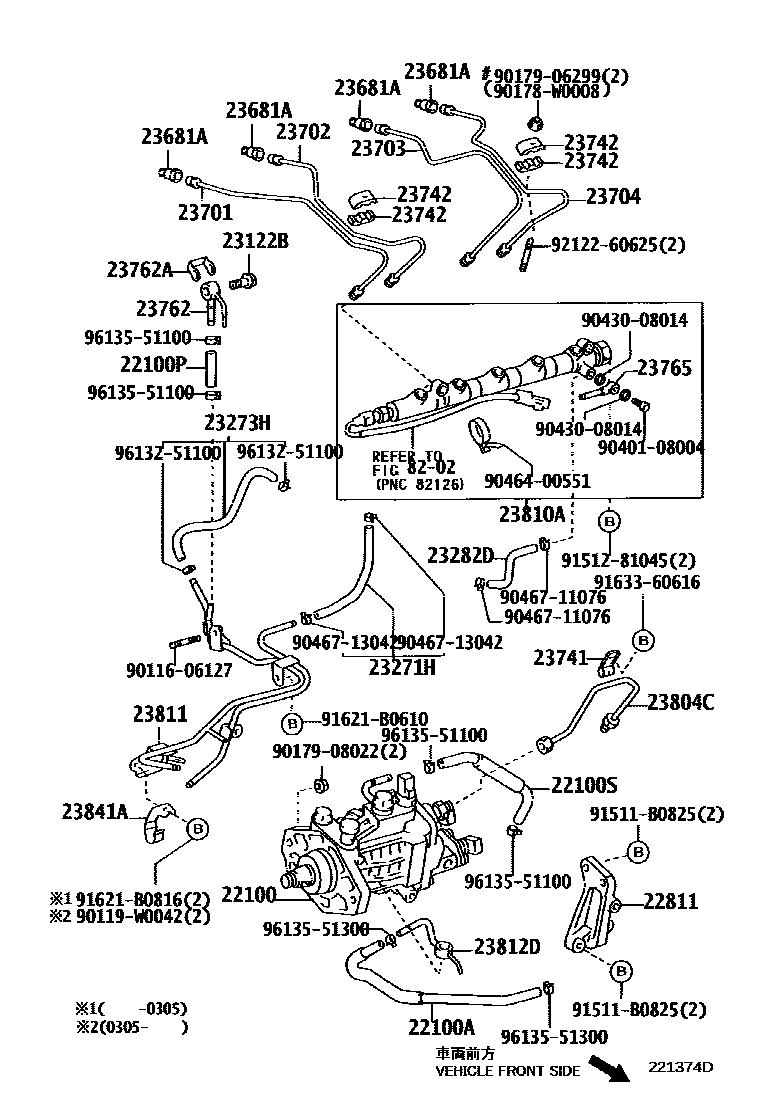

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22100PHOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)
ENGINE NO.=U0XXXXX-U9XXXXX
ENGINE NO.=0XXXXXX-9XXXXXX
22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
22811STAY, INJECTION PUMP, NO.1
23122BVALVE, CHECK
23271HHOSE, FUEL, NO.1
23273HHOSE, FUEL, NO.2
COLD AREA SPEC
COLD AREA SPEC
NO.1
COLD SPEC,NO.1
NO.2
23282DHOSE, FUEL, NO.4
23681ASEAL, NOZZLE HOLDER
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
NO.1
NO.2
23742CLAMP, INJECTION PIPE, NO.2
NO.1
NO.2
23762PIPE, NOZZLE LEAKAGE, NO.2
23762AGASKET, NOZZLE LEAKAGE PIPE NO.2
23765PIPE, NOZZLE LEAKAGE, NO.5
23804CPIPE SUB-ASSY, FUEL INLET
23810ARAIL ASSY, COMMON
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23812DPIPE, FUEL, NO.2
23841ACLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)
8202WIRING & CLAMP
9011606127
main90116-06127
90119W0042
main90119-W0042
90178W0008
main90178-W0008
9017906299
main90179-06299
9017908022
main90179-08022
9040108004
main90401-08004
9043008014
main90430-08014
9046400551
main90464-00551
9046711076
main90467-11076
9046713042
main90467-13042
91511B0825
main91511-B0825
9151281045
main91512-81045
91621B0610
main91621-B0610
91621B0816
main91621-B0816
9163360616
main91633-60616
9212260625
main92122-60625
9613251100
main96132-51100
9613551100
main96135-51100
9613551300
main96135-51300
44 parts on this diagram · 3 diagrams in section
