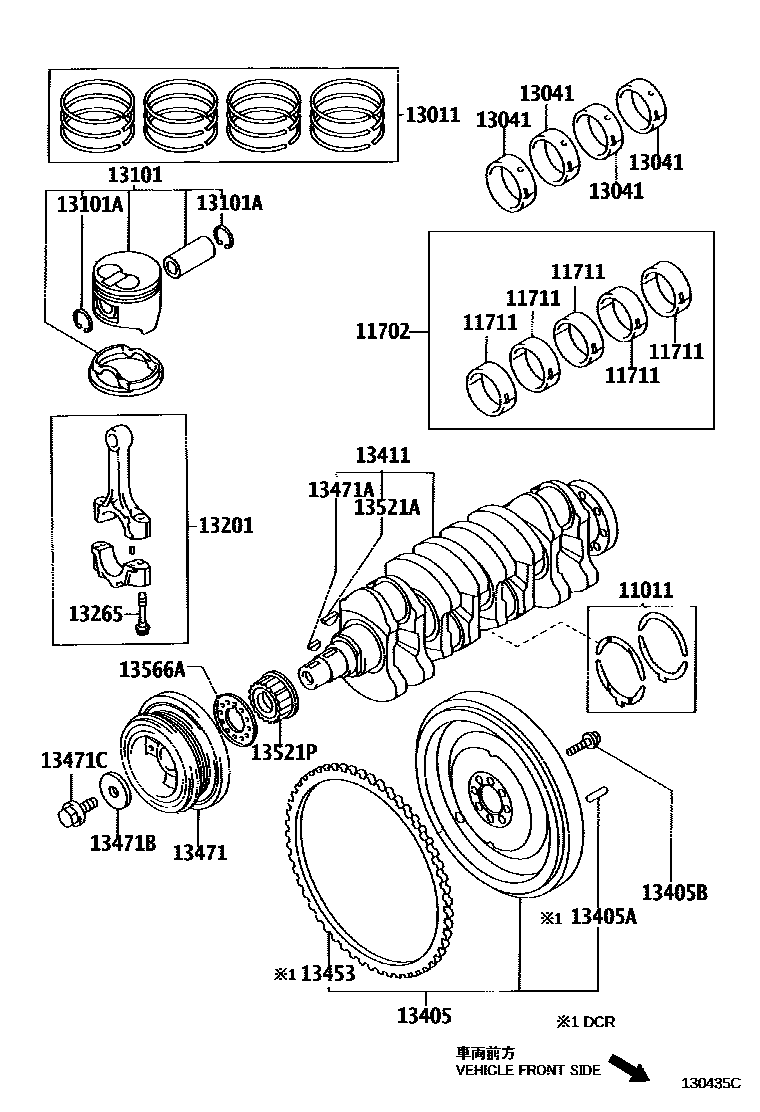

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
O/S 0.125
O/S 0.250
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
(L):REFER R/M
MARK 1,(L):REFER R/M
MARK 2,(L):REFER R/M
MARK 3,(L):REFER R/M
MARK 4,(L):REFER R/M
MARK 1,(L):REFER R/M
MARK 2,(L):REFER R/M
MARK 3,(L):REFER R/M
MARK 4,(L):REFER R/M
MARK 5,(L):REFER R/M
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK5,(L):REFER R/M
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
(J):REFER R/M
MARK 1,(J):REFER R/M
MARK 2,(J):REFER R/M
MARK 3,(J):REFER R/M
MARK 4,(J):REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK 1,(J):REFER R/M
MARK 2,(J):REFER R/M
MARK 3,REFER REPAIR MANUAL
MARK 4,(J):REFER R/M
MARK 5,(J):REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,(J):REFER R/M
MARK3,REFER REPAIR MANUAL
MARK4,(J):REFER R/M
MARK5,(J):REFER R/M
13011RING SET, PISTON
STD,(L)
STD,(L)
STD,(L)
STD,(J)
STD,(J)
STD,(J)
STD,ENGINE NO.=0XXXXXX-9XXXXXX
STD
STD
STD
13041BEARING, CONNECTING ROD
(L):REFER R/M
MARK 1,(L):REFER R/M
MARK 2,(L):REFER R/M
MARK 3,(L):REFER R/M
MARK 1,(L):REFER R/M
MARK 2,(L):REFER R/M
MARK 3,(L):REFER R/M
MARK 4,(L):REFER R/M
MARK 5,(L):REFER R/M
(J):REFER R/M
MARK 1,(J):REFER R/M
MARK 2,(J):REFER R/M
MARK 3,(J):REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK 1,(J):REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,(J):REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD,MARKA,REFER REPAIR MANUAL
STD,MARKB,REFER REPAIR MANUAL
STD,MARKC,REFER REPAIR MANUAL
STD,MARKA,REFER REPAIR MANUAL
STD,MARKB,REFER REPAIR MANUAL
STD,MARKC,REFER REPAIR MANUAL
STD,MARKA,REFER REPAIR MANUAL
STD,MARKB,REFER REPAIR MANUAL
STD,MARKC,REFER REPAIR MANUAL
STD
STD
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
STD
STD,MARKA,REFER REPAIR MANUAL
STD,MARKB,REFER REPAIR MANUAL
STD,MARKC,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
(J)
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
TYPE A:REFER ILLUST.
TYPE B:REFER TO ILLUSTRATION,(L)
TYPE B:REFER ILLUST.
TYPE A:REFER TO ILLUSTRATION,(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
(L)
(J)
(J)
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
(L)
(L)
(L)
(J)
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
22 parts on this diagram · 3 diagrams in section
