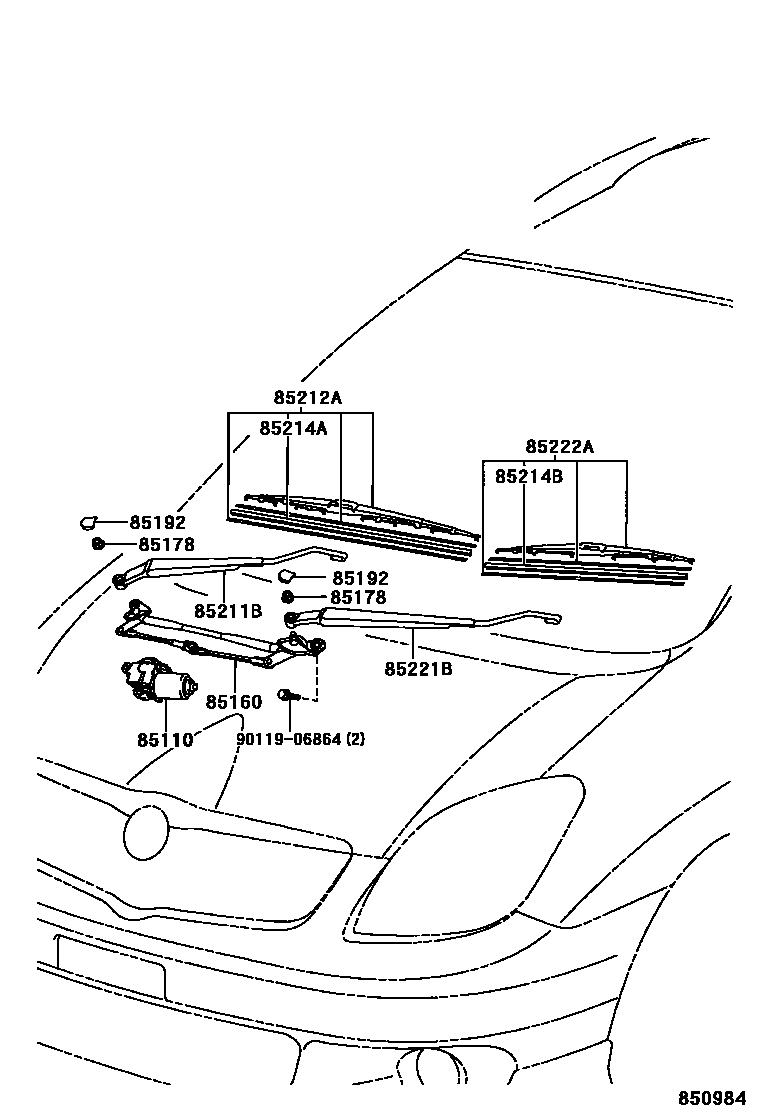

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-13090iCDE120,ZZE12#..RHD200109-200401

main85110-13100iCDE120,ZZE12#..LHD200110-200401

85160LINK ASSY, WINDSHIELD WIPER

main85150-13070iCDE120,ZZE12#..RHD200109-200401

main85150-13080iCDE120,ZZE12#..LHD200110-200401

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2iCDE120,ZZE12#200109-200401

85192COVER, WINDSHIELD WIPER ARM

main85292-13010×2iCDE120,ZZE12#200109-200401

85211BARM, FRONT WIPER, RH

main85211-13040iCDE120,ZZE12#..RHD200109-200401

main85211-13050iCDE120,ZZE12#..LHD200110-200401

85212ABLADE, FR WIPER, RH

main85212-13030iCDE120,ZZE12#..LHD200110-200401

main85212-44070iCDE120,ZZE12#..RHD200109-200401

85214ARUBBER, WIPER, RH

main85214-44140iCDE120,ZZE12#..RHD200109-200401

main85214-50060iCDE120,ZZE12#..LHD200110-200401

85214BRUBBER, WIPER, LH

main85214-44140iCDE120,ZZE12#..LHD200110-200401

main85214-50060iCDE120,ZZE12#..RHD200109-200401

85221BARM, FRONT WIPER, LH

main85221-13050iCDE120,ZZE12#..RHD200109-200401

main85221-13060iCDE120,ZZE12#..LHD200110-200401

85222ABLADE, FR WIPER, LH

main85222-13030iCDE120,ZZE12#..RHD200109-200401

main85222-44070iCDE120,ZZE12#..LHD200110-200401

9011906864

main90119-06864

11 parts on this diagram · 1 diagram in section
