METER

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

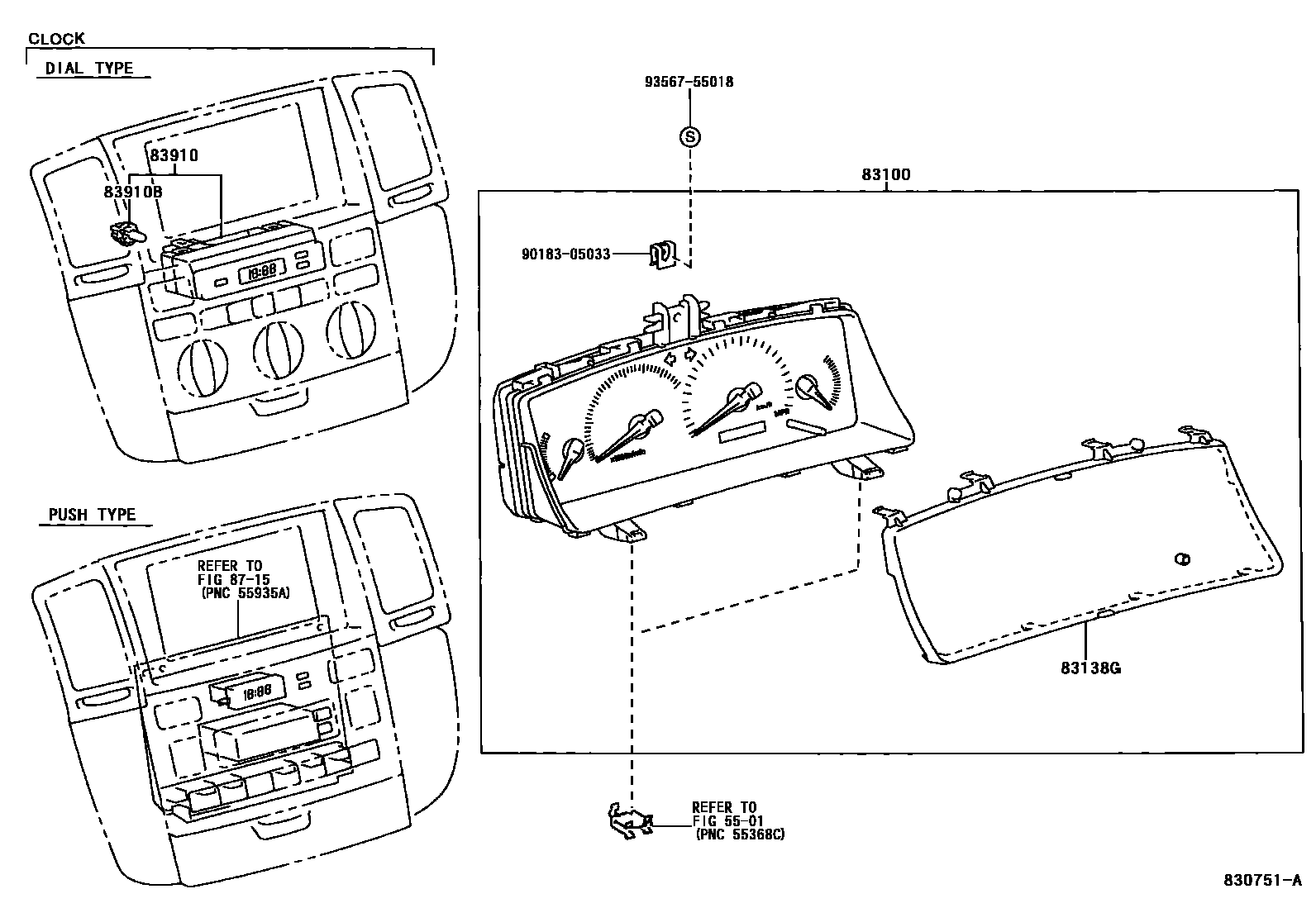

83100METER ASSY, COMBINATION

main83800-13100iZZE121..RHD200110-200401

MPH & KM/H

main83800-13110iZZE121200110-200401

KM/H

main83800-13120iZZE122..RHD200109-200401

MPH & KM/H

main83800-13130iZZE122200109-200401

KM/H

main83800-13140iCDE120..RHD200110-200401

MPH & KM/H

main83800-13150iCDE120200110-200401

KM/H

83138GGLASS, COMBINATION METER

main83852-13100iCDE120,ZZE12#200109-200401

83910CLOCK ASSY

main83910-12580iCDE120,ZZE12#200109-200401

83910BBULB, CLOCK INDICATOR

main90010-07018iCDE120,ZZE12#200109-200401

14V 1.12W

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9018305033

main90183-05033

9356755018

main93567-55018

8 parts on this diagram · 1 diagram in section
