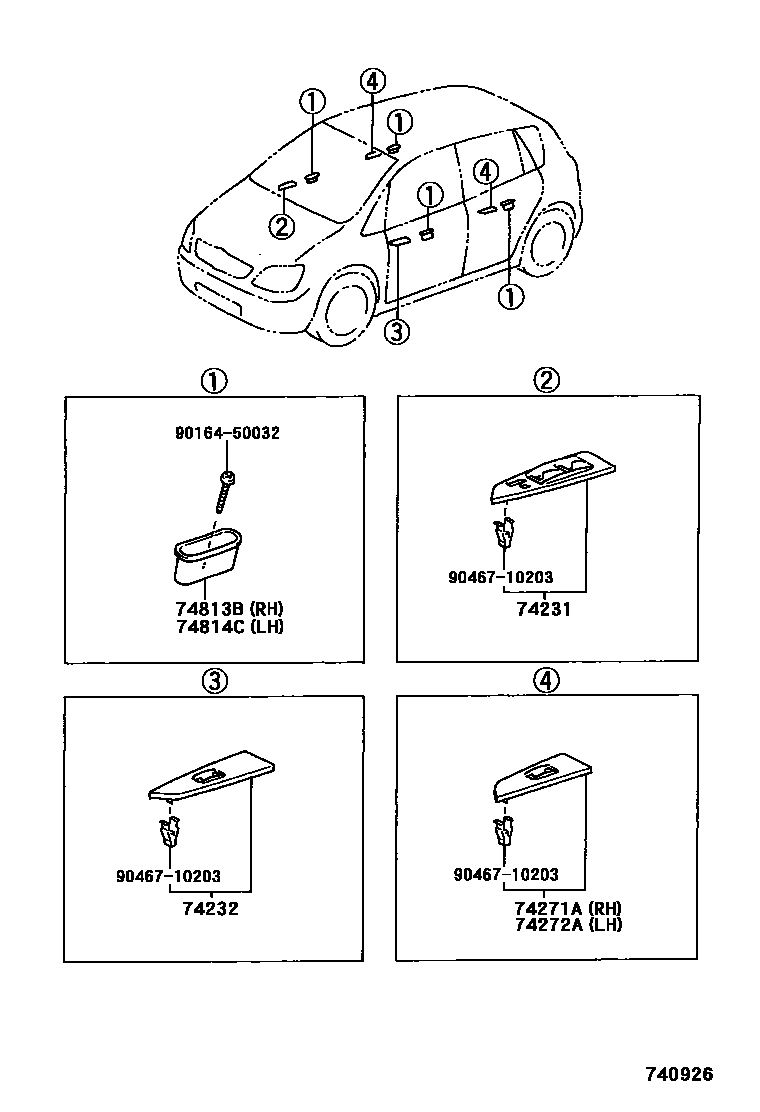

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-13100iCDE120,ZZE12#..RHD..SOL200109-200401

W(REAR POWER WINDOW)

main74231-13110-B0iCDE120,ZZE12#..LHD..TERRA200110-200401

DK.GRAY,TRIM1#

main74231-13120iCDE120,ZZE12#..LHD..SOL200110-200401

main74231-13130-B0iCDE120,ZZE12#..RHD..TERRA200109-200401

DK.GRAY,TRIM1#

main74231-13140iCDE120,ZZE12#..RHD..SOL200109-200401

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-13060-B0iCDE120,ZZE12#..RHD..TERRA200109-200401

DK.GRAY,TRIM1#

main74232-13070iCDE120,ZZE12#..RHD..SOL200109-200401

main74232-13080iCDE120,ZZE12#..LHD..SOL200110-200401

W(REAR POWER WINDOW)

main74232-13090-B0iCDE120,ZZE12#..LHD..TERRA200110-200401

DK.GRAY,TRIM1#

main74232-13100iCDE120,ZZE12#..LHD..SOL200110-200401

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-13040iCDE120,ZZE12#..SOL200109-200401

W(REAR POWER WINDOW)

main74271-13050-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main74271-13050-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-13040iCDE120,ZZE12#..SOL200109-200401

W(REAR POWER WINDOW)

main74272-13050-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main74272-13050-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

74813BHANDLE, FRONT DOOR PULL, RH

main74813-52010-A0×2iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main74813-52010-B2×2iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

74814CHANDLE, FRONT DOOR PULL, LH

main74814-52010-A0×2iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main74814-52010-B2×2iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

9016450032

main90164-50032

9046710203

main90467-10203

8 parts on this diagram · 3 diagrams in section
