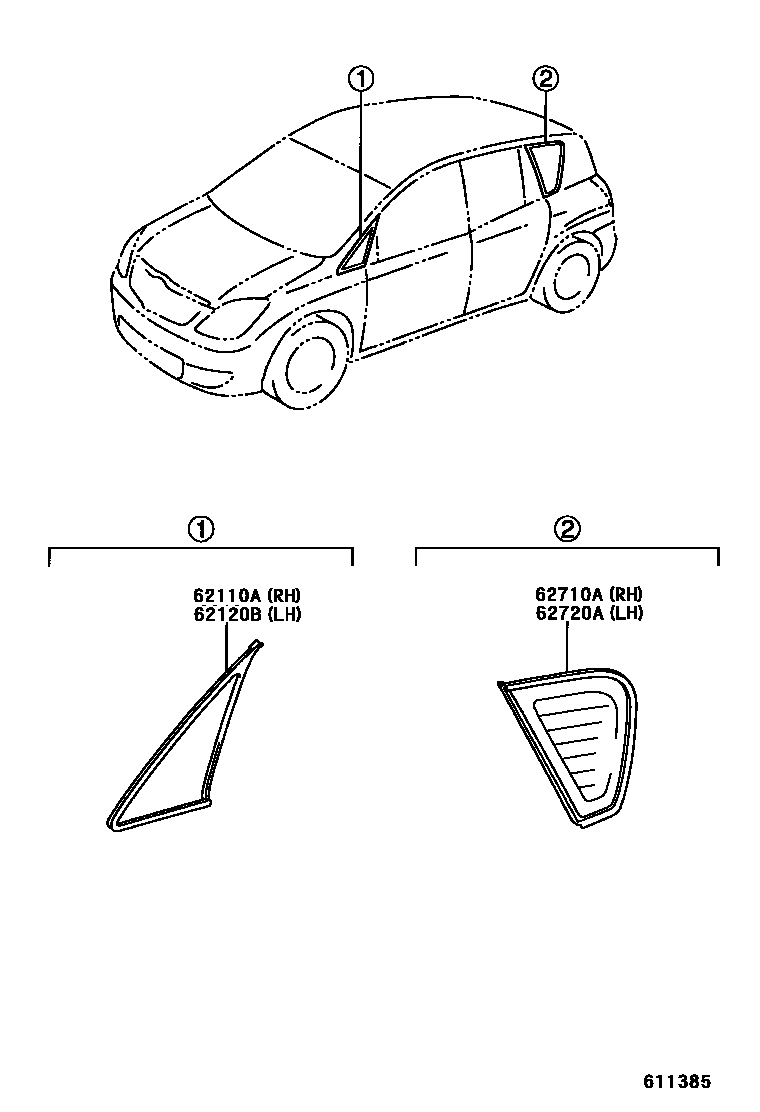

QUARTER WINDOW

62110AWINDOW ASSY, FRONT SIDE FIX, RH

main62110-13040iCDE120,ZZE12#200109-200401

62120BWINDOW ASSY, FRONT SIDE FIX, LH

main62120-13040iCDE120,ZZE12#200109-200401

62710AWINDOW ASSY, QUARTER, RH

main62710-13120iCDE120,ZZE12#200109-200401

*TT,T=3.1,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-13120iCDE120,ZZE12#200109-200401

*TT,T=3.1,GREEN

4 parts on this diagram · 1 diagram in section
