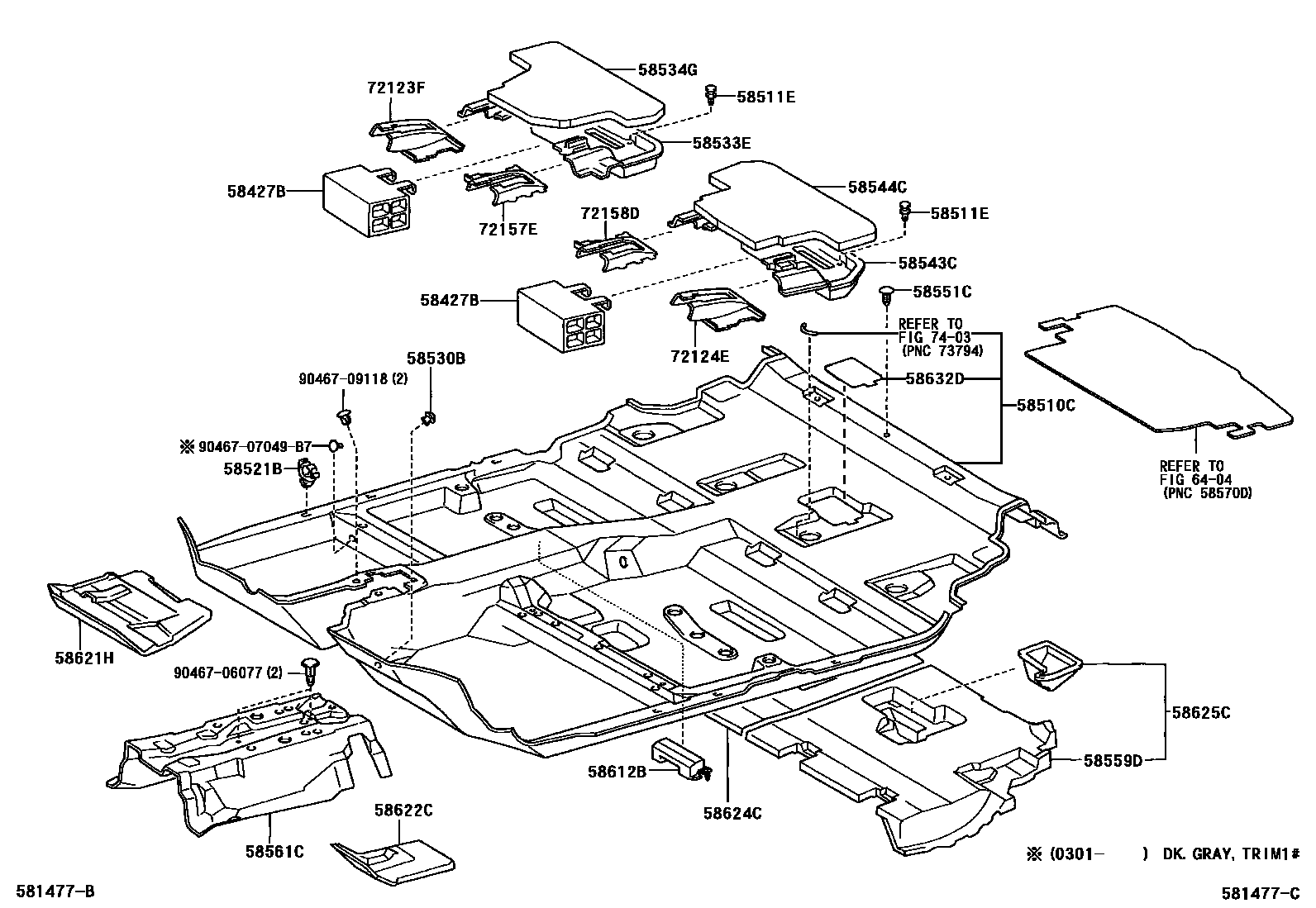

MAT & CARPET

58427BSPACER, REAR FLOOR BOARD

main58427-13040×2iCDE120,ZZE12#200109-200401

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-1F660-A0iCDE120,ZZE12#..RHD..SOL200109-200301

IVORY,TRIM0#

main58510-1F660-B0iCDE120,ZZE12#..RHD200109-200301

GRAY,TRIM1#

main58510-1F661-A0iCDE120,ZZE12#..RHD..SOL200301-200401

IVORY,TRIM0#

main58510-1F661-B0iCDE120,ZZE12#..RHD200301-200401

GRAY,TRIM1#

main58510-1F700-A0iCDE120,ZZE12#..LHD..MTM..SOL200110-200401

IVORY,TRIM0#

main58510-1F700-B0iCDE120,ZZE12#..LHD..MTM200110-200401

GRAY,TRIM1#

main58510-1F710-A0iZZE122..LHD..ATM..SOL200110-200401

W(KICK DOWN SWITCH),IVORY,TRIM0#

main58510-1F710-B0iZZE122..LHD..ATM200110-200401

W(KICK DOWN SWITCH),GRAY,TRIM1#

main58510-1F720-A0iCDE120,ZZE12#..LHD..MTM..SOL200110-200401

W(REAR HEATER DUCT),IVORY,TRIM0#

main58510-1F720-B0iCDE120,ZZE12#..LHD..MTM200110-200401

W(REAR HEATER DUCT),GRAY,TRIM1#

main58510-1F730-A0iZZE122..LHD..ATM..SOL200110-200401

W(REAR HEATER DUCT & KICK DOWN SWITCH),IVORY,TRIM0#

main58510-1F730-B0iZZE122..LHD..ATM200110-200401

W(REAR HEATER DUCT & KICK DOWN SWITCH),GRAY,TRIM1#

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-08188×4iCDE120,ZZE12#200109-200401

58521BHOOK, FLOOR CARPET

main58521-13030×6iCDE120,ZZE12#200109-200401

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-06001-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main90467-06001-B3iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

58533EBOARD, FRONT FLOOR MAT, CENTER NO.1 RH

main58533-13010iCDE120,ZZE12#200109-200401

58534GBOARD, FRONT FLOOR MAT, CENTER NO.2 RH

main58534-13010-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main58534-13010-B0iCDE120,ZZE12#200109-200401

GRAY,TRIM1#

58543CBOARD, FRONT FLOOR MAT, CENTER NO.1 LH

main58543-13010iCDE120,ZZE12#200109-200401

58544CBOARD, FRONT FLOOR MAT, CENTER NO.2 LH

main58544-13050-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main58544-13050-B0iCDE120,ZZE12#200109-200401

GRAY,TRIM1#

58551CCLIP(FOR FLOOR MAT, REAR)

main90467-08159-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main90467-08159-B2iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

58559DCARPET, REAR SEAT BELT ANCHOR COVER

main58559-13050iCDE120,ZZE12#200109-200401

58561CSILENCER, FRONT FLOOR, NO.1

main58561-13070iCDE120,ZZE12#200109-200401

58612BPLATE, MAT SET, NO.2

main58612-13080iCDE120,ZZE12#200109-200401

58621HPAD, FRONT FLOOR SILENCER

main58621-13030iCDE120,ZZE12#..RHD200109-200401

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-13010iCDE120,ZZE12#..LHD200110-200401

58624CPAD, CENTER FLOOR SILENCER, RH

main58624-13030iCDE120,ZZE12#200109-200401

58625CPAD, CENTER FLOOR SILENCER, LH

main58625-13020iCDE120,ZZE12#200109-200401

58632DCOVER, SEAT FLOOR BOX

main58632-13020-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main58632-13020-B0iCDE120,ZZE12#200109-200401

GRAY,TRIM1#

6404DECK BOARD & DECK TRIM COVER

→ Go to FIG 64-04

72123FCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-13010-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main72123-13010-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

72124ECOVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-13010-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main72124-13010-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

72157ECOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72157-13040-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main72157-13040-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

72158DCOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72158-13060-A0iCDE120,ZZE12#..SOL200109-200401

IVORY,TRIM0#

main72158-13060-B0iCDE120,ZZE12#200109-200401

DK.GRAY,TRIM1#

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9046706077

main90467-06077

9046707049B7

main90467-07049B7

9046709118

main90467-09118

27 parts on this diagram · 1 diagram in section
