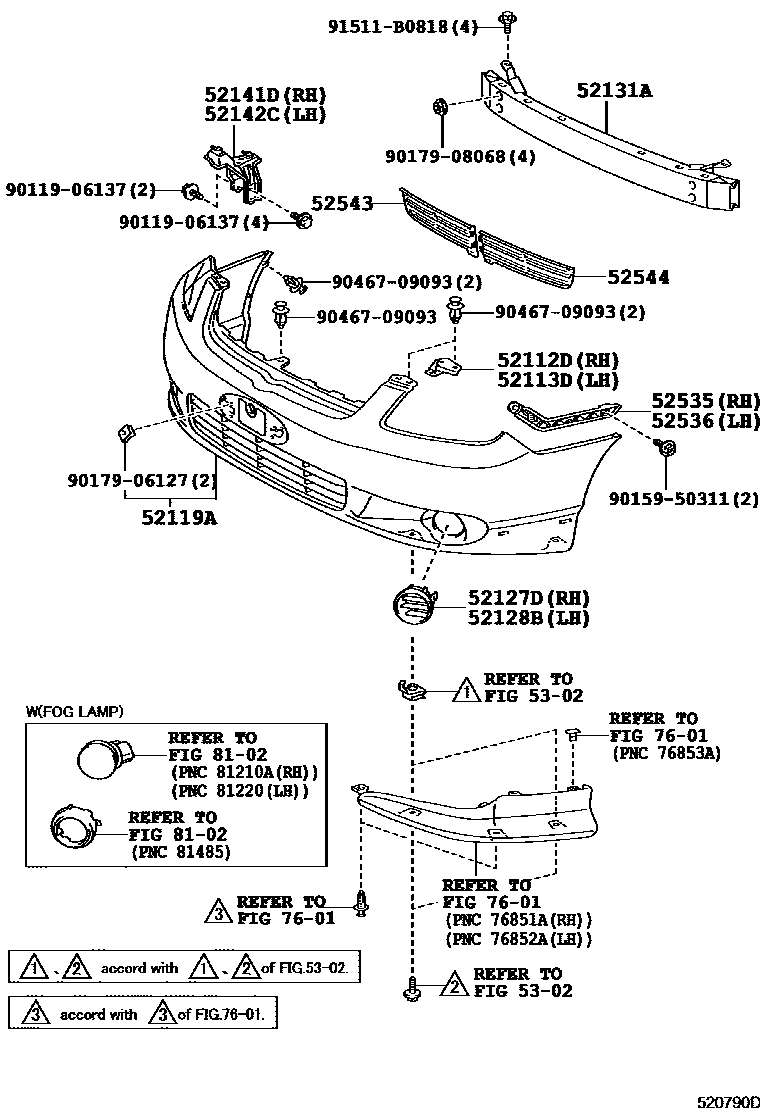

FRONT BUMPER & BUMPER STAY

52112DEXTENSION, FRONT BUMPER, RH

main52112-13040iCDE120,ZZE12#200109-200401

52113DEXTENSION, FRONT BUMPER, LH

main52113-13040iCDE120,ZZE12#200109-200401

52119ACOVER, FRONT BUMPER

main52119-13904iCDE120,ZZE12#200109-200401

main52119-13905iCDE120,ZZE12#..LHD200110-200401

W(HEADLAMP CLEANER)

main52119-13906iZZE122..RHD..ATM..SOL200109-200401

W(FRONT SPOILER = TYPE A)

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-13060iCDE120,ZZE12#200109-200401

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-13060iCDE120,ZZE12#200109-200401

52131AREINFORCEMENT, FRONT BUMPER

main52021-13020iCDE120,ZZE12#200109-200401

52141DSTAY, FRONT BUMPER, RH

main52081-13010iCDE120,ZZE12#200109-200304

main52081-13011iCDE120,ZZE12#200304-200401

52142CSTAY, FRONT BUMPER, LH

main52082-13010iCDE120,ZZE12#200109-200304

main52082-13011iCDE120,ZZE12#200304-200401

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-13030iCDE120,ZZE12#200109-200301

main52535-13031iCDE120,ZZE12#200301-200401

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-13030iCDE120,ZZE12#200109-200301

main52536-13031iCDE120,ZZE12#200301-200401

52543SEAL, FRONT BUMPER SIDE, RH

main52543-13010iCDE120,ZZE12#200109-200401

52544SEAL, FRONT BUMPER SIDE, LH

main52544-13010iCDE120,ZZE12#200109-200401

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8102FOG LAMP

→ Go to FIG 81-02

9011906137

main90119-06137

9015950311

main90159-50311

9017906127

main90179-06127

9017908068

main90179-08068

9046709093

main90467-09093

91511B0818

main91511-B0818

21 parts on this diagram · 1 diagram in section
