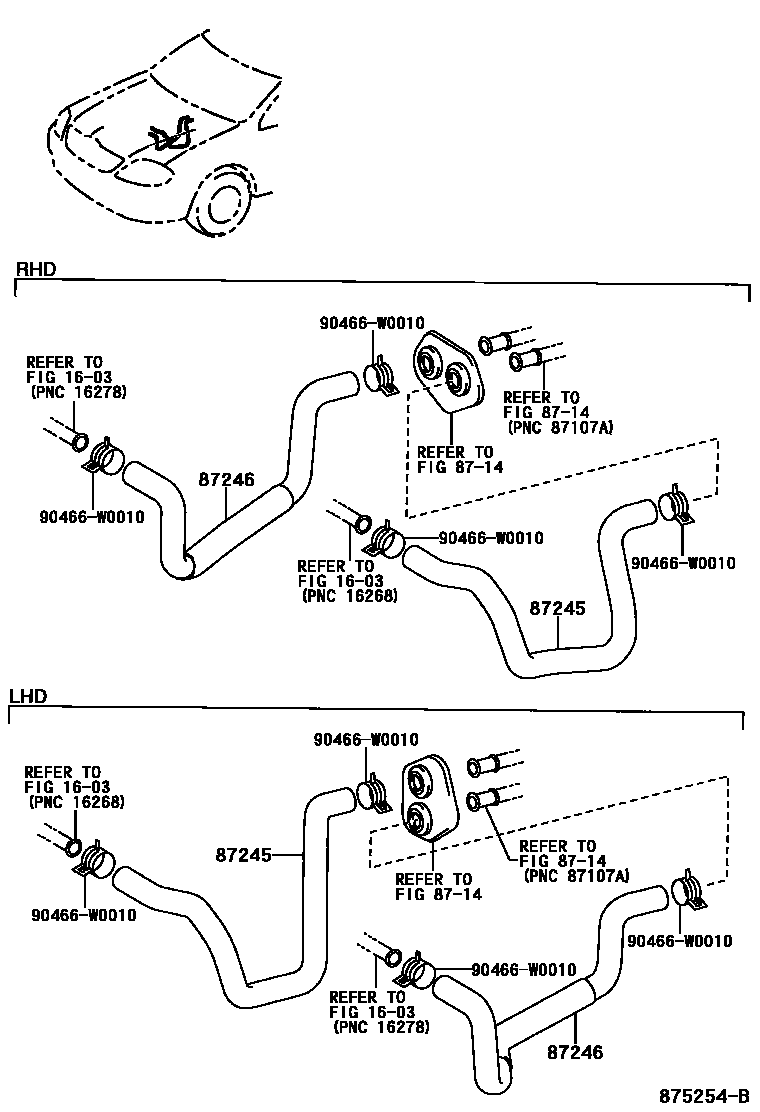

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1W(STOVE HEATER) 0005 1W(STOVE HEATER) 0006 1W(STOVE HEATER) 0008 1W(STOVE HEATER)

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-02370iZZE120,121..UKP..RHD200111-200401

main87245-02371iZZE120,121..UKP..RHD200401-200405

main87245-02390iZZE123..UKP..RHD200405

main87245-02410iCDE120..UKP..RHD200111-200301

main87245-02430iZZE120,121..UKP..LHD200111-200401

main87245-02431iZZE120,121..UKP..LHD200401-200405

main87245-02450iZZE123..UKP..LHD200405

main87245-02470iCDE120..UKP..LHD200111-200301

main87245-02490iCDE120..UKP..LHD..(DCR,HDCR)200111-200405

W(STOVE HEATER)

main87245-02650iNDE120..UKP..RHD200408

main87245-02670iNDE120..UKP..LHD200408

main87245-02690iNDE120..UKP..LHD..5F200408

W(STOVE HEATER)

main87245-02890iZZE120,121..UKP..RHD200405

main87245-02A00iZZE120,121..UKP..LHD200405

main87245-05500iCDE120..UKP..LHD..DCRL200304-200405

W(STOVE HEATER)

main87245-05550iCDE120..UKP..RHD200405

main87245-05570iCDE120..UKP..LHD200405

87246HOSE, HEATER WATER, OUTLET

main87245-02380iZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL; ZZE121..RHD..3D..SOL200111-200405

main87245-02400iZZE123..RHD..5D; ZZE123..UKP..RHD..3D200111-200405

main87245-02420iCDE120..UKP..RHD200111-200301

main87245-02440iZZE120..LHD;ZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA; ZZE121..UKP..LHD..3D..4FC..TERRA200111-200405

main87245-02460iZZE123..UKP..LHD200405

main87245-02480iCDE120..LHD..DCR200304-200405

COLD SPEC

main87245-02660iNDE120..UKP..RHD200408

main87245-02680iNDE120..UKP..LHD200408

main87245-05560iCDE120..RHD..3D;CDE120..RHD..5D..(DCR,HDCR); CDE120..RHD..5D..DCRL200301-200405

main87245-05580iCDE120..LHD..(DCR,HDCR); CDE120..UKP..LHD..DCRL200301-200405

90466W0010

main90466-W0010

5 parts on this diagram · 7 diagrams in section
