Home
›
EU
›

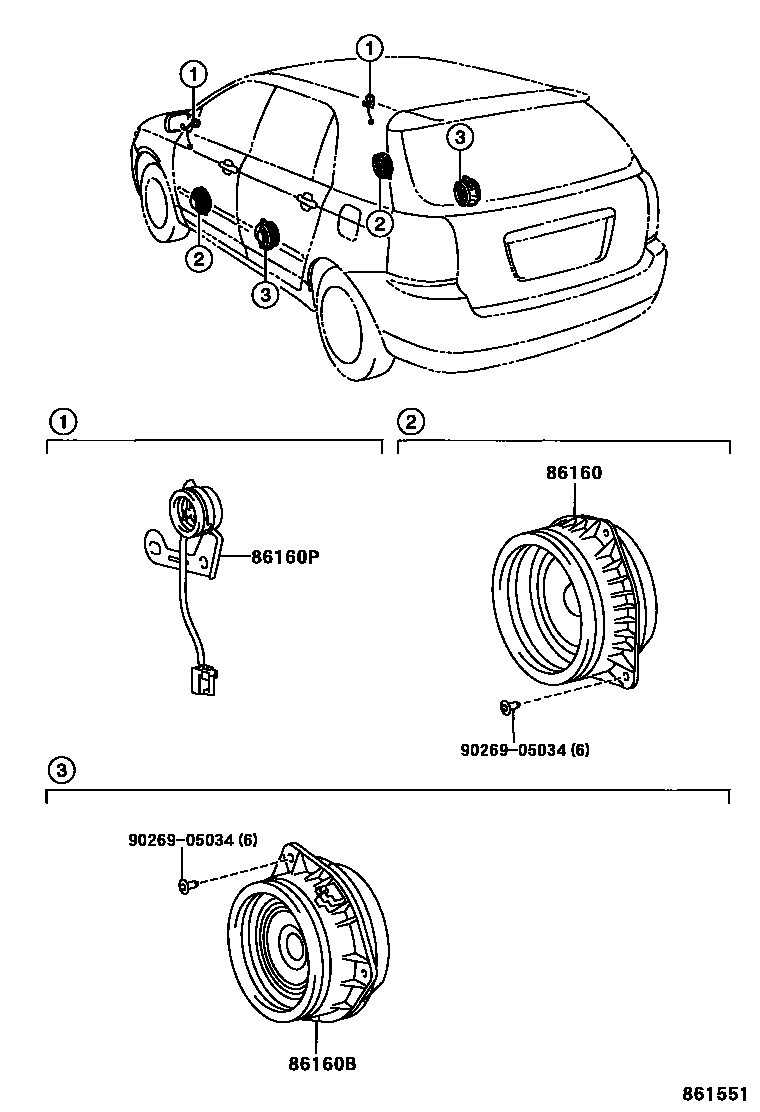

153550
›
SPEAKER
SPEAKER
86160
SPEAKER ASSY, FRONT NO.1
main
86160-02370
×2
i
CDE120,ZZE12#..UKP
200111-200405
86160B
SPEAKER ASSY, REAR
main
86160-02380
×2
i
CDE120,NDE120,ZZE12#..UKP
200405
86160P
SPEAKER ASSY, FRONT NO.2
main
86160-02390
i
CDE120,ZZE12#..SOL,TSP
200111-200305
RH
main
86160-02400
i
CDE120,NDE120,ZZE12#..UKP..(SOL,TSP)
200405
LH
9026905034
main
90269-05034
4 parts on this diagram · 1 diagram in section
