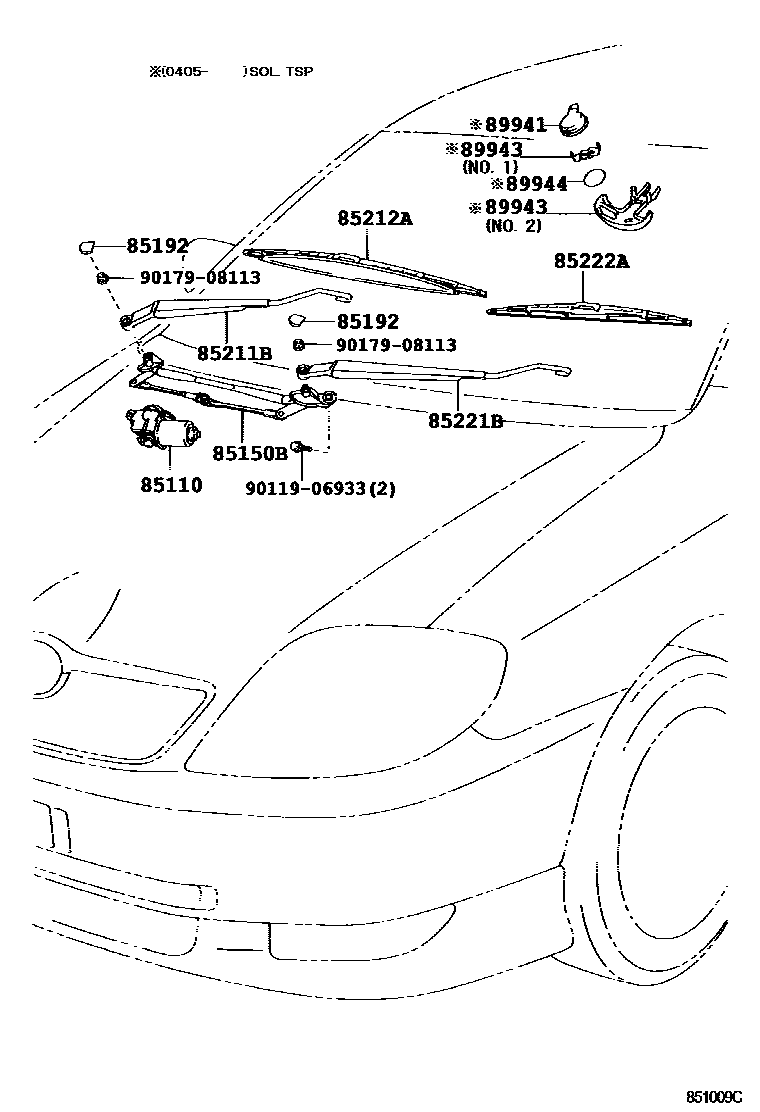

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02090iCDE120,NDE120,ZZE12#..UKP..RHD200111-200409

main85110-02090iCDE120,ZZE12#..UKP..RHD200208-200405

VALEO

main85110-02100iCDE120,ZZE12#..UKP..LHD200111-200409

main85110-02100iCDE120,ZZE12#..UKP..LHD200208-200405

VALEO

main85110-02140iCDE120,ZZE12#..UKP..RHD200208-200405

DENSO

main85110-02150iCDE120,ZZE12#..UKP..LHD200208-200405

DENSO

85150BLINK ASSY, WIPER

main85150-02070iCDE120,ZZE12#..UKP..RHD200111-200409

main85150-02070iCDE120,ZZE12#..UKP..RHD200208-200405

VALEO

main85150-02071iCDE120,NDE120,ZZE12#..UKP..RHD200410

main85150-02080iCDE120,NDE120,ZZE12#..UKP..LHD200111-200409

main85150-02080iCDE120,ZZE12#..UKP..LHD200208-200405

VALEO

main85150-02081iCDE120,NDE120,ZZE12#..UKP..LHD200410

main85150-02120iCDE120,ZZE12#..UKP..RHD200208-200405

DENSO

main85150-02130iCDE120,ZZE12#..UKP..LHD200208-200405

DENSO

85192COVER, WINDSHIELD WIPER ARM

main85292-02010iCDE120,NDE120,ZZE12#..UKP200111-200405

85211BARM, FRONT WIPER, RH

main85211-02100iCDE120,ZZE12#..UKP..RHD200111-200405

main85211-02110iCDE120,ZZE12#..UKP..LHD200111-200405

85212ABLADE, FR WIPER, RH

main85212-02100iCDE120,ZZE12#..UKP..RHD200111-200405

main85222-05090iCDE120,NDE120,ZZE12#..UKP..LHD200111-200405

85221BARM, FRONT WIPER, LH

main85221-02110iCDE120,NDE120,ZZE12#..UKP..RHD200111-200405

main85221-02120iCDE120,ZZE12#..UKP..LHD200111-200405

85222ABLADE, FR WIPER, LH

main85222-02120iCDE120,NDE120,ZZE12#..UKP..LHD200111-200405

main85222-05090iCDE120,NDE120,ZZE12#..UKP..RHD200111-200405

89941SENSOR, RAIN

main89941-05010iCDE120,NDE120,ZZE12#..UKP..(SOL,TSP)200405

89943COVER, RAIN SENSOR

main89943-05010iCDE120,NDE120,ZZE12#..UKP..(SOL,TSP)200405

NO.1

main89943-05020iCDE120,NDE120,ZZE12#..UKP..(SOL,TSP)200405

NO.2

89944TAPE, RAIN SENSOR

main89944-05010iCDE120,NDE120,ZZE12#..UKP..(SOL,TSP)200405-200702

9011906933

main90119-06933

9017908113

main90179-08113

12 parts on this diagram · 1 diagram in section
