METER

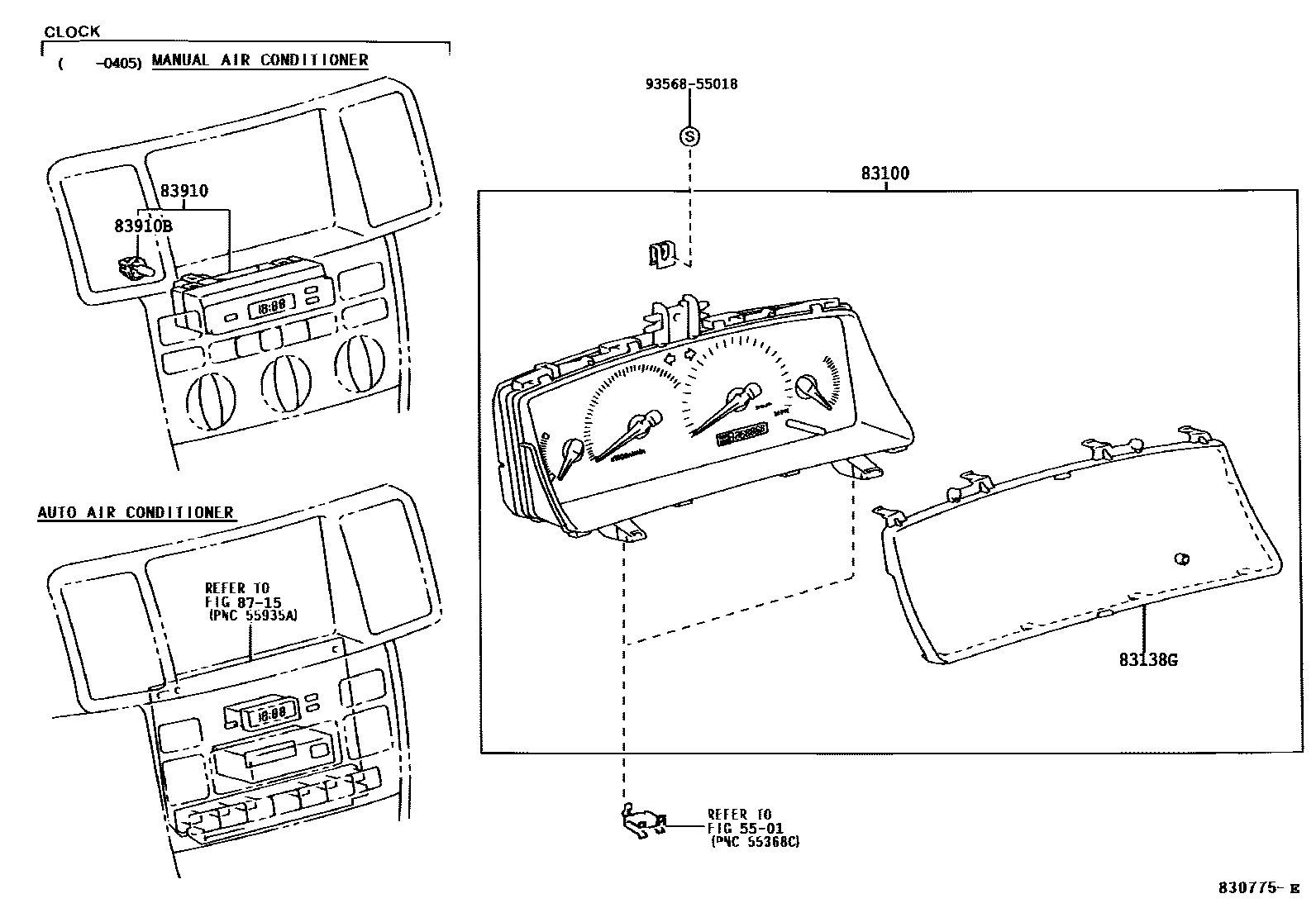

Parts diagram

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

83100METER ASSY, COMBINATION

main83800-02740i200111-200405

OPTITRON METER,KM/H

main83800-02750i200111-200405

OPTITRON METER,KM/H

main83800-02760i200111-200405

OPTITRON METER,KM/H

main83800-02770i200111-200405

OPTITRON METER,MILE/H+KM/H

main83800-02780i200111-200405

OPTITRON METER,MILE/H+KM/H

main83800-02790i200111-200405

OPTITRON METER,MILE/H+KM/H

main83800-02800i200111-200405

ANALOGUE METER,KM/H

main83800-02810i200111-200405

ANALOGUE METER,KM/H

main83800-02820i200111-200405

ANALOGUE METER,MILE/H+KM/H

main83800-02830i200111-200405

ANALOGUE METER,MILE/H+KM/H

main83800-02C40i200405

KM/H

main83800-02C50i200405

OPTITRON METER,KM/H

main83800-02C60i200405

OPTITRON METER,KM/H

main83800-02C70i200405

MILE/H+KM/H

main83800-02C80i200405

OPTITRON METER,MILE/H+KM/H

main83800-02C90i200405

OPTITRON METER,MILE/H+KM/H

main83800-02D00i200405

ANALOGUE METER,KM/H

main83800-02D10i200405

ANALOGUE METER,KM/H

main83800-02D20i200405

ANALOGUE METER,MILE/H+KM/H

main83800-02D30i200405

ANALOGUE METER,MILE/H+KM/H

main83800-12A00i200408

KM/H

main83800-12A10i200408

MILE/H+KM/H

83138GGLASS, COMBINATION METER

main83852-02740i200111-200405

OPTITRON METER

main83852-02800i200405

ANALOGUE METER

main83852-13100i200408

83910CLOCK ASSY

main83910-12580i200111-200405

83910BBULB, CLOCK INDICATOR

main90010-07020i200111-200405

14V 1.12W

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9356855018

main93568-55018

7 parts on this diagram · 1 diagram in section
