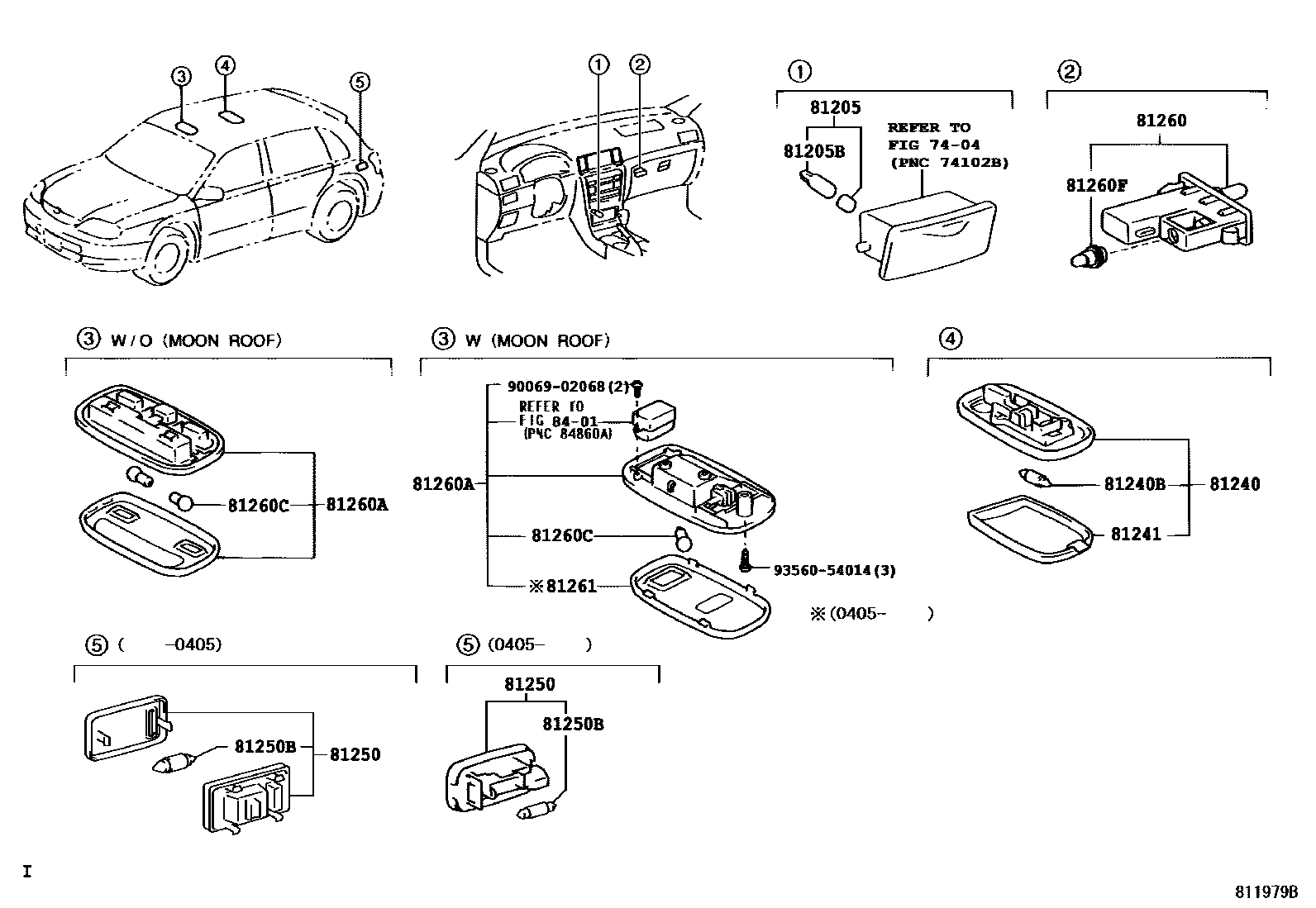

INTERIOR LAMP
81205LAMP SUB-ASSY, ASH RECEPTACLE
81205BBULB, ASH RECEPTACLE LAMP
12V 1.2W W/O SOCKET
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
main81240-13030-B0iCDE120,ZZE12#..UKP..(SOL,TSP)..(DCR,DCRL,HTWC,TWC); CDE120,ZZE120,121..UKP..TERRA200111-200405
LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,8#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81241LENS, ROOM LAMP, NO.1
IVORY,TRIM0#
main81241-12070-B0iZZE121..UKP..RHD;ZZE121..UKP..LHD..3D;ZZE121..UKP..LHD..5D..SOL;CDE120,NDE120,ZZE120,123..UKP;ZZE121..UKP..LHD..5D..5F..TERRA200405
LT.GRAY,TRIM1#
81250LAMP ASSY, ROOM, NO.2
main81250-05010-B2iCDE120,ZZE120,121..UKP..SOL..(DCR,DCRL,HTWC); CDE120,ZZE120,121..UKP..TERRA; ZZE123..UKP200111-200405
DK.GRAY,TRIM0#,1#; DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,8#
81250BBULB, ROOM LAMP, NO.2
12V 5W
12V 5W
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
W(MOON ROOF),IVORY,TRIM0#
main81260-05050-B2iCDE120,ZZE12#..UKP..(SOL,TSP)..(DCR,DCRL,HTWC,TWC); CDE120,ZZE120,121..UKP..TERRA200111-200405
W(MOON ROOF),LT.GRAY,TRIM1#; W(MOON ROOF),LT.GRAY,TRIM1#,8#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),LT.GRAY,TRIM1#
W(MOON ROOF),IVORY,TRIM0#
W(MOON ROOF),LT.GRAY,TRIM1#
W/O(MOON ROOF),IVORY,TRIM0#
main81260-12110-B0iCDE120,ZZE12#..UKP..(SOL,TSP)..(DCR,DCRL,HTWC,TWC); CDE120,ZZE120,121..UKP..TERRA200111-200405
W/O(MOON ROOF),LT.GRAY,TRIM1#; W/O(MOON ROOF),LT.GRAY,TRIM1#,8#
81260CBULB(FOR MAP LAMP)
12V 5W,W(MOON ROOF)
12V 8W,W/O(MOON ROOF)
12V 5W,W(MOON ROOF)
81260FBULB(FOR GLOVE BOX LAMP)
12V 1.2W W/O SOCKET
81261LENS AND COVER, MAP LAMP
IVORY,TRIM0#
LT.GRAY,TRIM1#
8401SWITCH & RELAY & COMPUTER
9006902068
main90069-02068
9356054014
main93560-54014
15 parts on this diagram · 1 diagram in section
