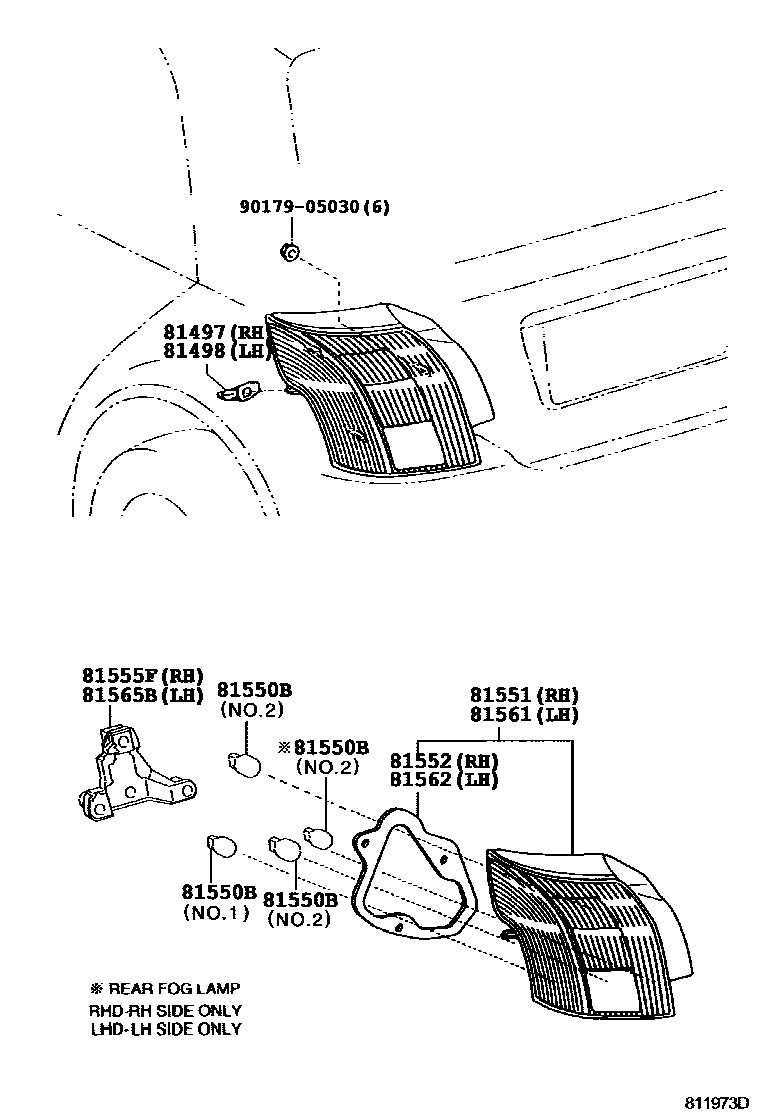

REAR COMBINATION LAMP

0001 1 0002 1

81497COVER, REAR COMBINATION LAMP, RH

main81497-13010iCDE120,NDE120,ZZE12#..UKP200405

81498COVER, REAR COMBINATION LAMP, LH

main81498-13010iCDE120,ZZE12#..UKP200111-200405

81550BBULB(FOR REAR COMBINATION LAMP)

main90080-81089×2iCDE120,ZZE12#..UKP200405-200406

12V 21/5W,NO.1

main90080-81090×5iCDE120,ZZE12#..UKP200111-200405

12V 21W,NO.2

main90981-WC005×2iCDE120,NDE120,ZZE12#..UKP200407

12V 21/5W,NO.1

main90981-WC006×5iCDE120,NDE120,ZZE12#..UKP200407

12V 21W,NO.2

81551LENS, REAR COMBINATION LAMP, RH

main81551-02140iCDE120,ZZE12#..UKP..RHD200111-200405

main81551-02150iCDE120,ZZE12#..UKP..LHD200111-200405

main81551-02300iCDE120,NDE120,ZZE12#..UKP..LHD200405

main81551-02310iCDE120,NDE120,ZZE12#..UKP..RHD200405

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-02140iCDE120,ZZE12#..UKP200111-200405

main81552-02300iCDE120,NDE120,ZZE12#..UKP200405

81555FHOLDER, REAR COMBINATION LAMP BULB, RH

main81555-02140iCDE120,ZZE12#..UKP200111-200405

main81555-02300iCDE120,NDE120,ZZE12#..UKP200405

81561LENS, REAR COMBINATION LAMP, LH

main81561-02140iCDE120,ZZE12#..UKP..RHD200111-200405

main81561-02150iCDE120,ZZE12#..UKP..LHD200111-200405

main81561-02300iCDE120,NDE120,ZZE12#..UKP..LHD200405

main81561-02310iCDE120,NDE120,ZZE12#..UKP..RHD200405

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-02140iCDE120,ZZE12#..UKP200111-200405

main81552-02300iCDE120,NDE120,ZZE12#..UKP200405

81565BHOLDER, REAR COMBINATION LAMP BULB, LH

main81565-02140iCDE120,ZZE12#..UKP200111-200405

main81565-02300iCDE120,NDE120,ZZE12#..UKP200405

9017905030

main90179-05030

10 parts on this diagram · 2 diagrams in section
