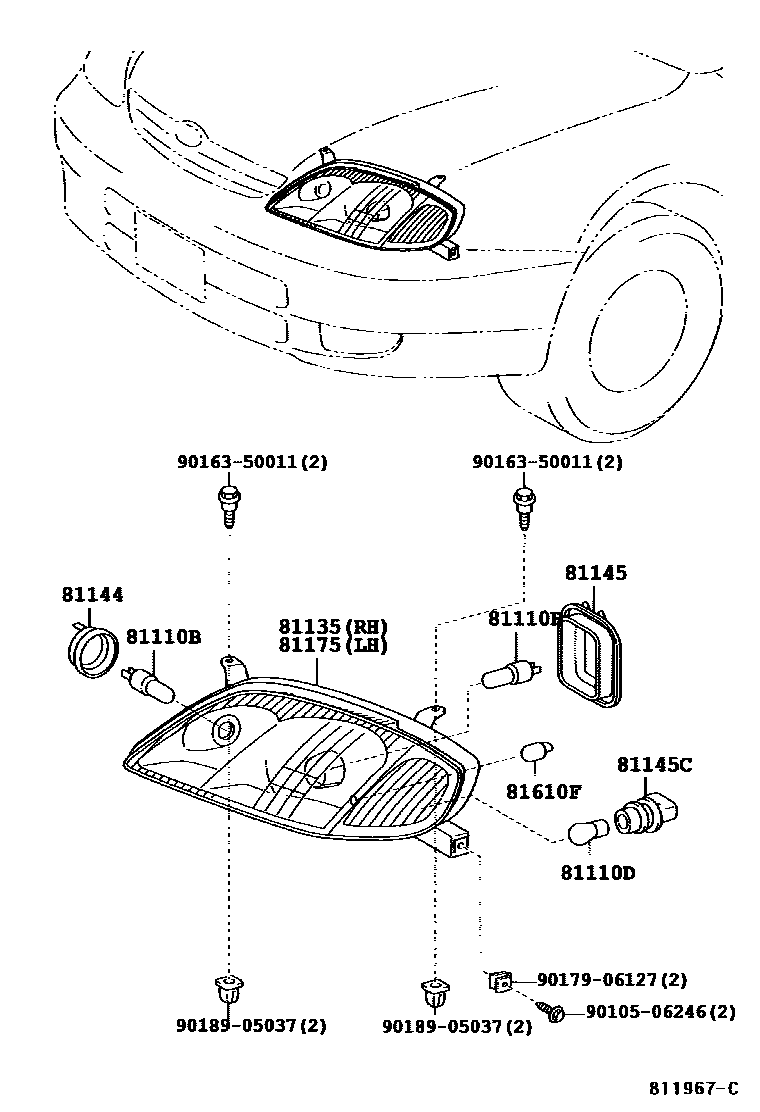

HEADLAMP

0001 1 0002 1 0003 1

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81097×2iZZE123..UKP200405-200511

12V 55W,GE

main90080-81098×2iZZE123..UKP200405-200511

12V 55W,PHILIPS

main90981-13079×2iCDE120,ZZE120,121..UKP; NDE120..UKP200405

12V 55W,HALOGEN,OSRAM

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81046×2iCDE120,ZZE12#..UKP200111-200405

12V 21W

81135UNIT ASSY, HEADLAMP, RH

main81130-02150iCDE120..UKP..LHD..HDCR; CDE120..UKP..RHD..HDCR200111-200304

RH TRAFFIC SPEC

main81130-02160iCDE120..UKP..RHD..HDCR200111-200304

main81130-02380iCDE120,NDE120,ZZE12#..UKP..LHD; CDE120,NDE120,ZZE12#..UKP..RHD200405

RH TRAFFIC SPEC

main81130-02390iCDE120,NDE120,ZZE12#..UKP..RHD200405

81144COVER, HEADLAMP, NO.1

main90069-81025×2iNDE120..UKP200405

81145COVER, HEADLAMP, NO.2

main90069-81026×2iCDE120,ZZE12#..UKP200407

81145CCOVER, HEADLAMP SOCKET, NO.2

main90069-81027×2iCDE120,ZZE12#..UKP200111-200405

81175UNIT ASSY, HEADLAMP, LH

main81170-02150iCDE120..UKP..LHD..HDCR; CDE120..UKP..RHD..HDCR200111-200304

RH TRAFFIC SPEC

main81170-02160iCDE120..UKP..RHD..HDCR200111-200304

main81170-02380iCDE120,NDE120,ZZE12#..UKP..LHD; CDE120,NDE120,ZZE12#..UKP..RHD200405

RH TRAFFIC SPEC

main81170-02390iCDE120,NDE120,ZZE12#..UKP..RHD200405

81610FBULB(FOR CLEARANCE LAMP)

main90080-81080×2iCDE120,ZZE12#..UKP200111-200405

12V 5W

main90981-WB003×2iCDE120,NDE120,ZZE12#..UKP200407

12V 5W

9010506246

main90105-06246

9016350011

main90163-50011

9017906127

main90179-06127

9018905037

main90189-05037

12 parts on this diagram · 3 diagrams in section
