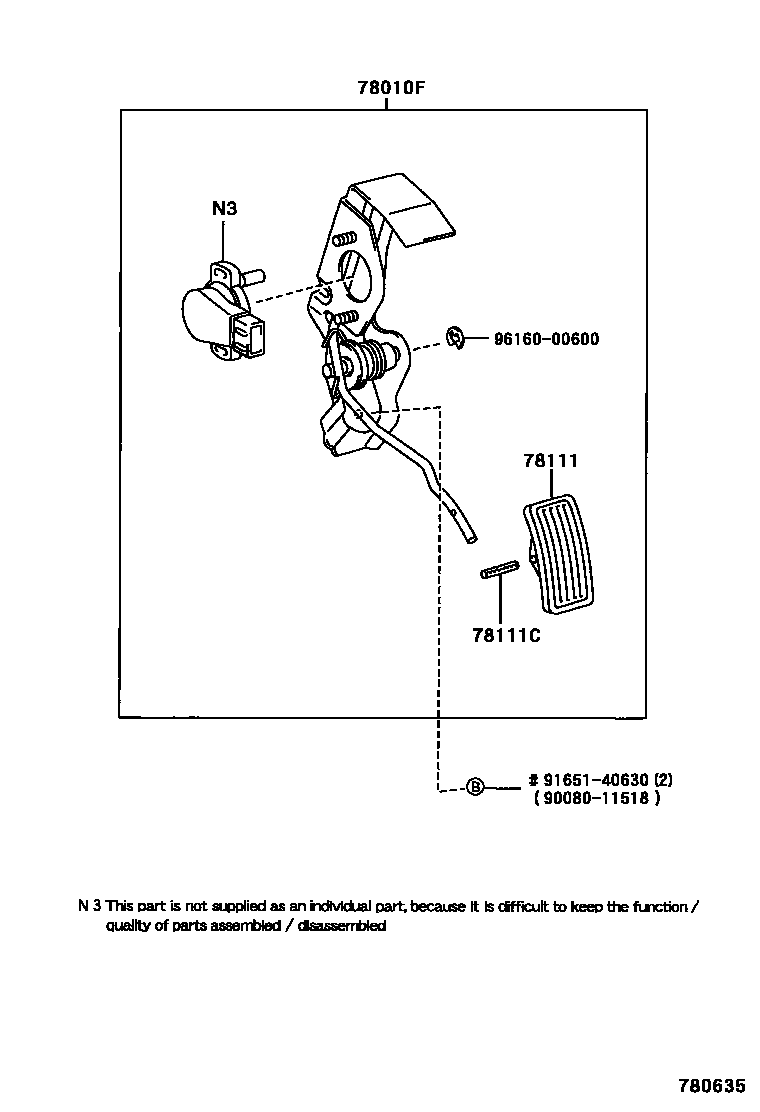

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

78010FPEDAL ASSY, ACCELERATOR

main78010-13010iCDE120..UKP..LHD200111-200311

main78010-13011iCDE120,NDE120,ZZE121..UKP..LHD..5F200405

main78010-13021iCDE120..UKP..RHD200111-200311

main78010-13022iCDE120..UKP..RHD200311-200403

main78010-13023iCDE120,NDE120,ZZE121..UKP..RHD200405

main78010-20122iNDE120,ZZE121..UKP..LHD..(4FC,5FS)200405

78111PEDAL, ACCELERATOR

main78101-02010iZZE123..UKP200405

ALUMINUM

main78111-05040iZZE120..UKP..RHD200405

main78111-05050iZZE12#..UKP..LHD..MTM200301-200405

(L)

main78111-20060iZZE12#..UKP..LHD..MTM200301-200405

(J)

main78111-32010iZZE121..UKP..LHD..4FC200111-200405

main78111-32020×2iCDE120..UKP..RHD200111-200405

main78111-35030×2iCDE120..UKP..LHD200111-200405

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iZZE121..UKP..LHD..4FC200111-200405

main90254-04019×2iCDE120..UKP; ZZE120,123..UKP;ZZE121..UKP..RHD;ZZE121..UKP..LHD..5F200111-200405

9008011518

main90080-11518

9165140630

main91651-40630

9616000600

main96160-00600

6 parts on this diagram · 9 diagrams in section
