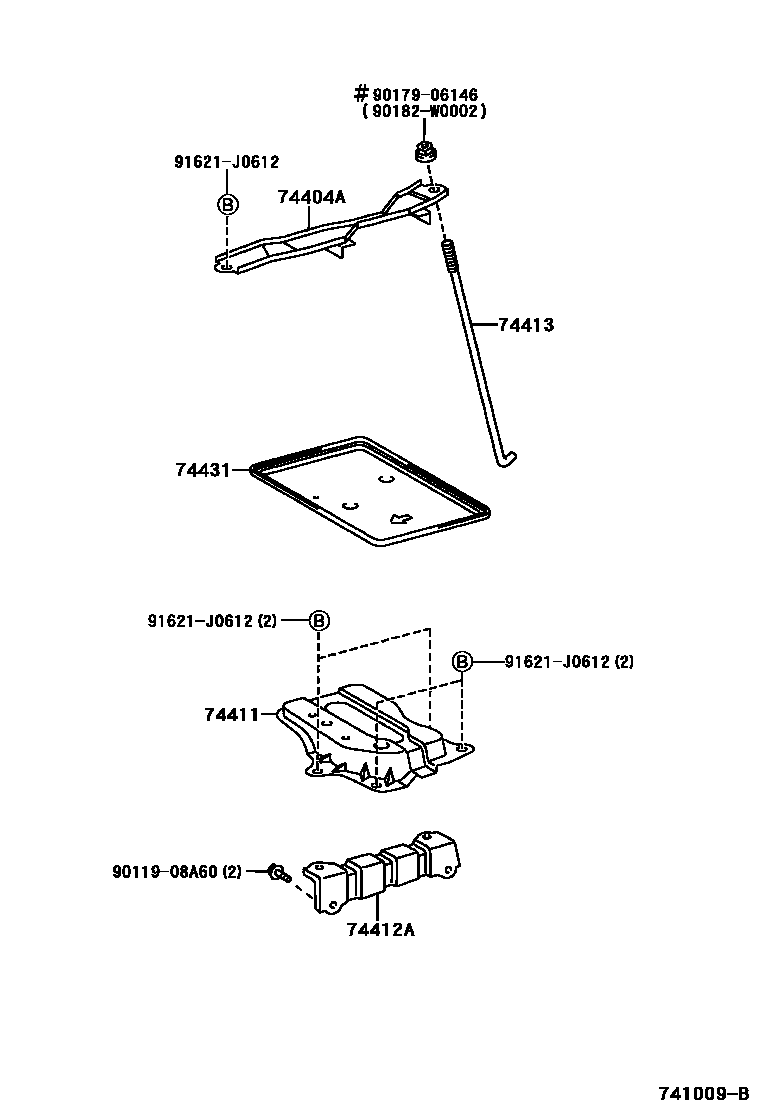

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-13040iZZE12#..UKP200111-200301

main74404-13041iZZE12#..UKP200301-200405

main74404-13042iZZE12#..UKP200502-200506

main74404-13043iZZE12#..UKP200506

main74404-13050iCDE120..UKP200111-200405

main74404-13051iCDE120,NDE120..UKP200405-200506

main74404-13052iCDE120,NDE120..UKP200506

74411CARRIER, BATTERY

main74411-02020iCDE120,ZZE12#..UKP200111-200405

74412ACARRIER, BATTERY, NO.2

main74412-02010iCDE120,NDE120,ZZE12#..UKP200405

74413BOLT, BATTERY CLAMP

main74451-02012iCDE120,NDE120,ZZE12#..UKP200506

main74451-12130iCDE120,NDE120,ZZE12#..UKP200405-200505

74431TRAY, BATTERY

main74431-02040iCDE120..UKP200405

main74431-02050iZZE12#..UKP200111-200311

main74431-02051iZZE12#..UKP200311-200405

main74431-12051iNDE120..UKP200408

9011908A60

main90119-08A60

9017906146

main90179-06146

90182W0002

main90182-W0002

91621J0612

main91621-J0612

9 parts on this diagram · 1 diagram in section
