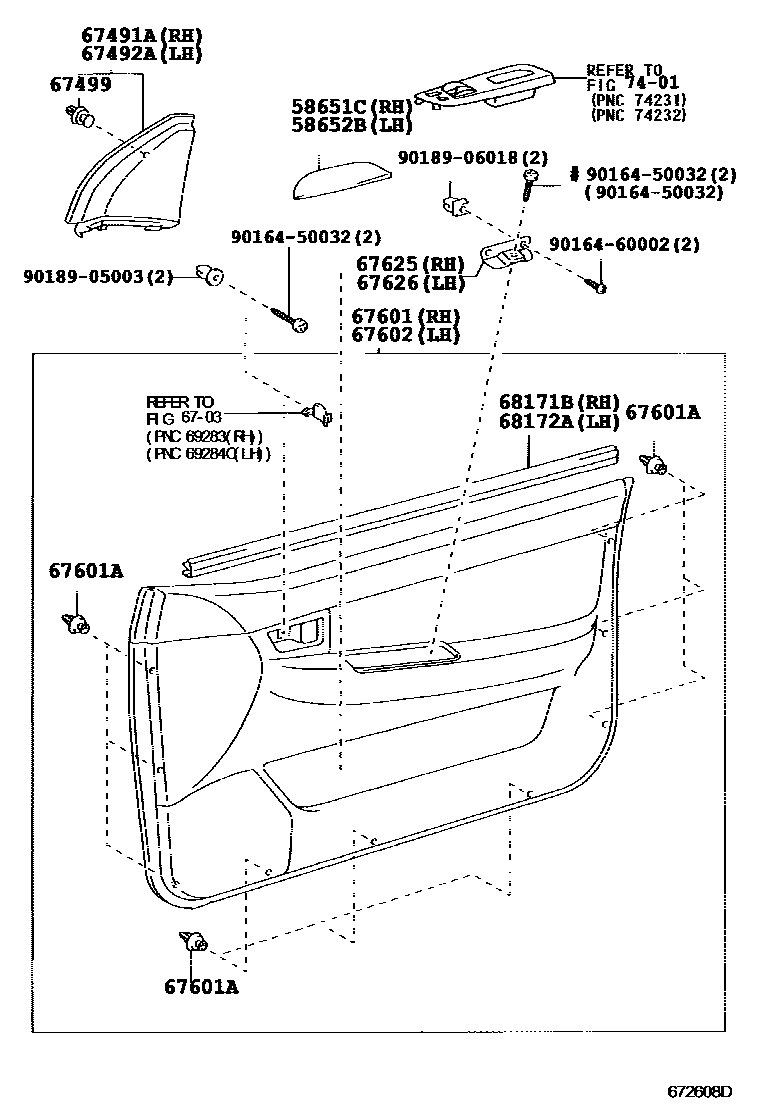

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

58651CPLATE, FRONT DOOR MAT, RH

main58651-02060-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

IVORY,TRIM0#

main58651-02060-B0iCDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC)200111-200405

DK.GRAY,TRIM1#

main58651-02060-J0iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DK.BLUE,TRIM8#

main58651-02070-A0iCDE120..UKP..5D..HDCR200111-200304

IVORY,TRIM0#

main58651-02070-B0iCDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC)200111-200405

DK.GRAY,TRIM1#

main58651-02070-J0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DK.BLUE,TRIM8#

58652BPLATE, FRONT DOOR MAT, LH

main58652-02040-A0iCDE120..UKP..3D..HDCR200111-200304

IVORY,TRIM0#

main58652-02040-B0iCDE120..UKP..3D..HDCR200111-200304

DK.GRAY,TRIM1#

main58652-02040-J0iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DK.BLUE,TRIM8#

main58652-02050-A0iCDE120,ZZE120,121..UKP..5D..SOL..(DCR,DCRL,HTWC)200111-200405

IVORY,TRIM0#

main58652-02050-B0iCDE120..UKP..5D..HDCR200111-200304

DK.GRAY,TRIM1#

main58652-02050-J0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DK.BLUE,TRIM8#

6703FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-03

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12460iCDE120,NDE120,ZZE120,121..UKP..TERRA200405

main67491-12470iCDE120,NDE120,ZZE120,121..UKP..TERRA200405

W(MANUAL REMOTE CONTOROL MIRROR)

main67491-12480iCDE120,NDE120,ZZE120,121..UKP..(SOL,TSP)200405

W(TWEETER)

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-12460iCDE120,ZZE120,121..UKP..TERRA200111-200405

main67492-12470iCDE120,NDE120,ZZE120,121..UKP..TERRA200405

W(MANUAL REMOTE CONTOROL MIRROR)

main67492-12480iZZE123..UKP200405-200511

W(TWEETER)

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-12060×2iCDE120,NDE120,ZZE120,121..UKP200405

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-02B90-B0iCDE120,NDE120,ZZE120,121..UKP..LHD..3D..TERRA200405-200607

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67610-02B91-B0iCDE120,NDE120,ZZE120,121..UKP..LHD..3D..TERRA200607-200702

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67610-02N70-B0iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..TERRA200607-200702

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67610-0Z050-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE D-*104,IVORY,TRIM0#

main67610-0Z050-B0iCDE120,NDE120,ZZE120,121..UKP..3D..TERRA200405-200510

DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1#

main67610-0Z060-B0iCDE120,NDE120,ZZE120,121..UKP..3D..TERRA200405-200607

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67650-02180-B0iZZE123..UKP..3D200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67650-02190-A0iCDE120,ZZE120,121..UKP..3D..SOL..(DCR,DCRL,HTWC)200111-200405

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67650-02190-B0iCDE120..UKP..3D..HDCR200111-200304

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67650-02200-B1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67650-02200-J1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.BLUE,TRIM8#

main67650-02210-B1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67650-02210-J1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8#

main67650-02220-B0iCDE120,ZZE12#..UKP..3D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200307

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67650-02221-B1iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

main67650-02230-B0iZZE123..UKP..5D200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67650-02240-A0iCDE120,ZZE120,121..UKP..5D..SOL..(DCR,DCRL,HTWC)200111-200405

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67650-02240-B0iCDE120,ZZE120,121..UKP..5D..SOL..(DCR,DCRL,HTWC)200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67650-02250-B1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67650-02250-J1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.BLUE,TRIM8#

main67650-02260-B1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67650-02260-J1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8#

main67650-02270-B0iCDE120,ZZE12#..UKP..5D..(SOL,TSP)200111-200301

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67650-02271-B1iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

main67650-02280-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE D-*104,IVORY,TRIM0#

main67650-02280-B3iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1#

main67650-02290-B1iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200405-200607

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67650-02300-B1iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..TERRA200405-200607

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-10161×9iCDE120,ZZE12#..UKP..3D; CDE120,ZZE12#..UKP..5D200306-200405

(J)

main90467-W0005×9iCDE120,ZZE12#..UKP..3D; CDE120,ZZE12#..UKP..5D200306-200405

(L)

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-02B90-B0iCDE120,NDE120,ZZE120,121..UKP..LHD..3D..TERRA200405-200607

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67620-02B91-B0iCDE120,NDE120,ZZE120,121..UKP..LHD..3D..TERRA200607-200702

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67620-02N70-B0iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..TERRA200607-200702

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67620-0Z050-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE D-*104,IVORY,TRIM0#

main67620-0Z050-B0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1#

main67620-0Z060-B0iCDE120,NDE120,ZZE120,121..UKP..3D..TERRA200405-200607

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67660-02190-B0iZZE123..UKP..3D200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67660-02200-A0iCDE120,ZZE120,121..UKP..3D..SOL..(DCR,DCRL,HTWC)200111-200405

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67660-02200-B0iCDE120,ZZE120,121..UKP..3D..SOL..(DCR,DCRL,HTWC)200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67660-02210-B1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67660-02210-J1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.BLUE,TRIM8#

main67660-02220-B1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67660-02220-J1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8#

main67660-02230-B0iCDE120,ZZE12#..UKP..3D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200307

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67660-02231-B1iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

main67660-02240-B0iZZE123..UKP..5D200405-200702

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM1#

main67660-02250-A0iCDE120..UKP..5D..HDCR200111-200304

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67660-02250-B0iCDE120,ZZE120,121..UKP..5D..SOL..(DCR,DCRL,HTWC)200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67660-02260-B1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.GRAY,TRIM1#

main67660-02260-J1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104 & W(POWER WINDOW),DK.BLUE,TRIM8#

main67660-02270-B1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67660-02270-J1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8#

main67660-02280-B0iCDE120,ZZE12#..UKP..5D..(SOL,TSP)200111-200301

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67660-02281-B1iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

main67660-02290-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE D-*104,IVORY,TRIM0#

main67660-02290-B3iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1#

main67660-02300-B1iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200405-200607

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67660-02310-B1iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..TERRA200405-200607

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.DRAY,TRIM1#

67625BRACKET, FRONT DOOR TRIM, RH

main67625-12150iCDE120,NDE120,ZZE12#..UKP..3D200405

67626BRACKET, FRONT DOOR TRIM, LH

main67625-12150iCDE120,ZZE12#..UKP..3D200111-200405

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-12290iCDE120,ZZE12#..UKP..5D200111-200301

main68171-12310iCDE120,ZZE12#..UKP..3D200111-200308

main68171-12311iCDE120,ZZE12#..UKP..3D200308-200405

main68171-12320iCDE120,ZZE12#..UKP..5D200301-200405

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-12210iCDE120,ZZE12#..UKP..5D200111-200301

main68172-12230iCDE120,ZZE12#..UKP..3D200111-200308

main68172-12231iCDE120,ZZE12#..UKP..3D200308-200405

main68172-12240iCDE120,ZZE12#..UKP..5D200301-200405

7401ARMREST & VISOR

→ Go to FIG 74-01

9016450032

main90164-50032

9016460002

main90164-60002

9018905003

main90189-05003

9018906018

main90189-06018

18 parts on this diagram · 6 diagrams in section
