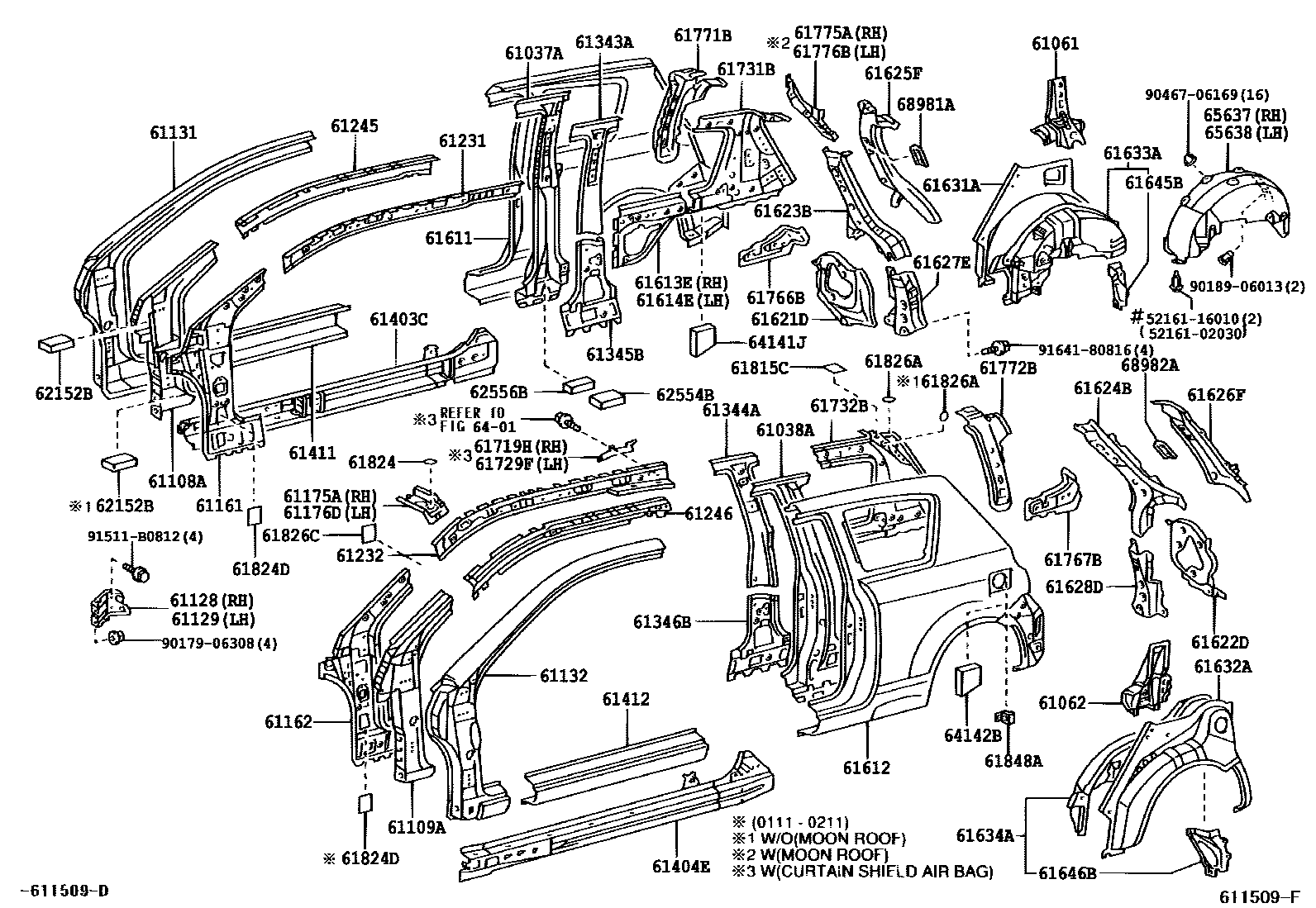

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-02030i200111-200301

main61037-02040i200111-200301

main61037-02041i200301-200405

main61037-02070i200301-200405

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-02030i200111-200301

main61038-02040i200111-200301

main61038-02041i200301-200405

main61038-02070i200405

61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH

main61061-02010i200111-200405

61062REINFORCEMENT SUB-ASSY, WHEEL HOUSE, LH

main61062-02010i200111-200405

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-02060i200111-200405

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-02060i200111-200405

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61103-02020i200111-200405

main61103-02050i200405

61129REINFORCEMENT, COWL SIDE PANEL, LH

main61104-02020i200111-200405

main61104-02050i200405

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-02060i200405

main61131-02070i200405

main61131-02130i200602

W(SIDE MUDGUARD)

main61131-02160i200405

W(SIDE MUDGUARD)

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-02090i200405

main61132-02100i200405

main61132-02160i200405

W(SIDE MUDGUARD)

main61132-02190i200602

W(SIDE MUDGUARD)

61161PILLAR, FRONT BODY, UPPER INNER RH

main61023-02100i200111-200301

main61023-02101i200301-200405

main61023-02120i200111-200301

main61023-02121i200301-200405

61162PILLAR, FRONT BODY, UPPER INNER LH

main61024-02100i200111-200301

main61024-02101i200301-200304

main61024-02110i200111-200301

main61024-02111i200405-200702

61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

main61175-02060i200111-200405

61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

main61176-02060i200111-200405

61231RAIL, ROOF SIDE, INNER RH

main61231-02060i200111-200301

main61231-02061i200301-200405

main61231-13220i200111-200301

main61231-13221i200301-200405

61232RAIL, ROOF SIDE, INNER LH

main61232-02060i200111-200301

main61232-02061i200301-200405

main61232-13200i200111-200301

main61232-13201i200405

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-02030i200111-200405

main61245-13050i200111-200405

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-02030i200111-200405

main61246-13050i200405

61343APILLAR, CENTER BODY, INNER RH

main61343-02040i200111-200301

main61343-02041i200301-200405

main61343-02060i200111-200405

61344APILLAR, CENTER BODY, INNER LH

main61344-02040i200111-200301

main61344-02041i200405

main61344-02060i200111-200405

61345BPILLAR, CENTER BODY, INNER LOWER RH

main61345-02020i200111-200304

main61345-02021i200304-200405

61346BPILLAR, CENTER BODY, INNER LOWER LH

main61346-02020i200111-200304

main61346-02021i200304-200405

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-02010i200405

main61403-02020i200111-200405

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-02010i200405

main61404-02020i200405

61411PANEL, ROCKER, OUTER RH

main61411-02060i200405

main61411-02070i200405

W(SIDE MUDGUARD)

61412PANEL, ROCKER, OUTER LH

main61412-02060i200111-200405

main61412-02070i200405-200510

W(SIDE MUDGUARD)

61611PANEL, QUARTER, RH

main61611-02110i200405

main61611-02120i200111-200405

main61611-02190i200510

W(SIDE MUDGUARD)

main61611-02230i200405

W(SIDE MUDGUARD)

61612PANEL, QUARTER, LH

main61612-02080i200111-200405

main61612-02090i200111-200405

main61612-02160i200510

W(SIDE MUDGUARD)

main61612-02200i200405-200511

W(SIDE MUDGUARD)

61613EPANEL, QUARTER, INNER RH

main61613-02010i200111-200405

61614EPANEL, QUARTER, INNER LH

main61614-02010i200111-200405

61621DTROUGH, BACK DOOR OPENING, RH

main61621-02070i200111-200405

main61621-02071i200405

61622DTROUGH, BACK DOOR OPENING, LH

main61622-02070i200111-200405

main61622-02071i200405

61623BTROUGH, BACK DOOR OPENING, REAR RH

main61623-02020i200405

61624BTROUGH, BACK DOOR OPENING, REAR LH

main61624-02020i200111-200405

61625FEXTENSION, QUARTER PANEL, UPPER RH

main61625-02020i200111-200405

61626FEXTENSION, QUARTER PANEL, UPPER LH

main61626-02020i200111-200405

61627EEXTENSION, QUARTER PANEL, REAR LOWER RH

main61627-02030i200111-200405

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-02030i200111-200405

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-02060i200111-200304

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-02060i200111-200304

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-02918i200111-200201

main61607-02925i200301-200405

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-02916i200111-200201

main61608-02923i200201-200301

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-02040i200111-200405

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-02040i200111-200405

61719HBRACKET SUB-ASSY, ROOF SIDE RAIL, RH

main61707-12040i200301-200405

main61707-12060i200301-200405

61729FBRACKET SUB-ASSY, ROOF SIDE RAIL, LH

main61708-12030i200405

main61708-12050i200301-200405

61731BPANEL, ROOF SIDE, INNER RH

main61731-02060i200111-200301

main61731-02061i200301-200405

main61731-02070i200111-200301

main61731-02071i200405

61732BPANEL, ROOF SIDE, INNER LH

main61732-02060i200111-200301

main61732-02061i200301-200405

main61732-02070i200111-200301

main61732-02071i200301-200405

61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH

main61766-13080i200111-200405

61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH

main61767-13070i200111-200405

61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH

main61771-02020i200111-200405

61772BFRAME, BACK DOOR OPENING UPPER CORNER, LH

main61772-02020i200111-200405

61775AGUIDE, ROOF SIDE DRAIN HOSE, NO.1 RH

main61775-13020i200111-200405

61776BGUIDE, ROOF SIDE DRAIN HOSE, NO.1 LH

main61776-13020i200111-200405

61815CCOVER, ROOF SIDE, INNER UPPER

main61815-02030×2i200111-200405

61824PLATE, NOISE CONTROL, NO.1

main61824-02040×2i200111-200405

61824DPLATE, NOISE CONTROL, NO.1

main61824-02090i200111-200211

61826APLATE, NOISE CONTROL, NO.3

main61824-02040×4i200111-200405

W(MOON ROOF)

61826CPAD, NOISE SHUTTER, NO.3

main61826-12020×2i200111-200401

main61826-52020×2i200401-200405

61848ARETAINER, QUARTER PANEL, LH

main61848-52010i200111-200405

62152BPAD, COWL SIDE SILENCER, NO.2

main62554-02050×2i200111-200405

W(MOON ROOF)

62554BPAD, PILLAR, NO.4

main62554-02030×2i200111-200405

62556BPAD, PILLAR, NO.6

main62556-02020×2i200111-200405

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

64141JSILENCER, QUATER PANEL, RH

main64141-02010i200111-200405

64142BSILENCER, QUATER PANEL, LH

main64142-02010i200111-200405

65637LINER, REAR WHEEL HOUSE, RH

main65637-02010i200111-200405

65638LINER, REAR WHEEL HOUSE, LH

main65638-02010i200111-200405

68981ARETAINER, BACK DOOR STAY, RH

main68981-13040i200111-200405

68982ARETAINER, BACK DOOR STAY, LH

main68981-13040i200111-200405

5216102030CUSHION, REAR BUMPER GUARD, NO.1

main52161-02030

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9017906308

main90179-06308

9018906013

main90189-06013

9046706169

main90467-06169

91511B0812

main91511-B0812

9164180816

main91641-80816

SIDE MEMBER
