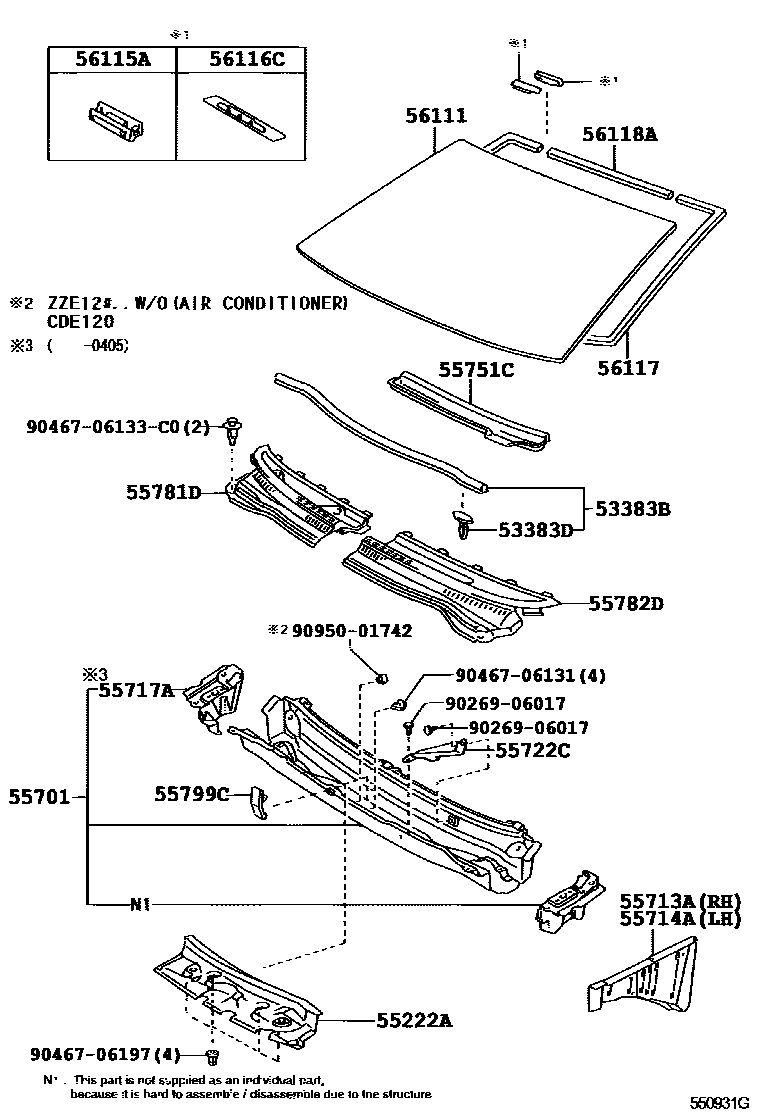

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-02060iCDE120,NDE120,ZZE12#..UKP200405

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108×8iCDE120,ZZE12#..UKP200111-200405

55222AINSULATOR, DASH PANEL, OUTER CENTER

main55224-02010iCDE120,ZZE12#..UKP200111-200308

main55224-02011iCDE120,ZZE12#..UKP200308-200405

55701PANEL SUB-ASSY, COWL

main55700-02210iCDE120..UKP..RHD..HDCR200111-200304

main55700-02211iCDE120,NDE120,ZZE12#..UKP..RHD200405-200507

main55700-02220iCDE120,ZZE12#..UKP..LHD..(DCR,DCRL,HTWC,TWC)200111-200405

main55700-02221iCDE120,NDE120,ZZE12#..UKP..LHD200405-200508

main55700-02350iCDE120,NDE120,ZZE12#..UKP..RHD200508-200702

main55700-02360iCDE120,NDE120,ZZE12#..UKP..LHD200508-200702

55713APANEL, COWL TOP SIDE, RH

main55713-02030iCDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)200111-200405

55714APANEL, COWL TOP SIDE, LH

main55714-02030iCDE120..UKP..HDCR200111-200304

55717APANEL, COWL TOP SIDE, INNER RH

main55717-02900iCDE120,ZZE12#..UKP..LHD200111-200405

55722CBRACE, COWL TOP TO COWL, INNER

main55721-12100iCDE120,NDE120,ZZE12#..UKP..LHD200405

main55721-12110iCDE120,NDE120,ZZE12#..UKP..RHD200405

55751CSHIELD, COWL VENTILATOR SPLASH

main55751-02030iCDE120,ZZE12#..UKP..RHD200111-200405

main55751-02040iCDE120,ZZE12#..UKP..LHD200111-200405

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-02140iCDE120,ZZE12#..UKP..RHD200111-200405

main55708-02150iCDE120,ZZE12#..UKP..LHD200111-200405

main55708-02160iCDE120,ZZE12#..UKP..LHD200111-200405

COLD SPEC

main55708-02240iCDE120,NDE120..UKP..LHD200405

main55708-02250iCDE120,NDE120..UKP..LHD200405

COLD SPEC

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-02060iZZE12#..UKP..RHD200405

main55709-02070iCDE120,ZZE12#..UKP..LHD200111-200405

main55709-02080iCDE120,ZZE12#..UKP..LHD200111-200405

COLD SPEC

main55709-02150iCDE120,NDE120..UKP..RHD200405

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-13020iCDE120,ZZE12#..UKP200111-200405

56111GLASS, WINDSHIELD

main56101-02040iZZE120,121..UKP..TERRA200405

*LAM,T=4.96,GREEN

main56101-02180iZZE120,121..UKP..SOL200405

*EHL,T=4.96,GREEN,W(RAIN SENSOR)

main56101-02190iCDE120,NDE120..UKP..TERRA200405

*LAM,T=4.96,GREEN

main56101-02200iCDE120,NDE120,ZZE123..UKP..(SOL,TSP)200405

*LAM=4.96,GREEN,W(RAIN SENSOR)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iCDE120,ZZE12#..UKP200111-200405

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iCDE120,ZZE12#..UKP200111-200405

56117DAM, FRONT PILLAR, OUTER

main56117-02040iCDE120,ZZE12#..UKP200111-200405

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main56117-02040iCDE120,ZZE12#..UKP200111-200405

*D,L=686

9026906017

main90269-06017

9046706131

main90467-06131

9046706133C0

main90467-06133C0

9046706197

main90467-06197

9095001742

main90950-01742

22 parts on this diagram · 2 diagrams in section
