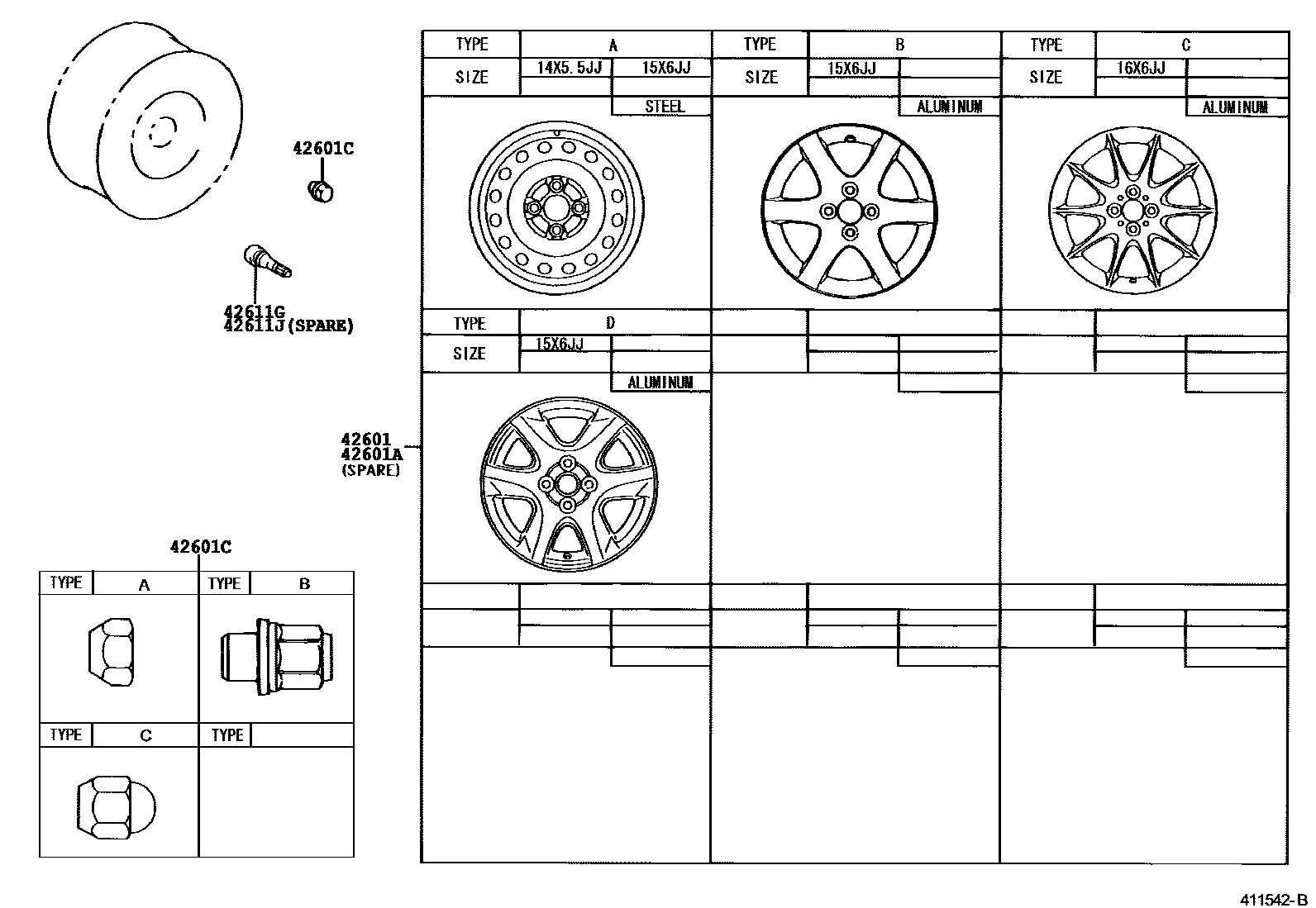

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-02410×4iZZE120..UKP..TERRA200111-200405

14X5.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-02420×4iZZE123..UKP200511-200702

15X6JJ,TYPE A:REFER TO ILLUSTRATION

main42611-02430×4iCDE120,NDE120,ZZE120,121..UKP200405-200702

15X6JJ, #,TYPE B:REFER TO ILLUSTRATION

main42611-02440×4iZZE123..UKP200111-200405

16X6JJ,TYPE C:REFER TO ILLUSTRATION

main42611-YY100×4iCDE120,NDE120,ZZE120,121..UKP..(SOL,TSP)200405-200702

15X6JJ, #,TYPE D:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-02410iZZE120..UKP..TERRA200111-200405

14X5.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-02420iCDE120,ZZE120,121..UKP200111-200405

15X6JJ,TYPE A:REFER TO ILLUSTRATION

main42611-02440iCDE120,NDE120,ZZE120,121..UKP..(SOL,TSP)200510

16X6JJ,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iCDE120,NDE120,ZZE120,121..UKP200405

TYPE A:REFER TO ILLUSTRATION

main90942-01021×16iCDE120,NDE120,ZZE120,121..UKP..TERRA200405-200510

TYPE C:REFER TO ILLUSTRATION

main90942-01033×16iCDE120,NDE120,ZZE12#..UKP200405

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iCDE120,ZZE12#..UKP200111-200405

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iCDE120,NDE120,ZZE12#..UKP200405

5 parts on this diagram · 4 diagrams in section
