RADIATOR & WATER OUTLET

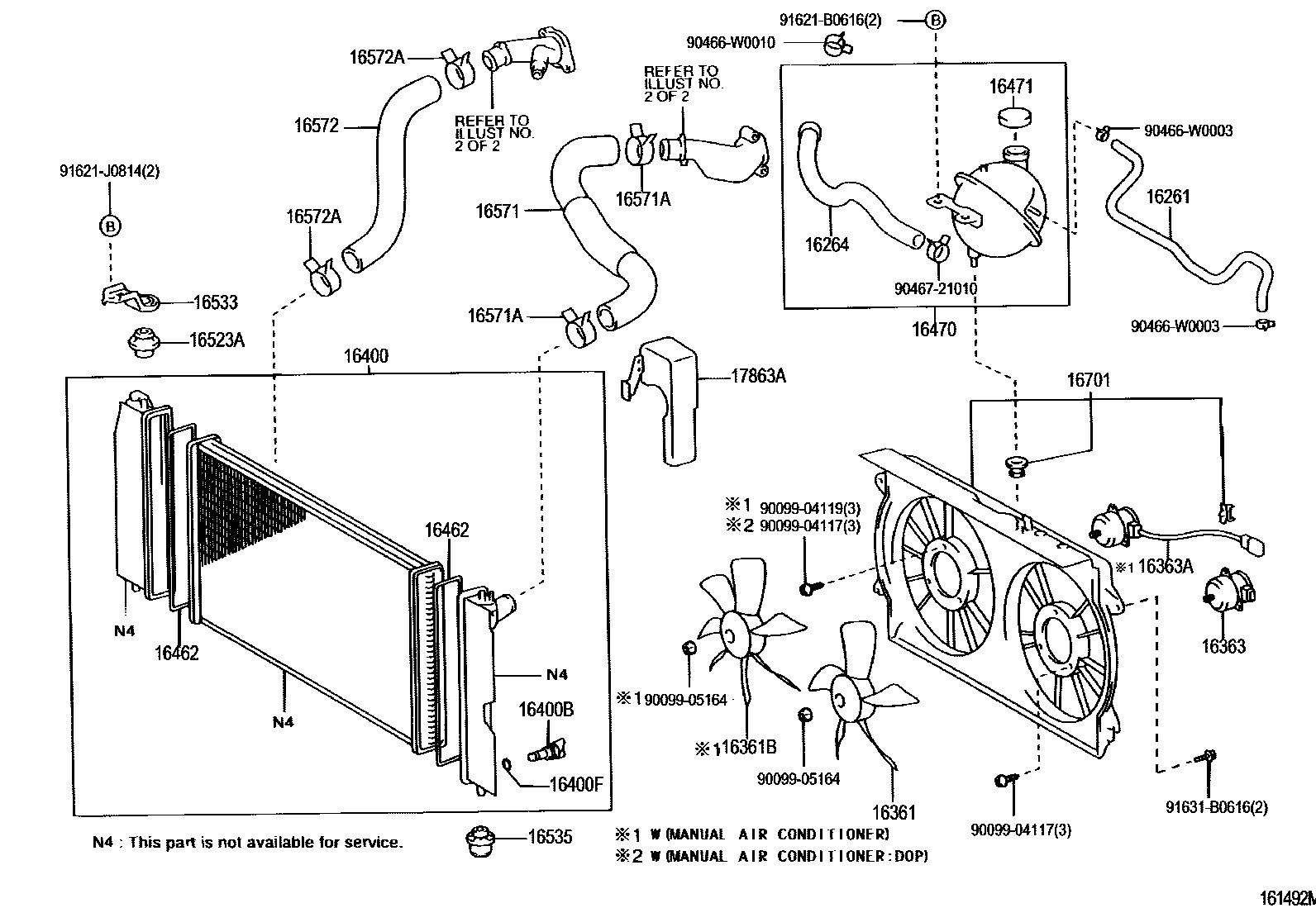

Parts diagram
16261HOSE, WATER BY-PASS
main16261-0D080i200405
(L)
main16261-0D122i200405
(L)
main16261-0G020i200301-200405
main16261-0N020i200408
main16261-22100i200405
(J)
main16261-22142i200405
(J)
main16261-27050i200111-200301
16264HOSE, WATER BY-PASS, NO.2
main16264-0D090i200301-200405
(L)
main16264-0D121i200405-200503
(L)
main16264-0D122i200503
(L)
main16264-0G010i200301-200405
main16264-0N020i200408
main16264-22110i200405
(J)
main16264-22122i200405-200503
(J)
main16264-22123i200503
(J)
main16264-27040i200111-200301
main16264-88601i200405
16361FAN
main16361-0D080i200405
main16361-0G010i200409-200702
main16361-0N020i200408
main16361-21070i200405
ISRAEL SPEC
16361BFAN, NO.2
main16361-0G020i200405-200702
16363MOTOR, COOLING FAN
main16363-0D070i200111-200405
main16363-0D090i200405
main16363-0G020i200301-200304
W(AIR CONDITIONER)
main16363-0G050i200405-200409
main16363-0H030i200405
main16363-0J020i200111-200405
main16363-23030i200111-200301
W(AIR CONDITIONER)
16363AMOTOR, COOLING FAN, NO.2
main16363-0G020i200304-200307
W(AIR CONDITIONER,DEALER OPTION)
main16363-0G060i200301-200405
W(AIR CONDITIONER)
main16363-23030i200301-200304
W(AIR CONDITIONER)
16400RADIATOR ASSY
main16400-0D120i200405
main16400-0D200i200111-200405
main16400-0D210i200111-200405
main16400-0D220i200111-200405
main16400-0G020i200111-200405
main16400-0G030i200111-200405
main16400-0G031i200409
main16400-0N030i200408-200409
main16400-0N031i200409
16400BPLUG, RADIATOR DRAIN COCK
main23322-54010i200405
main90080-34010i200405-200408
16400FPACKING(FOR RADIATOR DRAIN COCK)
main16492-21050i200111-200405
16462RING, O(FOR RADIATOR LOWER TANK)
main16462-21180×2i200405
main16462-6A300×2i200111-200405
16470TANK ASSY, RADIATOR RESERVE
main16470-27040i200111-200301
main16480-0G020i200301-200405
main16480-0N010i200408
16471CAP SUB-ASSY, RESERVE TANK
main16401-53010i200408
main16405-0D040i200405-200407
main16405-0D070i200308-200405
main16405-0D080i200408
main16471-0J010i200111-200308
16523ACUSHION, RADIATOR SUPPORT
main16523-0D020×2i200405
16533SUPPORT, RADIATOR, UPPER
main16533-21020×2i200111-200405
16535SUPPORT, RADIATOR, LOWER
main16535-0D031×2i200111-200405
main16535-27010×2i200408
16571HOSE, RADIATOR, INLET
main16571-0D130i200405
main16571-0D180i200405
main16571-0G010i200304-200402
main16571-0G011i200405
main16571-0N020i200408
main16571-22070i200111-200405
(J)
main16571-27050i200111-200405
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
main90466-41008×2i200204-200304
main90466-W0011i200405
NO.2
main90466-W0012i200405
NO.1
main90467-33006×2i200408
main90467-34004i200111-200405
NO.2
main90467-37005i200111-200405
NO.1
16572HOSE, RADIATOR, OUTLET
main16572-0D110i200301-200405
(L)
main16572-0G010i200301-200405
main16572-0N020i200408
main16572-22070i200111-200405
(J)
main16572-22080i200111-200405
main16572-27040i200111-200301
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
main90466-35001i200111-200405
NO.2
main90466-37002i200111-200405
NO.1
main90466-41008×2i200405
main90466-W0013×2i200405
main90467-33006×2i200408
16701SHROUD SUB-ASSY, FAN
main16711-0D060i200405
main16711-0D180i200308-200405
main16711-0G010i200111-200401
main16711-0G020i200304-200401
main16711-0G040i200401-200405
main16711-0G050i200405
main16711-0N020i200408
17863ASEPARATOR, AIR INTAKE
main17863-27010i200111-200405
9009904117
main90099-04117
9009904119
main90099-04119
9009905164
main90099-05164
90466W0003
main90466-W0003
90466W0010
main90466-W0010
9046721010
main90467-21010
91621B0616
main91621-B0616
91621J0814
main91621-J0814
91631B0616
main91631-B0616

30 parts on this diagram · 14 diagrams in section
