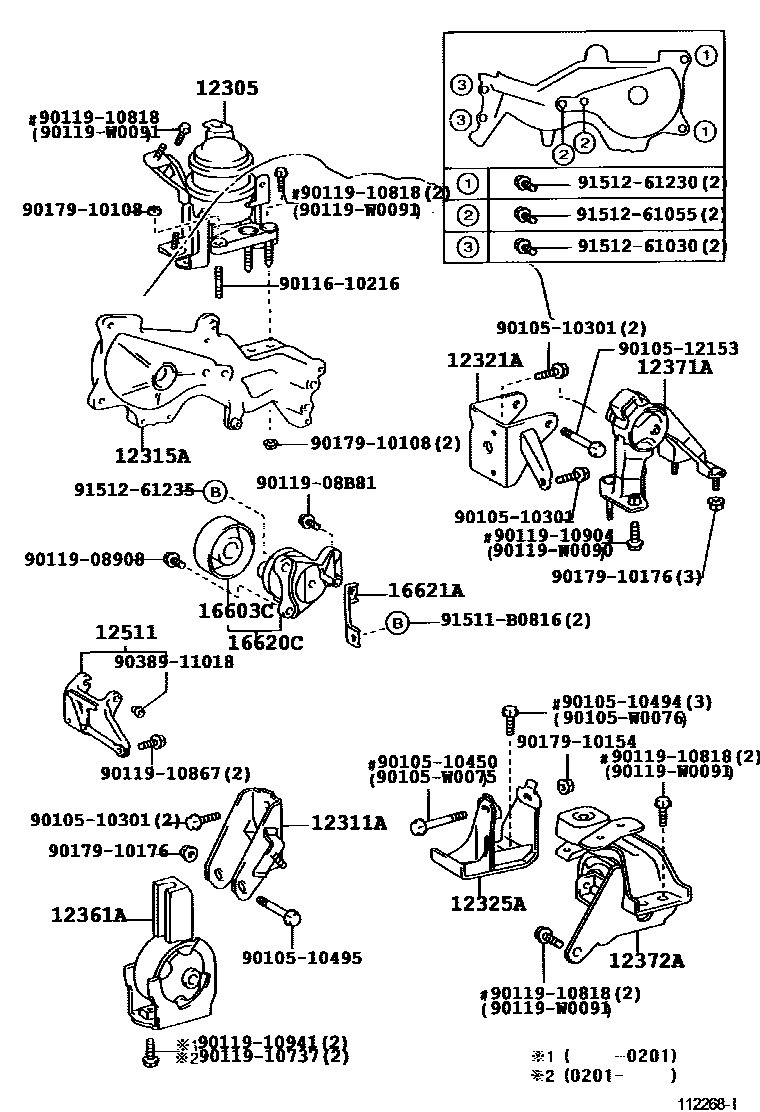

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0D050i3ZZFE,4ZZFE..ZZE120,121..UKP200208-200312

main12305-0D051i3ZZFE,4ZZFE..ZZE120,121..UKP200312-200405

main12305-22150i3ZZFE,4ZZFE..ZZE120,121..UKP200111-200208

main12305-22180i2ZZGE..ZZE123..UKP200111-200312

main12305-22250i2ZZGE..ZZE123..UKP200405

main12305-27020i1CDFTV..CDE120..UKP..(DCR,HDCR)200111-200405

main12305-27050i1CDFTV..CDE120..UKP..DCRL200304-200405

main12305-33060i1NDTV..NDE120..UKP200408

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0D050i3ZZFE,4ZZFE..ZZE120,121..UKP200111-200405

main12311-0D120i1NDTV..NDE120..UKP200408

main12311-0G010i1CDFTV..CDE120..UKP..DCRL200304-200405

main12311-22120i2ZZGE..ZZE123..UKP200111-200405

main12311-27020i1CDFTV..CDE120..UKP..(DCR,HDCR)200111-200405

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0D040i3ZZFE,4ZZFE..ZZE120,121..UKP200111-200405

ENGINE NO.=UXXXXXX-WXXXXXX,(L)

main12315-0D070i3ZZFE,4ZZFE..ZZE120,121..UKP200405

ENGINE NO.=EXXXXXX-FXXXXXX,(L)

main12315-0G010i1CDFTV..CDE120..UKP..DCRL200304-200405

main12315-22050i3ZZFE,4ZZFE..ZZE120,121..UKP200405

(J)

main12315-22070i2ZZGE..ZZE123..UKP200111-200405

main12315-27030i1CDFTV..CDE120..UKP..(DCR,HDCR)200111-200405

main12315-33040i1NDTV..NDE120..UKP200408

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0D150i1NDTV..NDE120..UKP200408-200506

main12321-0D151i1NDTV..NDE120..UKP200507

main12321-0D160i3ZZFE,4ZZFE..ZZE120,121..UKP..5F200405-200506

main12321-0D161i3ZZFE,4ZZFE..ZZE120,121..UKP..5F200507

main12321-0G020i1CDFTV..CDE120..UKP200405-200506

main12321-0G021i1CDFTV..CDE120..UKP200507

main12321-22110i3ZZFE,4ZZFE..ZZE120,121..UKP..5F200111-200208

main12321-22120i3ZZFE..ZZE121..UKP..4FC200405-200506

main12321-22121i3ZZFE..ZZE121..UKP..4FC200507

main12321-22140i2ZZGE..ZZE123..UKP200405

main12321-27030i1CDFTV..CDE120..UKP..(DCR,HDCR)200111-200405

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-33010i1NDTV..NDE120..UKP200408

main12325-0G010i1CDFTV..CDE120..UKP..DCRL200304-200405

main12325-22090i3ZZFE..ZZE121..UKP..5F200111-200405

main12325-22100i3ZZFE..ZZE121..UKP..4FC200405-200702

main12325-22120i2ZZGE..ZZE123..UKP200405-200702

main12325-22270i4ZZFE..ZZE120..UKP200405-200702

main12325-27020i1CDFTV..CDE120..UKP..(DCR,HDCR)200111-200405

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0D070i4ZZFE..ZZE120..UKP200111-200208

main12361-0D080i2ZZGE,3ZZFE..ZZE121,123..UKP..MTM200111-200207

main12361-0D081i2ZZGE,3ZZFE..ZZE121,123..UKP..MTM200207-200301

main12361-0D110i2ZZGE,3ZZFE..ZZE121,123..UKP..MTM200301-200405

main12361-0D120i3ZZFE..ZZE121..UKP..4FC200405

main12361-0D150i4ZZFE..ZZE120..UKP200405

main12361-0G010i1CDFTV..CDE120..UKP..DCR; 1CDFTV..CDE120..UKP..DCRL200304-200405

(L)

main12361-21040i1NDTV..NDE120..UKP200408

main12361-22090i3ZZFE..ZZE121..UKP..4FC200111-200208

main12361-27030i1CDFTV..CDE120..UKP200111-200208

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0D090i2ZZGE,3ZZFE,4ZZFE..ZZE12#..UKP..MTM200111-200405

main12371-22130i3ZZFE..ZZE121..UKP..4FC200405

main12371-27020i1CDFTV..CDE120..UKP200405

main12371-33060i1NDTV..NDE120..UKP200408

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0D080i3ZZFE,4ZZFE..ZZE120,121..UKP..5F200405

main12372-0D090i2ZZGE,3ZZFE..ZZE121,123..UKP..(4FC,6F)200405

main12372-27020i1CDFTV..CDE120..UKP200405

main12372-33020i1NDTV..NDE120..UKP200408

12511BRACKET, ALTERNATOR, NO.1

main12511-0G010i1CDFTV..CDE120..UKP..(DCR,DCRL)200301-200405

(L)

main12511-27010i1CDFTV..CDE120..UKP200405-200603

(J)

main12511-88601i2ZZGE..ZZE123..UKP200405

16603CPULLEY SUB-ASSY, IDLER

main16603-27010i1CDFTV..CDE120..UKP200111-200405

main16603-27011i1CDFTV..CDE120..UKP200405

16620CTENSIONER ASSY, V-RIBBED BELT

main16620-27020i1CDFTV..CDE120..UKP200111-200405

main16620-27021i1CDFTV..CDE120..UKP200405

16621ABRACKET, V-RIBBED BELT TENSIONER

main16621-0G010i1CDFTV..CDE120..UKP200405-200603

(L)

main16621-27010i1CDFTV..CDE120..UKP200603

9010510301

main90105-10301

9010510450

main90105-10450

9010510494

main90105-10494

9010510495

main90105-10495

9010512153

main90105-12153

90105W0075

main90105-W0075

90105W0076

main90105-W0076

9011610216

main90116-10216

9011908908

main90119-08908

9011908B81

main90119-08B81

9011910737

main90119-10737

9011910818

main90119-10818

9011910867

main90119-10867

9011910904

main90119-10904

9011910941

main90119-10941

90119W0090

main90119-W0090

90119W0091

main90119-W0091

9017910108

main90179-10108

9017910154

main90179-10154

9017910176

main90179-10176

9038911018

main90389-11018

91511B0816

main91511-B0816

9151261030

main91512-61030

9151261055

main91512-61055

9151261230

main91512-61230

9151261235

main91512-61235

38 parts on this diagram · 8 diagrams in section
