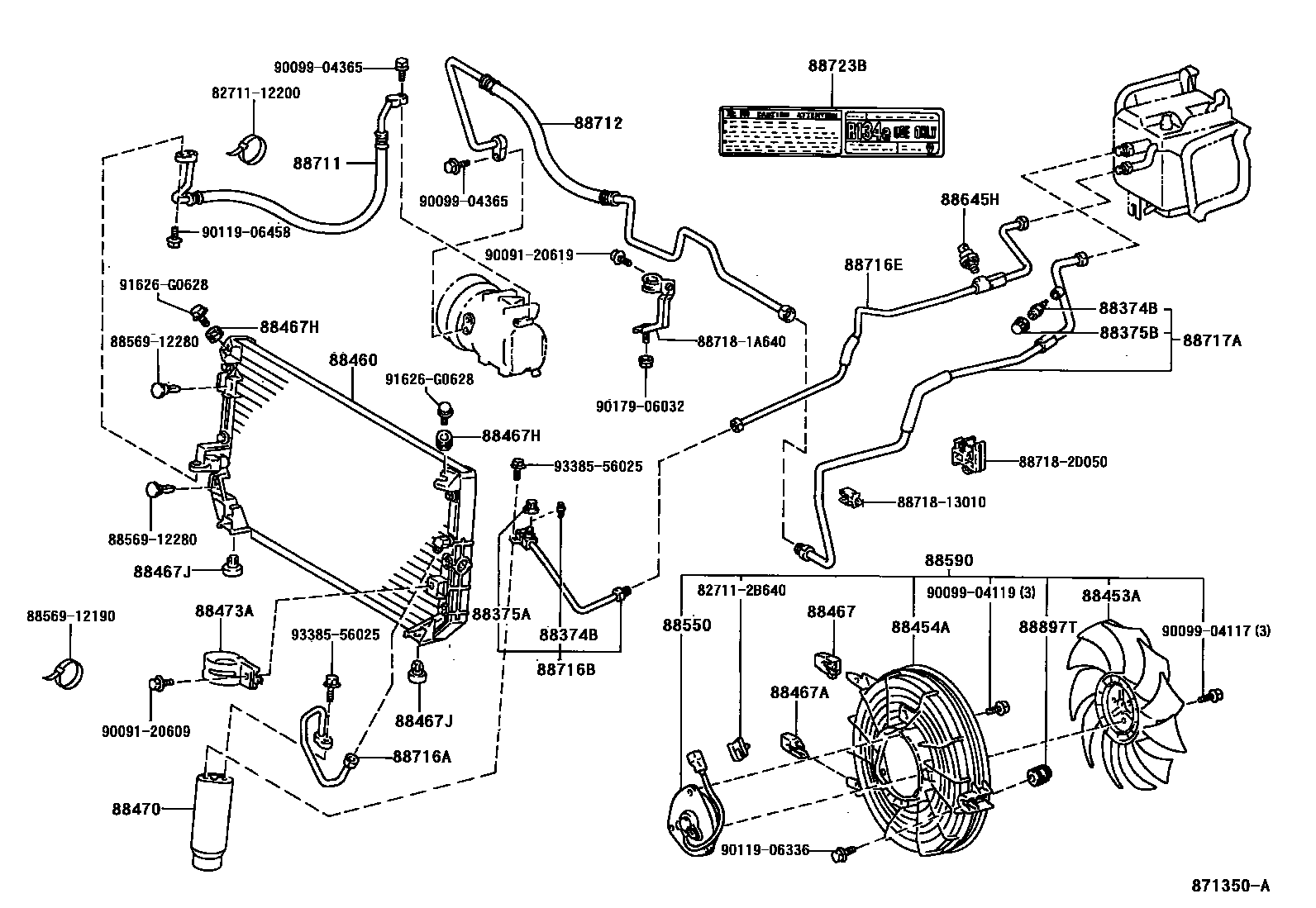

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1DEALER OPTION 0002 1MAKER OPTION 0003 1DEALER OPTION 0004 1MAKER OPTION 0005 1DEALER OPTION 0006 1MAKER OPTION 0007 1DEALER OPTION 0008 1MAKER OPTION 0009 1DEALER OPTION 0010 1MAKER OPTION 0011 1DEALER OPTION 0012 1MAKER OPTION 0013 1DEALER OPTION 0014 1MAKER OPTION 0015 1DEALER OPTION 0016 1MAKER OPTION 0017 1DEALER OPTION 0018 1MAKER OPTION 0019 1DEALER OPTION 0020 1MAKER OPTION 0021 1DEALER OPTION 0022 1MAKER OPTION 0023 1DEALER OPTION 0024 1MAKER OPTION 0025 1DEALER OPTION 0026 1MAKER OPTION 0027 1DEALER OPTION 0028 1MAKER OPTION 0029 1DEALER OPTION 0030 1MAKER OPTION 0031 1DEALER OPTION 0032 1MAKER OPTION 0033 1DEALER OPTION 0034 1MAKER OPTION 0035 1DEALER OPTION 0036 1MAKER OPTION 0037 1O RING

88374BVALVE, SERVICE, NO.1

main88374-30010×2iCDE110,WZE110..JPP;ZZE112..RHD..HB..4FC200001-200109

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

88453FAN, COOLING (FOR CONDENSER)

main16361-74130iCDE110200008-200109

88453AFAN, COOLING

main88453-02040iAE111,EE111..UKP199809-199911

main88453-10021iEE111..JPP;AE111..JPP..(LUNA,TERRA)199704-199910

DEALER OPTION

main88453-10022iWZE110..HB200001-200107

main88453-12070iCE110199704-199910

88454ASHROUD, FAN

main16712-27040iCDE110200008-200109

main88454-02040iAE111,EE111..UKP199809-199911

main88454-12140iCE110199704-199910

main88454-12160iWZE110..HB200001-200107

88460CONDENSER ASSY, COOLER

main88460-02060iWZE110,ZZE11#..UKP199911-200111

main88460-02080iAE111,EE111..UKP199809-199911

DEALER OPTION

main88460-12480iAE111,CE110,EE111..JPP199704-199910

main88460-12530iZZE11#..JPP..LHD;CDE110,WZE110..JPP199910-200109

DEALER OPTION

88467CUSHION, COOLER CONDENSER, NO.1

main88467-02080×2iAE111,EE111..UKP199809-199911

DEALER OPTION

main88467-12130iWZE110..HB200001-200107

main88467-16020×2iWZE110,ZZE11#..UKP199911-200111

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-12100×2iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main88467-12140iWZE110..HB200001-200107

88467HCUSHION, CONDENSER BRACKET, NO.1

main88897-12250×2iCDE110,WZE110,ZZE11#..JPP199910-200109

88467JCUSHION, CONDENSER BRACKET, NO.2

main88467-12100×2iCDE110,WZE110,ZZE11#..JPP199910-200109

88470RECEIVER & DRYER ASSY, COOLER

main88471-60010iAE111,CE110,EE111..JPP199704-199910

88473AHOLDER, RECEIVER

main88473-20070iCDE110,WZE110,ZZE11#..JPP199910-200109

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-27020iCDE110200008-200109

main88550-02040iAE111,EE111..UKP199809-199911

main88550-12130iCE110199704-199910

main88550-12160iAE111,EE111..JPP199704-199910

88590BLOWER ASSY, W/SHROUD

main88590-02050iAE111,EE111,WZE110..UKP199809-200111

main88590-12220iCE110199704-199910

main88590-12250iWZE110..HB200001-200107

88645HSWITCH, PRESSURE NO.1

main88645-20050iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-02060iAE111..UKP199809-199911

main88711-02070iEE111..UKP199809-199911

main88711-02120iZZE11#..UKP199911-200111

main88711-02130iWZE110..LB199912-200111

main88711-1A431iEE111..JPP199704-199910

main88711-1A490iAE111..JPP199704-199910

main88711-1A500iCE110199704-199910

main88711-1A520iWZE110..HB200001-200107

main88711-1A530iZZE11#..JPP199910-200109

main88711-1A560iCDE110200008-200109

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-02050iAE111..UKP..RHD199809-199911

MAKER OPTION

main88712-02060iAE111..UKP..LHD199809-199911

main88712-02070iEE111..UKP..RHD199809-199911

MAKER OPTION

main88712-02080iEE111..UKP..LHD199809-199911

main88712-02110iAE111..UKP..RHD199809-199911

DEALER OPTION

main88712-02120iEE111..UKP..RHD199809-199911

DEALER OPTION

main88712-02130iZZE11#..UKP..RHD199911-200111

main88712-02140iWZE110..RHD..LB199912-200111

main88712-02150iZZE11#..UKP..LHD199911-200111

main88712-02160iWZE110..LHD..LB199912-200111

main88712-1A440iEE111..JPP..RHD199704-199910

main88712-1A460iAE111..JPP..RHD199704-199910

main88712-1A570iCE110..RHD199704-199910

main88712-1A590iEE111..JPP..LHD199704-199910

main88712-1A600iAE111..JPP..LHD199704-199910

main88712-1A620iCE110..LHD199704-199910

main88712-1A630iZZE11#..JPP..RHD199910-200107

main88712-1A640iWZE110..RHD..HB200001-200107

main88712-1A650iZZE11#..JPP..LHD199910-200109

main88712-1A660iWZE110..LHD..HB200001-200107

main88712-1A670iCDE110..LHD200008-200109

main88712-1A730iCDE110..RHD200008-200107

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88715-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main88726-12470iCDE110,WZE110,ZZE11#..JPP199910-200109

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-02090iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main88716-02160iAE111,EE111,ZZE11#..UKP..LHD199809-200111

main88716-02230iWZE110..LHD..LB199912-200111

main88716-1A410iZZE11#..JPP..LHD199910-200109

main88716-1A460iCE110..LHD199704-199910

MAKER OPTION

main88716-1A470iZZE11#..JPP..RHD199910-200107

main88716-1A490iCDE110,WZE110..JPP..RHD200001-200107

main88716-1A580iCDE110,WZE110..JPP..LHD200001-200109

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-02100iAE111,EE111,ZZE11#..UKP..RHD199809-200111

MAKER OPTION

main88716-02120iAE111..UKP..LHD199809-199911

MAKER OPTION

main88716-02130iEE111..UKP..LHD199809-199911

MAKER OPTION

main88716-02170iAE111,EE111,ZZE11#..UKP..RHD199809-200111

DEALER OPTION

main88716-02180iAE111..UKP..LHD199809-199911

DEALER OPTION

main88716-02190iEE111..UKP..LHD199809-199911

DEALER OPTION

main88716-02200iWZE110..RHD..LB199912-200111

MAKER OPTION

main88716-02210iZZE11#..UKP..LHD199911-200111

MAKER OPTION

main88716-02220iWZE110..LHD..LB199912-200111

main88716-02240iZZE11#..UKP..LHD199911-200111

DEALER OPTION

main88716-02250iWZE110..RHD..LB199912-200111

DEALER OPTION

main88716-13010iAE111..JPP..RHD..LB;AE111..RHD..HB..TERRA;EE111..JPP..RHD..3FC..LUNA;EE111..JPP..RHD..(G6,TERRA);EE111..JPP..RHD..LB..5F..LUNA; EE111..RHD..HB..5F..LUNA;AE111..RHD..HB..(G6,LUNA)199704-199910

MAKER OPTION

main88716-1A400iCE110..RHD..TERRA;CE110..RHD..LB..LUNA199704-199910

main88716-1A430iEE111..JPP..LHD199704-199910

main88716-1A440iAE111..JPP..LHD199704-199910

main88716-1A450iCE110..LHD199704-199910

main88716-1A480iAE111,EE111..JPP..RHD199704-199910

DEALER OPTION

main88716-1A500iCE110..RHD199704-199910

DEALER OPTION

main88716-1A540iZZE11#..JPP..RHD199910-200107

MAKER OPTION

main88716-1A550iCDE110,WZE110..JPP..RHD200001-200107

MAKER OPTION

main88716-1A560iZZE11#..JPP..LHD199910-200109

main88716-1A570iWZE110..LHD..HB200001-200107

main88716-1A590iZZE11#..JPP..RHD199910-200107

DEALER OPTION

main88716-1A600iCDE110,WZE110..JPP..RHD200001-200107

DEALER OPTION

main88716-1A630iCDE110..LHD200008-200109

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88717-02120iWZE110..LHD..LB199912-200111

main88717-1A130iWZE110..LHD..HB200001-200107

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-02090iAE111,EE111..UKP..RHD199809-199911

main88717-02100iZZE11#..UKP..RHD199911-200111

main88717-02110iWZE110..RHD..LB199912-200111

main88717-13020iAE111,EE111..JPP..RHD199704-199910

main88717-1A050iCE110..RHD199704-199910

main88717-1A070iEE111..JPP..LHD199704-199910

main88717-1A080iAE111..JPP..LHD199704-199910

main88717-1A090iCE110..LHD199704-199910

main88717-1A100iCDE110,WZE110..JPP..RHD200001-200107

main88717-1A110iZZE11#..JPP..RHD199910-200107

main88717-1A160iCDE110..LHD200008-200109

88723BLABEL, COOLER SERVICE CAUTION

main88723-02060iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

MAKER OPTION

main88723-10030iCDE110,WZE110..JPP;ZZE112..RHD..HB..4FC200001-200109

main88723-12120iAE111,CE110,EE111..JPP199704-199910

88897TGROMMET, COOLER

main88897-12250iWZE110..HB200001-200107

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8856912190CLAMP (FOR COOLER RELAY)

main88569-12190

8856912280CLAMP (FOR COOLER RELAY)

main88569-12280

8871813010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-13010

887181A640PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A640

887182D050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D050

9009120609

main90091-20609

9009120619

main90091-20619

9009904117

main90099-04117

9009904119

main90099-04119

9009904365

main90099-04365

9011906336

main90119-06336

9011906458

main90119-06458

9017906032

main90179-06032

91626G0628

main91626-G0628

9338556025

main93385-56025

42 parts on this diagram · 37 diagrams in section
