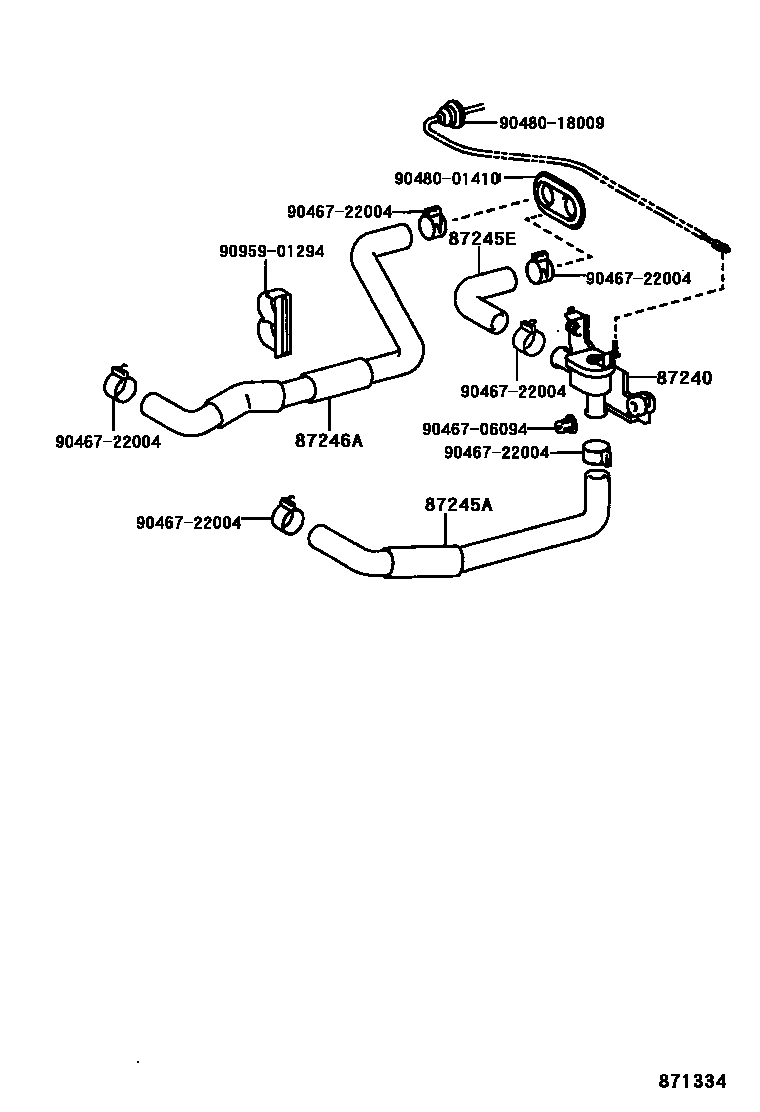

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1W(STOVE HEATER) 0013 1W(STOVE HEATER)

87240VALVE ASSY, HEATER WATER

main87240-02030iAE111,EE111,ZZE11#..UKP..RHD199809-200111

main87240-02040iAE111,EE111,ZZE11#..UKP..LHD199809-200111

main87240-12250iZZE11#..JPP..RHD199910-200107

main87240-12260iAE111,CE110,EE111..JPP..LHD199704-199910

main87240-12270iWZE110..RHD199912-200111

main87240-12290iWZE110..LHD199912-200111

main87240-12310iCDE110..RHD200008-200107

main87240-12320iCDE110..LHD200008-200109

87245AHOSE, HEATER WATER, INLET A

main87245-02110iAE111..UKP..RHD199809-199911

main87245-02130iEE111..UKP..RHD199809-199911

main87245-02170iAE111..UKP..LHD199809-199911

main87245-02190iEE111..UKP..LHD199809-199911

main87245-02250iZZE11#..UKP..RHD199911-200111

main87245-02270iWZE110..RHD..LB199912-200111

main87245-02300iWZE110..LHD..LB199912-200111

main87245-1A542iEE111..JPP..LHD199704-199910

main87245-1A570iAE111..JPP..LHD199704-199910

main87245-1A640iAE111..JPP..RHD199704-199910

main87245-1A680iEE111..JPP..RHD199704-199910

main87245-1A690iCE110..RHD199704-199910

main87245-1A711iCE110..LHD199704-199910

main87245-1A790iZZE11#..JPP..RHD199910-200107

main87245-1A810iWZE110..RHD..HB200001-200107

main87245-1A840iWZE110..LHD..HB200001-200107

main87245-1A860iZZE11#..LHD199910-200111

main87245-1E240iCDE110..RHD200008-200107

main87245-1E250iCDE110..LHD200008-200109

main87245-1E280iCDE110..LHD200008-200109

W(STOVE HEATER)

87245EHOSE, HEATER WATER, INLET E

main87245-02090iAE111,EE111,ZZE11#..UKP..RHD199809-200111

main87245-02100iAE111,EE111..UKP..LHD199809-199908

main87245-1A440iZZE11#..JPP..RHD199910-200107

main87245-1A530iAE111,CE110,EE111..JPP..LHD199704-199908

main87245-1E220iCDE110..RHD200008-200107

main87245-1E230iCDE110..LHD200008-200109

87246AHOSE, HEATER WATER, OUTLET A

main87245-02120iAE111..UKP..RHD199809-199911

main87245-02140iEE111..UKP..RHD199809-199911

main87245-02180iAE111..UKP..LHD199809-199911

main87245-02200iEE111..UKP..LHD199809-199911

main87245-02260iZZE11#..UKP..RHD199911-200111

main87245-02290iZZE11#..UKP..LHD199911-200111

main87245-1A273iEE111..JPP..LHD199704-199910

main87245-1A581iAE111..JPP..LHD199704-199910

main87245-1A601iCE110..LHD199704-199910

main87245-1A630iAE111..JPP..RHD199704-199910

main87245-1A670iEE111..JPP..RHD199704-199910

main87245-1A700iCE110..RHD199704-199910

main87245-1A800iZZE11#..JPP..RHD199910-200107

main87245-1A830iZZE11#..JPP..LHD199910-200109

main87245-1E030iWZE110..RHD199912-200111

main87245-1E040iWZE110..LHD199912-200111

main87245-1E290iCDE110..RHD200008-200107

main87245-1E300iCDE110..LHD200008-200109

9046706094

main90467-06094

9046722004

main90467-22004

9048001410

main90480-01410

9048018009

main90480-18009

9095901294

main90959-01294

9 parts on this diagram · 13 diagrams in section
